New Boom Lift Xgs58 58m Towable Aerial Telescopic Platform Price Selling

Product Description

Product Description

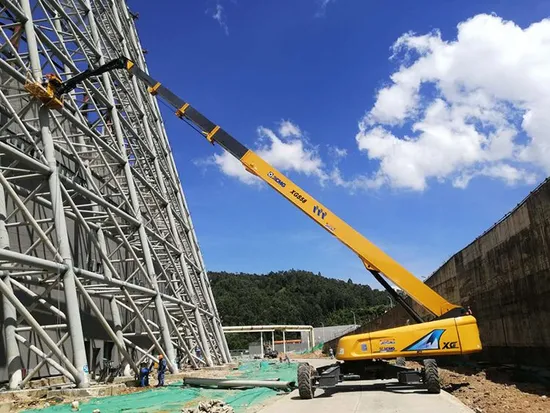

X brand telescopic platform XGS58 height 58.6m, maximum platform carrying capacity 450KG; luffing angle of the boom is as large as 80° for high and extra-high aerial operation; precise operation, flexible telescopic jibs that cross various complicated application structures, including steel structure, buildings of petrochemical engineering, power generation and wind power plant, stadium, conference center and theatre.
Advantages & Highlights:
1.360° turning angle and luffing and telescopic straight crank arm ensure complete operation of surrounding buildings without moving, which improves operation efficiency greatly.
2.X-shaped swinging axle system and 4WD independent swing; large wheelbase could be realized for low-altitude or slope traveling; wide span could be reached for superstructure boom, keeping the support steady.
3.The swinging of crank could shorten the transportation length; crank locking and monitoring, making the work safer.
4.Customized sheet-type proportional valves have the flow curve design according to action features, ensuring the excellent micro manipulation.
5.Dual leveling mode: telescopic boom and work platform, improving the product precision up to within 2.5° and hence making the aerial work safer.

Detailed Photos
Product Parameters

Item	Unit	Parameter
Overall length (Transport status)	m	19.45(14.6)
Overall width (With shaft retracted/extended)	m	2.49/5.03
Overall height	m	3.05
Wheelbase	m	5.22/4.59
Maximum working height	m	58.6
Maximum platform height	m	56.6
Maximum working range	m	25.1
Maximum carrying weight	kg	230 (unrestricted)/450 (restricted)
Luffing range of boom	°	-1 ~ 80
Slewing angle of turntable	°	360°
Maximum tail swing	m	2.32
Dimension of platform	m	2.4×0.9
Slewing angle of platform	°	180
Overall weight	kg	27200
Maximum traveling speed	km/h	4.5
Minimum turning radius (With axle retracted/extended)	m	9.5/6.6 (Four-wheel steering)
Minimum ground clearance	m	0.25
Maximum gradeability	%	45
Specification of tire	-	445/50D710 24-ply
Engine model	-	Deutz TCD3.6 L4
Engine rated power	kW/(r/min)	74.4/2300
