Slant Bed CNC Lathe Metal Machine
Basic Info.
Model NO.
TL500
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Slant Bed CNC Lathe
CNC or Not
CNC
Swing Over Bed
560mm
Max.Processing Length
1000mm
Standard Turning Dia.
280mm
Max. Turning Dia.
400mm
Swing Over Cross Slide
350mm
Spindle Nose
A2-6/A2/8
Spindle Bore Dia.
65/80mm
Max. Bar Capacity
50/66mm
Spindle Speed
50-4500/4000rpm
Spindle Output Max. Torque
235n.M
Chuck Size
8 Inches
Machine Weight
4800kg
X/Z Axis Rapid Traverse
30m/Min
Transport Package
Wooden Cases
Specification
3570*1860*1850mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
356.00cm * 227.00cm * 210.00cm
Package Gross Weight
6000.000kg
Product Description

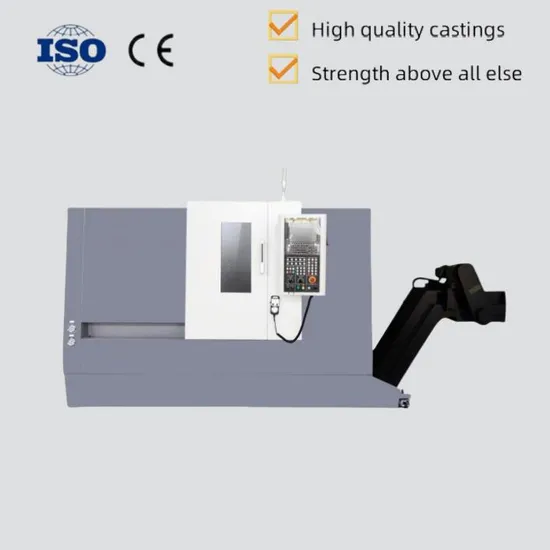

Product PictureSpecification Parameter
| Items | Specification | Unit | TL500 | TL1000 | TL1500 |
| Processing capacity | Swing over bed | mm | Φ720 | Φ720 | Φ720 |
| Max.processing length | mm | 500 | 1000 | 1500 | |
| Standard turning dia. | mm | 500 | 500 | 500 | |
| Max. turning dia. | mm | 630 | 630 | 630 | |
| Swing over cross slide | mm | 500 | 500 | 500 | |
| Spindle | Spindle nose | / | A2-8/A2-11 | A2-8/A2-11 | A2-8/A2-11 |
| Spindle bore dia. | mm | 80/104 | 80/104 | 80/104 | |
| Max. bar capacity | mm | 66/85 | 66/85 | 66/85 | |
| Spindle speed | rpm | 50-3000 | 50-3000 | 50-3000 | |
| Spindle motor (continuous/15min. | kw | 15/18.5 | 15/18.5 | 15/18.5 | |
| Spindle output max. Torque | N.m | 420 | 420 | 420 | |
| Chuck size | Inch | 10 | 10 | 10 | |
| Axis feed | X/Z axis rapid traverse | m/min | 30 | 30 | 30 |
| X/Zaxis travel | mm | 315/570 | 315/1070 | 315/1570 | |
| X/Z axis motor power | kw | 3 | 3 | 3 | |
| Tailstock | Tailstock body travel | mm | 450 | 850 | 1200 |
| Tailstock hole taper | MT5# | MT5# | MT5# | ||
| Tailstock center structure | Live center | small spindle | small spindle | ||
| Turret | Turret type | Servo 12 station turret | Servo 12 station turret | Servo 12 station turret | |
| Tool size | mm | 25*25/Φ40 | 25*25/Φ40 | 25*25/Φ40 | |
| Precision | Processing precision | IT6 | IT6 | IT6 | |
| X/Z axis positioning accuracy | mm | 0.01/0.012 | 0.01/0.015 | 0.01/0.02 | |
| X/Z axis repeatability | mm | 0.005/0.007 | 0.005/0.007 | 0.005/0.013 | |
| Others | Machine weight | kg | 6000 | 7500 | 9500 |
| Machine dimension | mm | 3560*2270*2100 | 4550*2270*2100 | 4700*2270*2200 |
