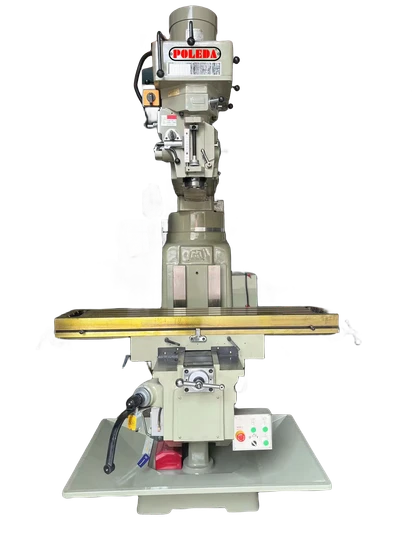

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine with User-Friendly Interface, China

Product Description

Discover the exceptional precision and versatility of our 5M Vertical Metal Turret Milling Machine, proudly manufactured in China. Renowned as the most professional solution in the market, we believe in continuous improvement-there's always room for better performance. Experience unparalleled efficiency with the 5M Vertical Metal Turret Milling Machine, a universal solution for all your milling needs.
Introducing the China Universal Milling Machine, crafted with the utmost professionalism to meet your precise requirements.
Embrace the philosophy of perpetual excellence: there is no best, only better.
Product Description
Product Parameters
Product Introduction
The turret milling machine, also known as the rocker arm milling machine, is renowned for its compact structure and high flexibility. Despite its small size, it boasts a milling head capable of rotating 90 degrees left and right, and 45 degrees front and back. The rocker arm extends and rotates 360 degrees horizontally, significantly enhancing the machine's effective working range.
Composition
Crafted from premium cast iron, the body of the universal radial milling machine guarantees high precision and longevity due to advanced artificial aging treatment. The lifting platform features robust rectangular guide rails with multiple contact surfaces. Post high-frequency treatment and fine grinding, the slides are plastinated for superior motion accuracy and durability. The spindle, made of chrome-molybdenum alloy with precision angular contact bearings, undergoes tempering and fine grinding to ensure formidable cutting force and precision.
Usage
Ideal for lightweight universal metal cutting, the turret milling machine offers both vertical and horizontal milling functions. It excels in milling flat, inclined, groove, and spline surfaces on medium and small parts, making it indispensable in machining, mold creation, and various instrument industries.
Mechanical Characteristics of Turret Milling Machine:
Constructed from m Mihanna cast iron, the machine ensures exceptional rigidity, stability, and resistance to deformation.
The main shaft, forged from chrome-molybdenum alloy and treated with tempering, heat treatment, and grinding, is combined with precision bearings to deliver robust cutting force and impeccable precision.
The milling head gearbox, made of cast iron, offers excellent rigidity, minimal deformation, and enhanced accuracy, ensuring the milling head's durability.
The three-axis screw cap is composed of high-grade phosphorus bronze, providing remarkable wear resistance and a prolonged service life.
Post high-wave heat treatment, the XY shaft slide features superior wear resistance, extending its service life. The XY axis interface, augmented with an imported wear-resistant plate, offers ease of use and durability.
The machine is equipped with a sophisticated lubrication system that ensures an even distribution of oil points for smooth slide operation.
The machine's weight is 100 kg more than its counterparts.
It is powered by a robust 5hp motor and features a high-rigidity and precision NT40 spindle, perfect for large parts and heavy-duty cutting.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
Frequently Asked Questions (FAQ)
1What is the Minimum Order Quantity (MOQ) for your production?
The MOQ depends on your specific requirements for color, logo, and other customizations. For standard items we have in stock, the MOQ is just 1 set.
2How do you ensure the quality of your products?
We place great emphasis on maintaining high quality standards. Our guiding principle is to providecustomers with better quality, competitive pricing, and exceptional service.
3What are the main products of your company?We specialize in a wide range of machines, including: CNC Machine, Lathe Machine, Milling Machine, Grinding Machine, Vertical Machining Center, Drilling Machine, Radial Drilling Machine, Sawing Machine, and more.
4. What are your trade terms?
We accept a variety of trade terms including Ex-works, FOB, CFR, and CIF.
5What are the Payment Terms?We accept T/T payments: 30% initial payment when the order is placed, and 70% balance before shipment.
6What CNC system do you use?
We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
How can I choose the most suitable machines?
Provide us with your product drawings and application details, and we will recommend the most suitable machines for your needs.
What kind of packaging do you offer?
We typically use plywood cases to ensure the goods remain in good condition. Customized packaging options are also available.
9.Can you produce OEM products?
Yes, we can offer both OEM and ODM services for any customer requirements. 10.What is your warranty policy?
Our standard warranty period is one year from the date of delivery. Beyond this period, we offer lifelong service support for our machines.
