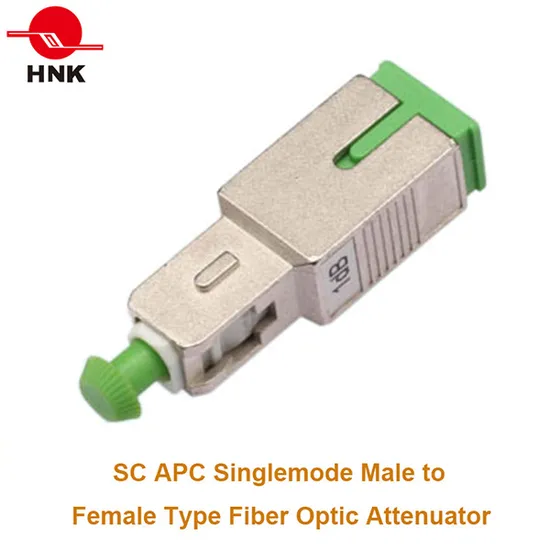

1~30dB Sc/APC Singlemode Male to Female Plug Type Attenuator

Product Description

Fiber Optic Attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing
the wave form itself. The basic types of optical attenuators are fixed and variable, and are designed to be used with
various kinds of fiber optic connectors. The attenuators can be female to female or male to female.
Female to male SC fiber optic attenuator and female to female SC fiber optic attenuator are available. They fit typical
1310nm and 1550nm single mode fiber applications. Attenuation range is from 1dB to 20dB. We supply both SC UPC
fiber optic attenuator and SC APC fiber optic attenuator. The SC fiber optic attenuators operation wavelength range
is 1240nm to 1620nm.
Complied with or exceeds Standard
. Telcorida GR-326-CORE(ferrule end face quality compliant)
. Telecordia GR-910-CORE
. EC 60874-7, F01(JIS C5970) TIA/EIA-604-4A
. TIA/EIA-568B-B.3 Fiber Optic Cabling Components Standard
. EEE802.3z Standards for Fiber Optic Cabling
. RoHS Approved for European Market Requirements
Features
. Precise attenuation level(with 1dB,2dB,3dB... to 30dB, typical 5dB, 10dB 15dB)
. Inline design is easy to use (plugs between existing fiber jumper & equipment)
. Portable, Easy installation, Readily panel mountable
. High Quality Return loss 60db or Greater
. Custom designed specifications
. Dual wavelength (1310nm/1550nm)
. Attenuators marked with attenuation level
Specifications

Characteristics	Unit	Conditions	Values
Attenuation	dB	UPC	1 ~ 30
		APC	1 ~ 20
Return Loss	dB	UPC	≥50
		APC	≥60
Operating Wavelength	nm	-	1310 and 1550, 1240 - 1600
Attenuation Accuracy	-	1 ~ 10dB	± 0.5dB
		11 ~ 30dB	± 10%
Operating Temperature	°C	-	-40 ~ +75
Storage Temperature	°C	-	-40 ~ +85
Polarization Dependent Loss	dB	-	<0.2
Relative Humidity	%	75°C	95

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: XX-AA-(BB)-CDE
Ordering Guide

XX	Attenuator Type	FAT, MAT, OAT
AA	Connector Type (Female or Male )	FP,SP,SA,LP
BB	Connector Type ( Female)	FP,SP,SA,LP
C	Fiber Type	OM1=Multimode 62.5, OM2=Multimode 50, SM=Singlemode
D	Attenuation Value(dB)	01~30dB
E	Material	M=Metal P=plastic

Attenuator Type Code

FAT	Female to Female Attenuator(Adapter Type)
MAT	Male to Female Attenuator
OAT	Adjustable Attenuator

Connector Type Code

FP	FC/PC,FC/UPC	FA	FC/APC
SP	SC/PC, SC/UPC	SA	SC/APC
TP	ST/PC, ST/UPC	TA	ST/APC
LP	LC/PC, LC/UPC	LA	LC/APC
MU	MU	MT	MTRJ
DN	DIN	E2	E2000

Ordering Sample

Part Number	Description
FAT-SP-SM15P	SC/PC Singlemode Plastic Fiber Optic Attenuator, Adapter Type, 15dB.
MAT-SP-SM05M	SC/PC Singlemode Metal Fiber Optic Attenuator, Male to Female, 5dB.
