2025 Bcmc Stone Machinery Italian Esa System CNC Granite Marble Water Jet Cutting 5 Axis Bridge Saw Jet Sawjet for Countertop Italy Machine High Quality

Product Description

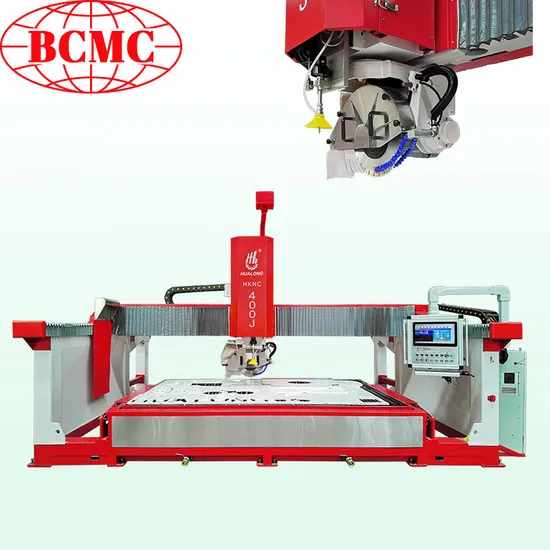

BCNC-400J is a kind of multi-functional stone cutting machine. Combine the CNC 5 axis saw bridge with a 3 axis waterjet together. Easy to dealing different kind of cutting requests and doing the complex processing. Save your time for stone slab moving and extra labor cost. It's efficient to change the cutting from saw blade to waterjet with easy button control. Or to make rough cutting by the saw blade and then waterjet for next step exquisite processing. Utilize the advantage of high speed linear cutting of saw blade and the flexibility of waterjet for curve cutting to make your cutting work much easier.
The CNC machine can be used for cutting stone slabs, countertops, sinks, ceramic parquet and so on. Various materials can be processed: marble, granite, porcelain, lime stone, quartz, glass, steel,plastic etc and other rising new ceramic materials. With accurate and beautiful cutting effect, it will be your great partner.
Main Features:5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time saving costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving etc.
3-axis Waterjet ---this machine is a fully interpolated 3 axis waterjet either
* Automatic precise and fine cutting for
inside-corner or other complex design fabrication.
* super-pressure pump equipped with Siemens or Mitsubishi PLC.Good accuracy after cutting effect.Big human-machine react touchable screen.The working platform can tilt in 85 degree for easy slab loading.The cutting head can rotate in 360 degrees.Able to tilt cutting head for doing the chamfering work.Support manual or automatic cutting. Meet with your demand for better controllable.RTCP tool point tracking function to ensure precise machining.Easy import the CAD sketch file to the machine through the USB port for machining.Camera installed for photographing ensure cutting more precisely and avoid defects.With one machine of sawjet, your are equal to get one cnc bridge saw and one waterjet machine!
Parameters:

Diameter of saw blade	ø350-ø450	mm
Dimension of working platform	4150x2250	mm
X axis stroke	3500	mm
Y axis stroke	2000	mm
Z axis stroke	500	mm
Max. cutting thickness	100	mm
Max. lifting stroke	320	mm
Power of saw blade motor	26.4	kw
Power for abrasive waterjet	37	kw
Max. operating water pressure	450	mpa
Required pressure of inflow	0.4	mpa
Water consumption	11.4-16.7	l/min
Gross weight	10000	kg
Dimensions (L x W x H)	6000x3820x320	mm

Detailed Information For Spare Parts: Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfil full automatic cutting from beginning to end without manual intervention Digital Servo Motor
A permanent magnet servomotor with intergrated drives, well matching with Esa's CNCs, creates a reliable controlling power for X, Y, Z, C and A axes. Photo Slab System(Optional)
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material. Slab Thickness Detector(Optional)System to automatically detect the thickness of the slab. Blade Presetting Unit (optional)Automatically measuring blade diameter and diamond toolVein Matching Function(Optional)
Easily match up each vein and seam of your project
Final Products
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades
