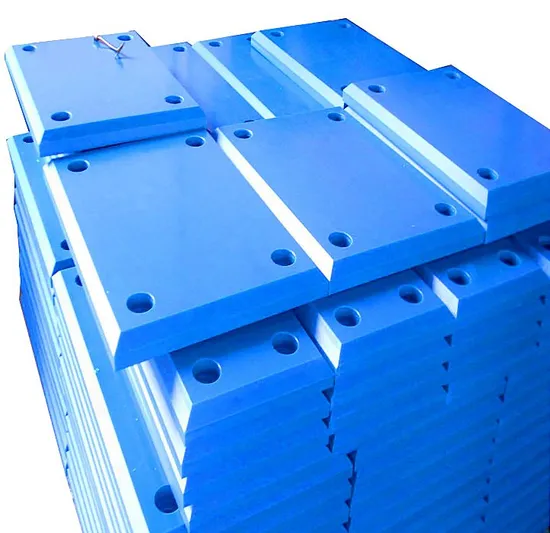

Anti Corrosion UHMWPE Marine Fender Plate HDPE Fender Facing Pad

Product Description

Anti Corrosion UHMWPE Marine Fender Plate HDPE Fender Facing Pad
Product Description
HDPE Fender Facing Pad has wide application in waterway, harbor or dock. HDPE Fender Facing Pad does not rot as the wood,or rust as the steel so that it perform much better. Main Characters of Marine Fender Facing Pad
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption& Vibration-absorption
Product Parameters

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	38
Shore D hardness	--	63-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.2
Kinetic Friction Coefficient	--	≤0.15
Water Absorption	--	<0.01
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melting Temperature	°C	130-140

Wear Resistance of marine fender facing pad
Materials	UHMWPE	PA6	PA66	PTFE	POM	HDPE	Brass
Index No. For slurry abrasion	1	4	5	5	6	10	27

Impact Absorption of marine fender facing pad
Materials	UHMWPE	HDPE	PC	ABS	PA66	POM
Impact	≥140	27	60~100	20~60	60~90	20

Self-lubricating of marine fender facing pad
Materials	Dynamic Friction Coefficient
	Lubrication Free	Water Lubrication	Oil Lubrication
UHMWPE	0.07~0.22	0.05~0.10	0.05~0.08
PA66	0.15~0.40	0.14~0.19	0.06~0.11
POM	0.15~0.35	0.10~0.20	0.05~0.10
PTFE	0.04~0.25	0.04~0.08	0.04~0.08

Main Performances of HDPE Fender Facing Pad
UV resistance, suit to use in outside
High impact resistance, protect the harbor and dock
Excellent abrasion resistance
Low friction coefficient
Waterproof, durable
Working temperature rang from -40ºC to 85ºC
Cheaper than UHMWPE fender facing pad
UHMWPE Fender Facing Board
UHMWPE(Ultra-high Molecular Weight Polythene) fender facing board is harder than HDPE Fender Facing Board. If the port handling capacity is huge, we recommend to choose UHMWPE fender facing board. Compared with HDPE fender facing board, UHMWPE fender facing board is much more stiff and its working temperature rang from -269ºC to 85ºC.
Advantages of UHMWPE Fender Facing Board
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption & Vibration-absorption
