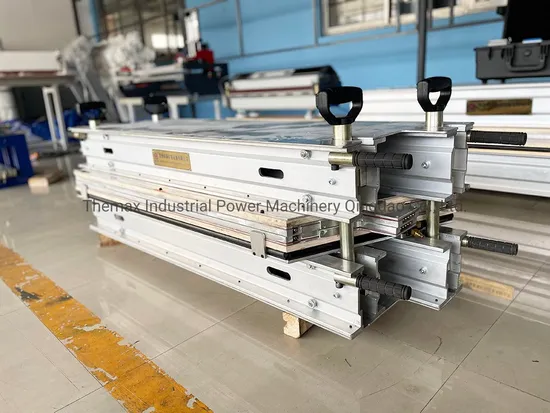

1200mm Lightweight Frame Rubber Conveyor Belt Hot Vulcanizing Press

Product Description

1200mm Lightweight Frame Rubber Conveyor Belt Hot Vulcanizing Press Frame type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Technical data in millimeters correspond to the 16º models, and in inches to the 22º ones. The weight of the lower frame includes the bolts and the pins. The total weight includes the 2 heating platens and the pressure bag.
Model Belt (mm) G1 (mm) G3 (mm) A (mm) B (mm) C (mm) H (mm) Bottom frame weight (Kg) Top frame weight (Kg) Platen weight (Kg) Total weight (Kg)

E-Komp 650x350	650	184	338	780	350	750	364	28.5	22.6	20.1	95.7
E-Komp 800x350	800	194	358	940	350	904	364	33.4	27.2	24.6	114.4
E-Komp 1000x350	1000	204	378	1145	350	1101	364	39.6	33.2	31.4	141.0
E-Komp 1200x350	1200	229	428	1355	350	1303	364	46.2	39.3	35.4	162.9
E-Komp 1400x350	1400	249	468	1560	350	1500	364	56.2	45.2	40.8	190.6
E-Komp 1600x350	1600	274	518	1770	350	1701	364	63.0	51.3	46.3	215.4
E-Komp 650x500	650	189	348	780	500	750	520	38.3	32.3	29.1	134.3
E-Komp 800x500	800	204	378	940	500	904	520	45.2	38.9	35.1	160.9
E-Komp 1000x500	1000	209	388	1145	500	1101	520	49.3	42.2	42.8	185.0
E-Komp 1200x500	1200	244	458	1355	500	1303	520	63.2	56.1	50.6	229.9
E-Komp 1400x500	1400	274	518	1560	500	1500	520	76.1	64.6	58.3	268.1
E-Komp 1600x500	1600	324	618	1770	500	1701	520	85.3	73.3	66.1	303.1
E-Komp 650x600	650	194	358	780	600	750	624	44.8	38.7	35.0	160.0
E-Komp 800x600	800	209	388	940	600	904	624	53.0	46.7	42.2	191.8
E-Komp 1000x600	1000	214	398	1145	600	1101	624	63.3	56.9	51.3	232.4
E-Komp 1200x600	1200	254	478	1355	600	1303	624	74.5	67.3	60.8	274.6
E-Komp 1400x600	1400	284	538	1560	600	1500	624	89.2	77.5	69.9	319.6
E-Komp 1600x600	1600	334	638	1770	600	1701	624	130.5	116.7	79.4	420.7
E-Komp 1000x700	1000	254	478	1145	700	1101	728	77.3	66.4	59.9	274.6
E-Komp 1200x700	1200	284	538	1355	700	1303	728	90.2	78.5	70.9	323.6
E-Komp 1400x700	1400	304	578	1560	700	1500	728	102.6	90.4	81.6	371.4

Two-pieces Type Vulcanizing Press 1200*500 TYPE

Dimensions	Data
Max splice belt width	1200mm
Total power	8.5kw
Net weight	About 300kgs
Equipment Size (L*W*H)	1530mm*600mm*450mm
Overall size (L*W*H)	1600mmx600mmx900mm
Pressure bag size	1350mmx500mmx22mm
Heating platen size	1350mmx500mmx31mm
Bias Degree	22 Degree
Max pressure(P.S.I)	1MPA(10 BARS)
Control box	380V/50HZ/3PH(IF ANOTHER ALSO OK)
