Galvanised Sheet Welding Equipment, Fibre Laser Welding Machine, High Efficiency Precision Welding Machine

Product Description

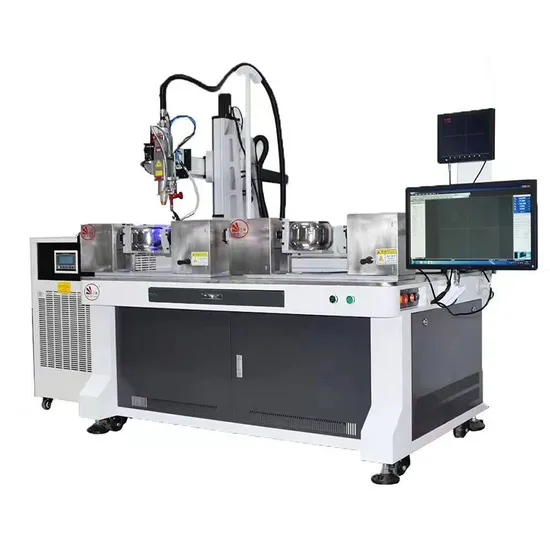

EQUIPMENT PITCURE
SOFTWARE CONTROL
1. Use the mature solution of industrial motion control to integrate laser welding machine and motion control into the PC operating interface of the machine.
2. Easy to program, debug and maintain. Can complete automatic or semi-automatic spot welding, butt welding, overlap welding, sealing welding, for complex plane straight line, arc and arbitrary trajectory welding.
3. Professional laser welding PC motion control system, provide multi-language display (Chinese, English, etc.), international application.
4. The software uses IDE integrated working environment, the main interface integrated graphics editing, operation monitoring, collection programming, motion control in the body, the layout is simple and professional, can effectively improve work efficiency.
5. Real-time control, no need for other PC operating system plug-ins.
6. Can be high-performance motion control of 4 axes, to achieve space welding trajectory teaching programming.
TECHNICAL PARAMETER

Model	3HE-MF1000W	3HE-MF1500W	3HE-MF2000W	3HE-MF3000W
Optical Parameters
Work Model	Continuous/Modulation
Max Power	1000	1500	2000	3000
Wavelength	1080
Repetitive Rate	0-5000		500-5000	0-5000
Output Power Stability	<2%
Red Light	Configured
Output Parameters
Output Connector	QBH(Customizable)
Fiber Core Diameter	25,50,100 Optional			50,100,200 Optional
Power Adjustment	10-100

PRODUCT APPLICATION
1.Sanitary ware industry: water pipe fittings, reducer fittings, three-way valves.
2.Battery industry: laser welding of lithium battery, battery pack and electrode.
3.Glasses industry: stainless steel, titanium alloy and other materials of glasses buckle, frame and other positions of precision welding.
4.Hardware industry: impeller, kettle, water cup, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, shelves, etc.
PRODUCT FEATURES
1. By the welding parts X, Y, Z, D axis for the step drive, to meet the needs of large travel
2. High production efficiency, fast welding speed, automatic mass production
3. Can weld spot, straight line, circle, elliptical machine square and other plane arbitrary track
4. With automatic focusing and rotation functions, you can weld any shape products in 3D space
SAMPLE DISPLAY
OPTIONAL ACCESSORIES
ENTERPRISE REAL SHOOTING
EXHIBITION TIME
CORPORATE HONOR
PATENT CERTIFICATION
PACKAGE AND TRANSPORT
