China Rotary Type Hydraulic Composer for Solid Wood Laminating with Model Mh1362/4

Product Description

Four Sides Rotary Hydraulic Composer for Solid Wood Panel Laminating
1.Introduction: Hydraulic composer is also called edge glued panel press, clamp carrier or solid wood laminating press.
It can be used to laminate kinds of dimension of solid wood panel.
1. 3D software design to make sure machine structure reasonable.
2. Heavy duty structure design---High density braced sheetings as back worktop and pressure from the above and front can prevent the curved angle and make the board glued completely. Help customer save material and costs. (Less sanding and more output).
3. Free adjustment of pressure can meet different length and thickness panel making. Continuous pressure are ensured by pressure-supplement system to guarantee the panel quality and stablity.
2.Parameter:

Model	MH1325/4	MH1346/4	MH1352/4	MH1362/4
Power	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ
Worktops amounts	4 sides	4 sides	4 sides	4 sides
Max. Working thickness	150mm	150mm	150mm	150mm
Max. Working width	1300mm	1300mm	1300mm	1300mm
Max. Working length	2500mm	4600mm	5200mm	6200mm
Top cylinder diameter	Φ80	Φ80	Φ80	Φ80
Top cylinder amounts	6 pcs/side	10 pcs/side	10 pcs/side	12pcs/side
Side cylinder diameter	Φ40	Φ40	Φ40	Φ40
Side cylinder amounts	6 pcs/side	10 pcs/side	10 pcs/side	12pcs/side
Open door cylinder diameter	Φ63	Φ63	Φ63	Φ63
Open door cylinder amount	2 pcs/side	2 pcs/side	2 pcs/side	2 pcs/side
Rated pressure of system	16MPa	16MPa	16MPa	16MPa
Max pressure when fully loaded	12.6kg/ cm2 ( 150mm thickness)	12.6kg/ cm2 ( 150mm thickness)	10.1kg/ cm2 ( 150mm thickness)	10.1kg/ cm2 ( 150mm thickness)
Sectional type	One section	One section	One section	One section
Total power	10Kw	10Kw	10Kw	10Kw
Control type	PLC control	PLC control	PLC control	PLC control
Pressure system	Recovery system	Recovery system	Recovery system	Recovery system
Vertical and Horizontal pressure adjustment	Can be adjusted separately	Can be adjusted separately	Can be adjusted separately	Can be adjusted separately
Pusher	Four sides pusher	Four sides pusher	Four sides pusher	Four sides pusher
Overall dimension (LxWxH mm)	4700x2970x3050	6600x2970x3050	7200x2970x3050	8200x2970x3050

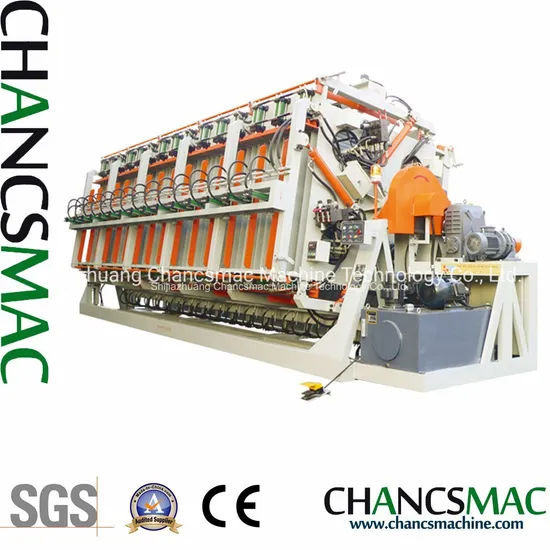

3.Product Show:
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
