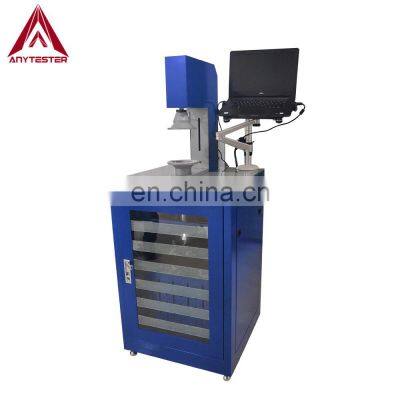

Automated Filter Tester PFE Meltblown Fabric Testing Machine ASTM F2299

Product Description

Product Description
Product Description
AT901 Automated Filter Tester is a universal tester, development according to the standard of GB2626-2006-6.3, EN 149：2009, it mainly used for detecting the efficiency of the particulate respirator filtration and detecting the filtration efficiency and resistance of material.The tester is divided into two categories, oil and salt fog. The oil spray tester is using DEHS as aerosol and the salt spray tester using NaCl, the solution spray after Ruskin nozzle and drying, then form in to aerosol. The system adopts precision instrument to control flow and concentration, and through integrate of system to communicate with computer, the system has good stability, and it is easy to operate.By detecting the concentration of upstream and downstream, and then calculate the results through the formula. Airflow can be real-time monitored through electric proportional valve and flow meter, to ensure the accuracy of the test flow and the stability. The aerosol concentration can be monitored by electrical proportional valve and differential gauge, and provide stable test particles.The filtering material tester is a fully automatic instrument which can control the following actions by a computer:▲It can feedback control and read all of the working parameters automatically: including the volume, the resistance, and the efficiency.▲ Measuring the particle number and the resistance of sample in a test period.▲The data stored in D: D:Eff(NaCl)-data, Or. D: Eff(Oil)-data▲Showing operating parameters.▲The system makes use of serial communication to initiating a transfer of the data files.
Machine Structure:
Standard

EN143	GB2626-200
NIOSH 42 CFR 84	JMOL
Note: For more standards, please contact us

Specification

Model	AT901
Detector	Laser aerosol particle counter
Air volume	(20〜100) L/min
Efficiency testing range	10%-99.999%
Test time	≤60S
Aerosol	Salt, DOP, DEHS, Paroline, Corn oil, optional
Counting median diameter	0.075±0.02μm (salt)
	0.185±0.02μm(oil)
Resistance	0-2000Pa
Measuring range	0.3~1μm
Aerosol density	(50〜200) mg/m3(oil); (12〜20)mg/m3(salt)
Detector	Laser aerosol particle counter
OPC self-purification time	≤10 mins
OPC flow rate accuracy	±5%
OPC repeatability	≤10% F.S
OPC particle size distribution deviation	± 30%
OPC particle density deviation	± 30% F.S
Pressure detect	Digital pressure sensor (pressure difference transmitter)
Pressure detect range	(0~0.88)MPa
The absolute pressure of working gas	6-9kgf/cm2
Pressure detect accuracy	Grade 2.5
Operation display	Laptop
The environment temperature	5-35℃
The environment humidity	0-90%RH
Power supply	200~235V, 50Hz
Dimension	950mm × 600mm ×600mm

Details & Features
Multifunction
1. This machine can be used for different filter material
2. Customized clamp for different sample size is available
3. Both salt solution and oil solution test can run on this machine
High Accuracy
1. Adopted high quality Laser aerosol particle counter 2. Equipped with oil water separator to avoid water effect test result
3. Test date accuracy reach to 0.001%
Software
1. Support Chinese and English, menu type operating mode and large LCD display, it’s easy to switch2. Two test method available: efficient test and load test
3. Simple, fast and automate operation
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
