Basic Info.
Function
Timer Switch, Set Time Reminder
Specification
1.0~4.0kg f-cm
Production Capacity
10000 Pieces Per Mont
Product Description
Product Description

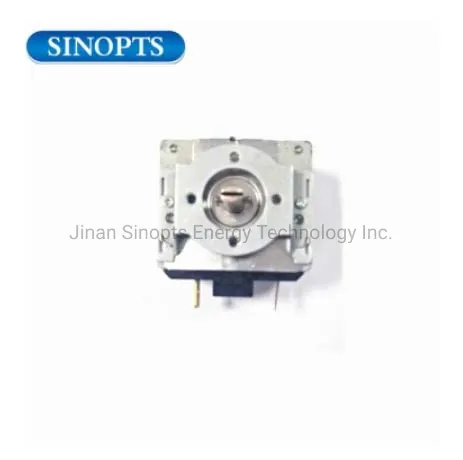

Sinopts Restaurant Electric pressure cooker oven rice cooker 90 minutes timer with bell Specifications and features
1. When the timer stops running, the system will cut off the power and stop the control system.
2. Single current system, on/off.
3, precision production makes the product's operating error is almost zero, and high temperature resistance.
4. When the prompt sounds, it means the timer stops running. (system closed)
1-180 minutes oven timer passed UL, TUV certification, suitable for kitchen appliances such as rice cooker / oven, electric
steamer Product manual
Time setting range | 15', 20', 30', 60', 120', 180' or custom |
Applicable | microwave / oven / electric pressure cooker / other kitchen machine |
Contact capacity | AC 120V 15A; AC 250V 15A |
Time setting direction | Continuous |
Working direction | Counterclockwise. |
Operating temperature range | -10 ° C --- C + 120 ° |
Working angle | 270 ° ± 5 ° / 285 ° ± 5 ° / 315 ° ± 5 ° or custom |
Insulation resistance | 1500V / 1min; 1800V / sec (DC 500V megohmmeter) |
Withstand voltage | 1 minute minute ac1800v / 0.5A |
Life | >=10000 times, 6 times/min. |
Operation | <0.4N.m |
Shaft shank | Horizontal pin or flat shaft or custom |
Operating torque | 1.0---4.0kg.f-cm |
Loosen torque | 1.0---4.0kg.f-cm |
Time tolerance | ±4% (270°)---±5% |
Packing Photo
Our Company
Why Choose Us
FAQ
Q1: DO YOU PROVIDE SAMPLES ?
A: Yes.Samples can be made as customer request. Q2: WHAT'S YOUR DELIVERY WAY?
A:By sea, by air, by courier...according to per request. Q3: HOW CAN I PAY?
A: T/T, PAYPAL,WESTERN UNION,MONEYGRAM,ALIPAY.
