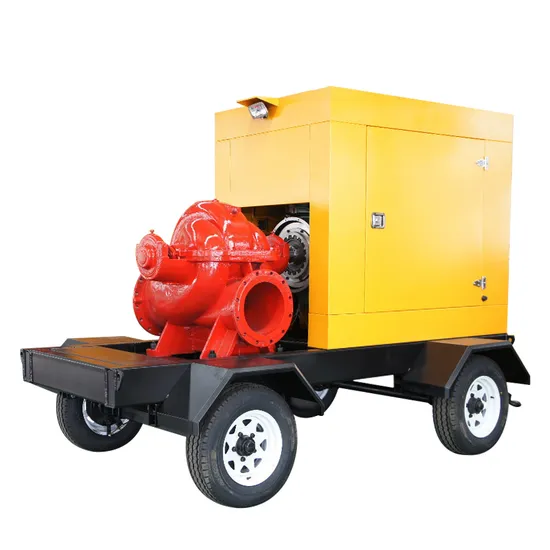

3000 Gpm High Capacity Diesel Engine Flood Water Pump

3000 Gpm High Capacity Diesel Engine Flood Water Pump

US$27,859.00 1 Set (MOQ)

Basic Info.

Model NO.
TPOW
Max.Head
80-110m
Max.Capacity
10000m3/H
Driving Type
Diesel Engine
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Double-Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump
Color
Blue/Red/Black,etc.
Sealing Type
Packing Seal or Mechanical Seal
Voltage
220V/380V/400V/415V/460V
Material
Cast Iron/SS304/SS316
Usages
Fire/Chemical/Flood/Irrigation,etc.
Working Temperature
Below 120 Deg.C
Pump Spare Parts
Pump Casing, Impeller, Seal, Coupling, Bearing
Trailer
2 or 4 Wheels Trailer
Speed
1450/1750/2900/3500rpm
Transport Package
Exporting Plywood Case
Specification
CE, ISO
Trademark
DEFU
Origin
China
HS Code
8413709990
Production Capacity
10000PCS/Year

Packaging & Delivery

Package Size
3.80cm * 1.30cm * 1.70cm
Package Gross Weight
2589.000kg

Product Description

1.Product Description
TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.
2.Pump Technical Parameters
1.Flow:0-36000m3/h;
2.Head:0-220m;
3.Power:7.5-355kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-150°C.
3.Partial Models Specifications (More Information Pls Feel Free To Contact Us)
Pump
Model		 Capacity Head
(m)		 Speed
(r/min)		 Power Efficiency
(%)		 NPSHr
(m)		 Impeller's
Dia(mm)		 Net Pump
Weight(kg)
m3/h L/S Shaft
Power
(kw)		 Motor
Power
(kw)
TPOW80-220 17 4.7 16 1480 1.9 4 39 1.7 215 181
66.5 18.5 12.8 2.9 81
108 30 7.8 3.3 69
TPOW80-220A 16 4.4 13.9 1.6 3 38 200
71 17 10.8 2.6 80
98 27.2 7 2.7 68
TPOW80-220B 15 4.2 11.8 1.3 3 36 185
55 15.5 9 1.7 78
85 23.6 6.2 2.2 66
TPOW80-220C 14.5 4 10 1.2 2.2 32 170
57 14.3 7.6 1.6 74
72 20 6.1 1.9 62
TPOW80-220 60 16.6 58 2950 24.3 37 39 3.5 215 181
134.5 37.4 51 23.1 81
162 45 46 29.4 69
TPOW80-220A 58 16.1 49 20.4 30 38 200
124.2 34.5 43.5 18.4 80
144 40 39 22.5 68
TPOW80-220B 57 15.8 41 17.6 22 36.2 185
113 31.4 36 14.2 78.2
129.6 36 33 17.6 66.2
TPOW80-220C 55 15.2 35 16.4 18.5 32 170
105 29.2 31 12 74
126 35 28 15.5 62

4.Pump Features
5.Applications(Show from Our Clients)
6.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
