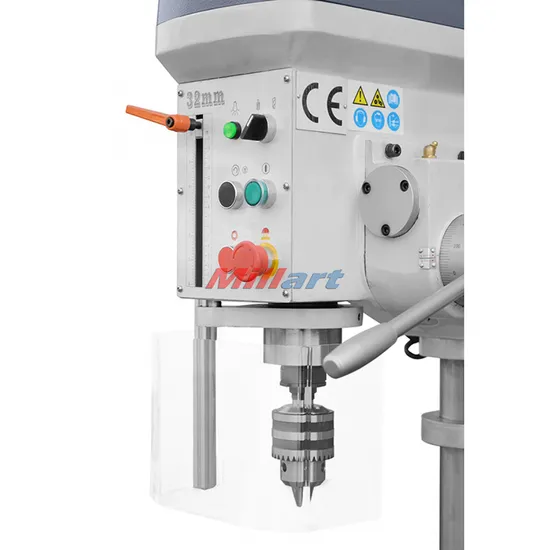

Vertical Drill Machine (ZB4120G) Drill Press Machine

Product Description

Vertical Drill Machine(ZB4120G)Drill Press Machine
Features:
Spindle auto feed with variable feeding rate
High spindle rigidity
Threading by automatic switching of the left turns
The spindle head, column, table and column base made of the highest quality of seasoned castings
Spindle and transmission shafts of hardened and heat treated steel
Built-in led lamp
High engine power
A large spindle stroke
Readable control panel
Working table manually lifted with 360 rotation and assembly grooves
Belt transmission cover equipped with an extreme safety switch
Adjustable drill chuck with key and mounting on the Morse taper
SpecificationSpindle auto feed with variable feeding rate
High spindle rigidity
Threading by automatic switching of the left turns
The spindle head, column, table and column base made of the highest quality of seasoned castings
Spindle and transmission shafts of hardened and heat treated steel
Built-in led lamp
High engine power
A large spindle stroke
Readable control panel
Working table manually lifted with 360 rotation and assembly grooves
Belt transmission cover equipped with an extreme safety switch
Adjustable drill chuck with key and mounting on the Morse taper
Technical parameter:

Model	ZB4120G
Max.Drilling capacity	20mm
Max.Tapping capacity	M12
Diameter of column	70mm
Spindle travel	100mm
Spindle feed rate	20-204mm/min
Distance spindle axis to column	193 mm
Max.Distance spindle nose to table	330 mm
Max.Distance spindle nose to base	613 mm
Spindle Taper	MT2
No. of Speeds	480~4100 rpm
Spindle speeds range	5 steps
Dimension of workable surface	265x285 mm
Dimension of base	360x480 mm
Overall height	1130 mm
Main motor	0.75 kw
millart.en.made-in-china.com weight	145 kg
Packing size	85x54x128 cm

Standard accessories:
Work lamp
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
