High Temp Kynar Heat Shrink Tube PVDF Heat Shrink Tube

Product Description

Product Description

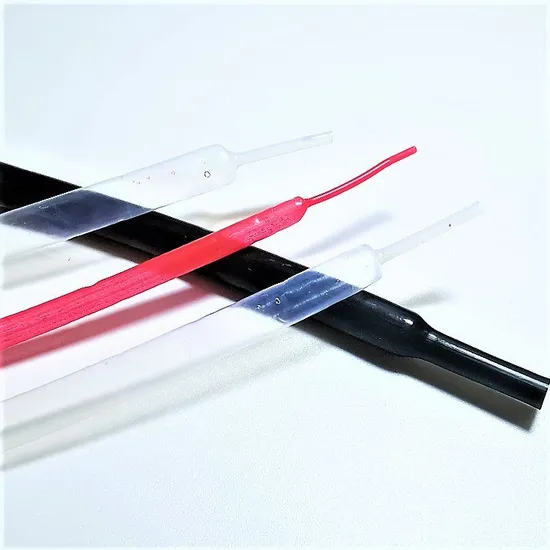

W-SPVDF 150C PVDF Kynar Heat Shrinkable Tubing
W-SPVDF 150C PVDF Kynar Heat Shrinkable TubingShanghai Wellco International Limited presents the W-SPVDF 150C PVDF Kynar Heat Shrinkable Tubing, a high-quality solution for various applications.
Product Specifications:
Materials: Polyvinylidene fluoride
Operating temperature range: -55ºC to 150ºC
Shrink temperature: above 155ºC
Shrink ratio: 2:1
Color options: Clear, Black, Red, Blue, Yellow, etc.
Features:
Transparent
High-temperature resistance
Flame retarding
Flexibility
Wear ability
Corrosion resistance
Applications:The W-SPVDF 150C PVDF Kynar Heat Shrinkable Tubing is widely used in instrumental wiring of vehicles, aviation, watercraft, and electronic equipment. Its good transparency makes it ideal for identifying packaged and non-packaged electronic devices.
Choose the W-SPVDF 150C PVDF Kynar Heat Shrinkable Tubing for reliable performance and durability.

Items	Performance Indicators	Typical Value
Tensile strength	ASTM D2671	>=24.5MPa
Elongation at break after aging	225ºC x 168 hrs	>=100%
Thermal shock	275ºC x 4 hrs no cracks	pass
Low temperature impact	-55ºC x 4 hrs no cracks	pass
Insulation Breakdown voltage	ASTM D2671	>=15Kv/mm
Volume resistivity	ASTM D257
flame retarding	VW-1	pass

Size	As supplied		After shrinked		Packaged Length
mm	ID(mm)	Wall Thickness/Tmm	ID/dmm	Wall Thickness /tmm	M
1.201.602.403.204.806.409.5012.719.125.438.1	>=1.20>=1.60>=2.40>=3.20>=4.80>=6.40>=9.50>=12.70>=19.10>=25.40>=38.1	0.13 ± 0.050.13 ± 0.050.13 ± 0.050.13 ± 0.050.13 ± 0.050.18 ± 0.050.18 ± 0.050.18 ± 0.050.25 ± 0.080.25 ± 0.080.25 ± 0.08	<=0.60<=0.80<=1.20<=1.60<=2.40<=3.20<=4.80<=6.40<=9.50<=12.70<=19.1	0.25 ± 0.050.25 ± 0.050.25 ± 0.050.25 ± 0.050.25 ± 0.050.33 ± 0.050.33 ± 0.050.33 ± 0.050.43 ± 0.080.48 ± 0.080.48 ± 0.08	200200200200100100100100505050
