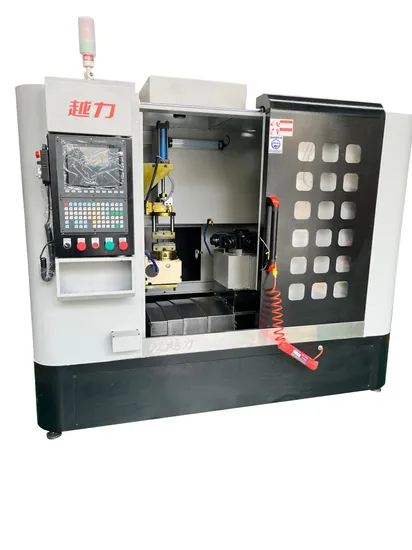

High Precision 8 Axis Horizontal Turret CNC Machine

Product Description

High Precision 8 Axis Horizontal Turret CNC Machine
I.Equipment description and pictures1.Turret type power head, ER40 connection method, with 5.5 spindle servo.It can be used for heavy cutting.
2.Three-axis high-speed displacement of 48m/min, fast speed, saving processing time.
3.Low inertia spindle design, high stability.
4.The tool change time is 0.5 seconds, and it is equipped with a cam fourth axis, which can process parts on different planes. II.Technical Parameter

No.	Name	Unit	Specification (mm)	Remark
1	Max stroke of X axis	mm	450
2	Max travel of Y axis	mm	500
3	Max travel of Z axis	mm	300
5	Fast moving speed of X/Y/Z	m/min	48
6	Repeatability positioning accuracy of X/Y/Z	mm	0.008
7	Rotary Turret	axis	8/12
8	Servo spindle motor power	KW	5.5
9	Spindle revolutions	rpm	0-3000
10	Spindle interface		ER40
11	Drilling capacity(copper) through hole	mm	Ф60
12	Max tapping(Copper)	mm	50X3
13	Spindle turret tool change time		0.8S/180°
14	Tool change servo motor	W	750
15	Work surface size mm		300*300
16	Rotate the fourth axis		YT200R
17	Dimension:LxWxH	MM*MM*MM	2300×1600X1900
18	Net weight		3500KG

III.Production workshopIV.Package and Loading
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.
