Z3050X11B Radial Drilling Machine Lower Price
Basic Info.
Model NO.
Z3050X11B
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling dia(mm)
50
Distance from spindle nose to table surf
260-1150
Spindle travel
270mm
Spinde speeds range
35,60,105,170,290,395,540,710,1310 rpm
Spinde speed step
9 steps
Rocker rotary angle
180°
Shipping terms
180°
Transport Package
Plyood Case
Specification
1550*705*2250
Trademark
LUZHONG
Origin
China
Production Capacity
2000 Pieces/Year
Product Description
High quality Z3050X11B Radial Drilling MachineProduct Description
Product Parameters
Product main technical parameters:
| Specification | Z3050X11B |
| Max.drilling dia(mm) | 50 |
| Distance from spindle nose to table surface(mm) | 260-1150 |
| Distance between spindle axis and column surface(mm) | 360-1050 |
| Spindle travel (mm) | 270 |
| Spindle Cone | 5 |
| Spinde speeds range(r.p.m) | 35,60,105,170,290,395,540,710,1310 |
| Spinde speed step | 9 |
| Spinde feeding range(r.p.m) | 0.10,0.16,0.22,0.25,0.35,0.56 |
| Spinde feeding step | 6 |
| Rocker rotary angle | ±90° |
| Main motor power(KW) | 4 |
| Maximum resistance to the spindle (N) | 16000 |
| Movements motor power(KW) | 1.5 |
| N.W/G.W(Kg) | 1700 |
| Overall dimensions(mm) | 1550×705×2250 |

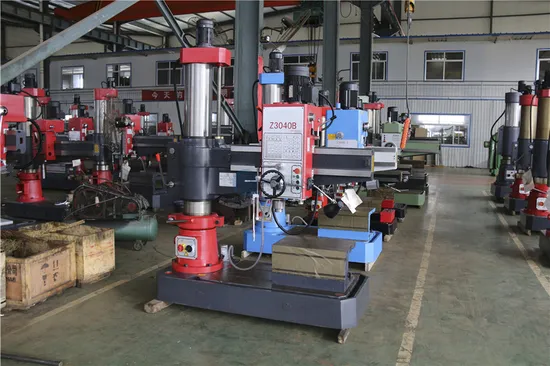

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
