Lansheng 10ton 15ton Loading Container Ramp Forklift Ramp Mobile Dock Ramp Yard Ramp

Product Description

Product description:

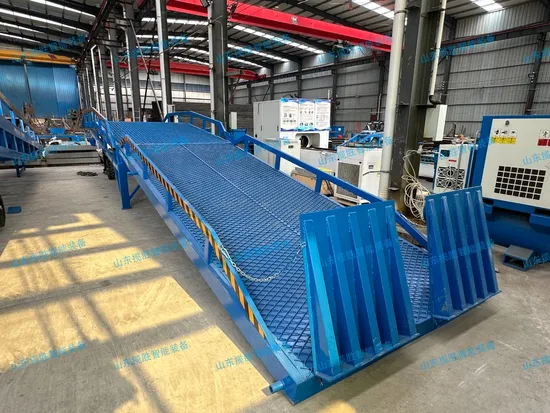

The movable loading ramp is the auxiliary equipment for loading and unloading goods which is used in conjunction with the forklift truck. The height can be adjusted according to the height of the carriage. The forklift truck can load and unload goods directly into the carriage by the equipment. It only needs one person to complete the task. Quick loading and unloading of goods. So that enterprises reduce labor force, improve work efficiency, obtain greater economic benefits. The surface adopts special diamond-shaped net plate, which has reliable strength and can ensure long-term use without deformation. The Rhombus Network ensures excellent skid resistance and provides better classification and Operability for forklifts. Even in the rain and snow weather, can still guarantee the normal use.
Loading and unloading platform in modern logistics site has been a very visible form of structure. It is the beginning and end of the enterprise logistics chain, is the enterprise fast, safe turnover products and goods of a loading and unloading operation platform. The height of loading and unloading platform is fixed, but the height of carriage is different. There is always a certain height drop or gap between transportation vehicle and loading and unloading platform. The forklift truck can not enter or leave the transport vehicle to load or unload the goods directly. Use the boarding bridge to provide reliable connections. The utility model enables the forklift trucks to safely and quickly enter and exit the transport vehicles for loading and unloading goods

Size(t)	Overallsize(mm)	Soild tyre	Oil cylinder	Adjust the range(mm)
8	11400*2410*1100	600-9	Φ80*Φ50	1100*1800
10	11400*2410*1100	600-9	Φ80*Φ50	1100*1800
12	11400*2410*1100	600-9	Φ80*Φ50	1100*1800
15	11400*2410*1100	600-9	Φ80*Φ50	1100*1800

Use scenarios
Product characteristics
1.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
2.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation
safety. The different height to vehicles, suitable for height adjustment of vehicles
3.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
4.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
5.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the
characteristics of large carrying capacity.
7. Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
8.Safety crack-proof valve
Our Services: 1.Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for
construction equipment and the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance
of whole machine's maintenance and reparations.
4. Quick responses:
we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
FAQ
1.How long will you make it?
Within 7-15 working days after we get your payment.
2.What kind of payment do you support?
T/T,L/C,it has different term of payment,other kinds,please contact us.
3.What is the MOQ?
Generally speaking,the MOQ is 1 set.Different products have different MOQ.More quality,better price.Please contact with us.
4.What is the application filed for it?
Construction,shipyard,industrial,airport,municipal garden or other places.
5.What kind of the trade term will you accept?
FOB/CIF to your nearest seaport.
