220V High Power Adapter Supply Switching Supply Transformer Power Bank Battery Inverter

Product Description

Product Description

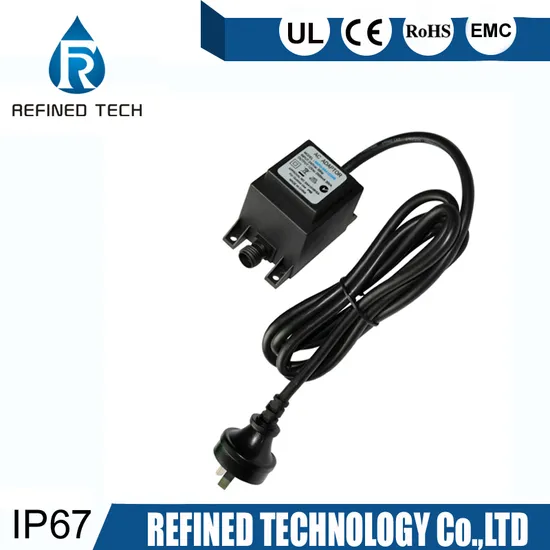

Name : 100W 300W Guardrail Waterproof Transformer
10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting
Specification :

Model	Power	Input Voltage(V)	Output Voltage(V)/A
RCO-10W	10W	110-120VAC 230-240VAC 50/60Hz	12VAC 0.83A/ 24VAC 0.42A
RCO-15W	15W		12VAC 1.25A/ 24VAC 0.62A
RCO-20W	20W		12VAC 1.66A/ 24VAC 0.83A
RCO-25W	25W		12VAC 2A/ 24VAC 1A
RCO-30W	30W		12VAC 2.5A/ 24VAC 1.25A
RCO-40W	40W		12VAC 3.33A/ 24VAC 1.66A
RCO-45W	45W		12VAC 3.75A/ 24VAC 1.87A
RCO-50W	50W		12VAC 4.16A/ 24VAC 2.08A
RCO-60W	60W		12VAC 5A/ 24VAC 2.5A
RCO-70W	70W		12VAC 5.83A/ 24VAC 2.91A
RCO-80W	80W		12VAC 6.66A/ 24VAC 3.33A
RCO-85W	85W		12VAC 7A/ 24VAC 3.5A
RCO-100W	100W		12VAC 8.3A/ 24VAC 4.16A
RCO-120W	120W		12VAC 10A/ 24VAC 5A
RCO-150W	150W		12VAC 12.5A/ 24VAC 6.25A
RCO-200W	200W		12VAC 16.66A/ 24VAC 8.33A
RCO-250W	250W		12VAC 20.83A/ 24VAC 10.42A
RCO-300W	300W		12VAC 25A/ 24VAC 12.5A
RCO-350W	350W		12VAC 29.16A/ 24VAC 14.58A

1).WORKING AND SAFETY PROTEETION
Electrostatic Shield Magnetic Shield
Temperature Protection Over Current Protection
2).INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown
Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)
3).TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.
4).MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:10VA-350VA

6) Waterproof toroidal Transformer's materials:
* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP
Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance

Applications: Garden light
Swimming pool
LED underwater lamp
LED Ground light
Outdoor power Supply
Humidifier

Certifications
Packaging & Shipping
Company Profile COMPANY PROFILE
REFINED TECH
REFINED TECHNOLOGY CO.,LTD
SHENZHEN REFINED TECHNOLOGY CO.,LTD
Refined Technology Co.,Limited was founded on May,2009, located at the optoelectronic base of Shenzhen,China and professionally engaged in outdoor LED lighting,covering LED Pool light,LED underwater Light,LED inground Light etc.The main market is United States,France, Spain,Morroco,Egypt, Australia,Greece,etc. With first-class quality and competitive prices.Our target market is Medium and high class marksts and seek for long term cooperation with our unique molds.
Ample funds, high technique, stable quality and excellent service guarantee us to offer clients the most stable and cost-effective products. Such as Resin filled & super thin LED
swimming pool lights that can be used for concrete pool, liner pool, fiber glass pool, panel pools, etc. And LED underwater spotlights,fountain lights that can be used for underwater lighting.
All of our products have CE RoHS LVD EMC IP68 certificates, and are produiced under strict quality control system, the defective rate will be <5‰. Various kinds of products has reached the international advanced level.
We are doing OEM for some big brands in US and Europe and we also have a 8000 m' mold factory, so we are able to offer good OEM service to our customers.
FAQ
Q1. Can I have a sample order for pool led light?
A: Yes, a sample order to test and check quality is available for us.
Q2. What about the lead time?
A: Sample orders need 3-5 days, bulk order production time needs 1-4 weeks for preparing material and order production.
Q3. Do you have any MOQ for pool led light?
A: No MOQ limited.
Q4. Do you have any certification for pool led light?
A: Yes, we have CE, RoHS, EMC, FCC, LVD...
Q5. Do you offer guarantee for pool led light?
A: Yes, we offer 2 years warranty to our products. Any quality problems within this period, please take photos or videos for us, we offer new lamps for replacements directly.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q7. Could you laser my logo on the led pool lights?
A: Yes. we can offer OEM&ODM service. Please send us your requirements or ideas before the production, and we will take pictures of samples for you comfirmation before mass
Q8. What's the payment you accept?
A6: T/T, western union, paypal L/C...
