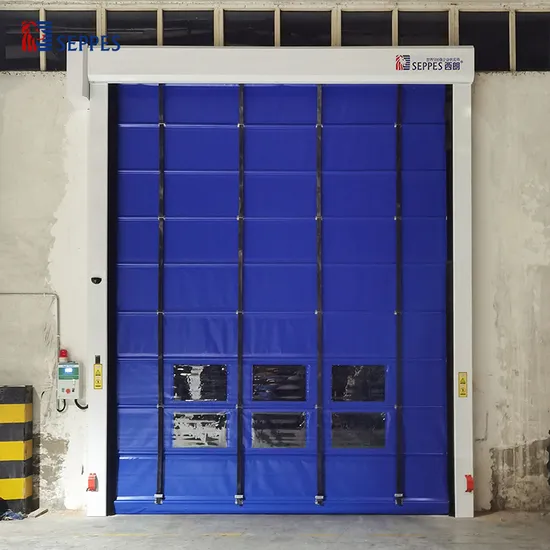

High Speed Automatic Large Size PVC Door Fast Roller Shutter Stacking Door

Product Description

Why more and more factories choose SEPPES industrial doors?
1. An industrial Door Brand Exported to Over 50 Countries
2. Serving Over 3600 Clients Worldwide
3. Holder of Multiple Authoritative Certifications, Including CE,SGS, UL
4. Supplier Partner to Fortune 500 Companies
5.Advanced Servo Intelligent Control Systems for Professional NeedsOverviewHigh Speed Stacking DoorSEPPES wind-resistant high speed stacking doors are suitable for the entrance and exit of logistics channels and large-area openings. They adopt folding lifting methods and multiple built-in or external horizontal wind-resistant levers, so that the wind pressure can be evenly distributed on the entire door curtain, and can resist about 10 grades. Strong wind from left and right, the wind resistance is much higher than that of conventional roller-type fast rolling doors.Installation Site
Product Description
Various colors available
More Details

Maximum size	12000*10000mm(w*H)
Wind pressure	9-10 wind (refer to the size of the door)
Opening speed	0.6-0.8 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.6 m's (speed adjustable)
PVC base cloth thickness	0.9 mm/1.2 mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	Cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	380V150HZ
Interlock function	Support
Linkage function	Support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	Photoelectric (standard), safety bottom edge (standard)

Project cases
Installation InstructionsAll measurements are made indoors and each value must be measured at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h is at least 900mm above the door opening (distance from the top of the door opening to the ceiling)
b1/b2 is the left/right lateral distance of at least 350mm (the distance from the corresponding edge of the door opening to the obstacle)
When measuring H and B, take the largest value as the final size
When measuring h, b1 and L, take the smallest value as the final size
Company Profile
SEPPES Door Industry (Suzhou) Co., Ltd. is a high-tech company focusing on the development, design and manufacturing of industrial door technology, headquartered in Suzhou, China. We manufacture complete customized entrance door system solutions for industrial customers. Our main products include high speed doors, automatic roller shutter doors, sectional doors, etc. All products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 quality management systems. Certification.With professional products and brand reputation, SEPPES has become a cooperative supplier of more than 60 Fortune 500 companies.
Other Products
FAQ
1.Q:What is a High Speed Stacking Door?
A:A High Speed Stacking Door is a type of industrial door designed to operate at rapid speeds while providing efficient opening and closing functionality. It is commonly used in environments where quick access, temperature control, and energy efficiency are crucial, such as warehouses, manufacturing facilities, and logistics centers.
2.Q:What are the key features of High Speed Stacking Doors?
A:High Speed Stacking Doors typically feature:
Rapid opening and closing speeds to facilitate smooth traffic flow.
Stacking panels that fold vertically when opened, maximizing available space.
Durable construction using high-quality materials to withstand frequent use and harsh industrial environments.
Optional safety features such as motion sensors, safety edges, and vision panels to enhance operational safety.
3.Q:How do High Speed Stacking Doors differ from traditional industrial doors?
A:High Speed Stacking Doors offer several advantages over traditional industrial doors, including:
Faster operating speeds, reducing wait times and increasing productivity.
Space-saving design with stacking panels that minimize the footprint when the door is open.
Enhanced energy efficiency by minimizing air exchange and temperature loss.
Improved safety features and automation options for seamless integration into modern facilities.
4.Q:Can High Speed Stacking Doors be customized to fit specific requirements?
A:Yes, most manufacturers offer customization options for High Speed Stacking Doors to meet specific application needs. This includes variations in size, material, color, and additional features such as insulation, vision panels, and wind resistance. Customization ensures that the door integrates seamlessly into your facility and meets your unique operational requirements.
5.Q:Are High Speed Stacking Doors suitable for high-traffic environments?
A:Yes, High Speed Stacking Doors are ideal for high-traffic environments due to their rapid operating speeds and durability. They are designed to withstand frequent opening and close
