Slant Bed CNC Lathe Turret Tool Turning Lathe CNC Machine Clk6140s
Basic Info.
Model NO.
Clk6140s
Type
Multi-Axis Automatic and Semi-Automatic Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Over Bed
540
Max. Processing Dia.
400/290
Max.Travel
200/600
Single Width of X/Z/W(Tailstock)
35/45/45
Product Name
Slant Bed CNC Lathe
Belong to
CNC Machine
Used as
CNC Turning Lathe
X Ball Screw
32*8
Z Ball Screw
40*10
Spindle Speed Range
30-4000
Spindle Inner Cone
80
Main Motor
7.5
Transport Package
Plywwod
Specification
CLK6140S
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
500PCS/Year
Product Description
Slant bed CNC lathe Turret Tool turning lathe CNC machine CLK6140S1.Product introduction and use
This machine is a fully functional slant bed CNC lathes, especially suitable for small and medium-sized plate, short shaft parts of high speed, high precision machining. There are two straight axis X, Z, can do long stroke integral movement by hydraulic driven tailstock . be able to complete full functions by one clamping for: turning, drilling, boring, tapping, reaming, and others.
2.Main technical parameters
| Items | Unit | CLK6140S Specification | |
| Max. swing over bed | mm | Φ540 | |
| Max. processing dia.(not over carriage /over carriage) | mm | 400/290 | |
| Max. distance between Spindle standard configuration chuck end face(doesn't contain claws) to top of tailstock;(Max. support length) | mm | 600 | |
| Max. Dia. Of through bar inner spindle (when standard configuration ) | mm | 50 | |
| Main motor | kw | 7.5 | |
| Max.travel | Travel for X | mm | 200 |
| Travel for Z | mm | 600 | |
| rapid moving | For X | m/min | 18 |
| For Z | m/min | 18 | |
| Guide way | Lathe bed guide rail tilt Angle | degreee | 30 |
| Guide way type | Ball screw | ||
| Single width of X/Z/W(tailstock) | mm | 35/45/45 | |
| Ball screw | X | mm | 32*8 |
| Z | mm | 40*10 | |
| Spindle | Spindle speed range | r/min | 30-4000 |
| Spindle nose | A2-6 | ||
| Spindle inner cone | 80 | ||
| Standard configuration hydraulic chuck | mm | 200 | |
| tailstock | tailstock inner cone | MT | MT5 |
| Move type | Hydraulic(integral type ) | ||
| travel | mm | 450 | |
| Cooling | cool pump power | w | 370 |
| Cool pump flux | L/min | 75 | |
| Cool pump volume | L | 200 | |
| Tool turret | Tool turret type | horizontal | |
| Tool number | pcs | 10 | |
| Tool specification | mm | Square 20/round 25 | |
| Lubrication type | Auto | ||
| Position accuracy | Mm | ±0.008 | |
| Re-position accuracy | Mm | ±0.004 | |
| Power form | AC voltage | V | 3 380±10% |
| Frenquency | HZ | 50±10% | |
| Total Power capacity | KVA | 15 | |
| weight | kg | 3500 | |
| Overall dimension(L*W*H) | mm | 2800*1750*1870 | |
3.Standard configuration
1)8″ 3-jaw hydraulic chuck and soft jaw ;
2)spindle motor: servo motor,7.5KW(48N.M);
3)Max spindle unit speed 4000rpm'

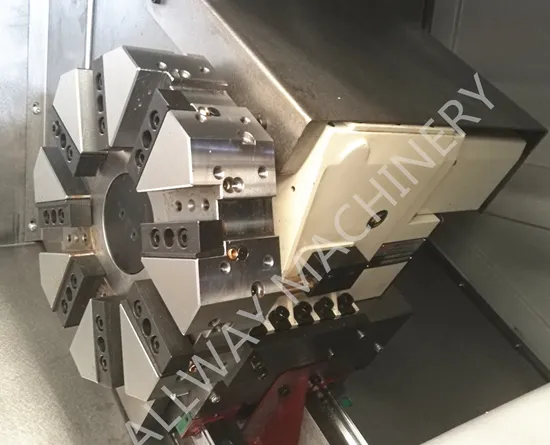

4)10 position hydraulic tool turret(contain turning/boring apron each 2);
5) Manual pulse generator(hand wheel).;
6) Z axis rigid tapping Z;
7) Centralized automatic oil lubrication; ;
8)outlay water coolant and air coolant system;
9)chip by manual;
10)All protective sheet metal shield and guide shield;
11)leveling pads;
12) Work light;
13)warning lamp;
14)hydraulic unit;
15)Fanuc 0i MF5 CNC system
4. Optional configuration:
1)GSK, Siemens, Mitsubishi and so on cnc controller.
2)auto chip conveyor;
3)manual chuck;
4)servo tailstock;
5) sub-spindle;
6)Elastic collet and collet
7) tool setting,
8)feeder bar.
5. Packing:
Contact ALLWAY MACHINERY , get more professional information!
