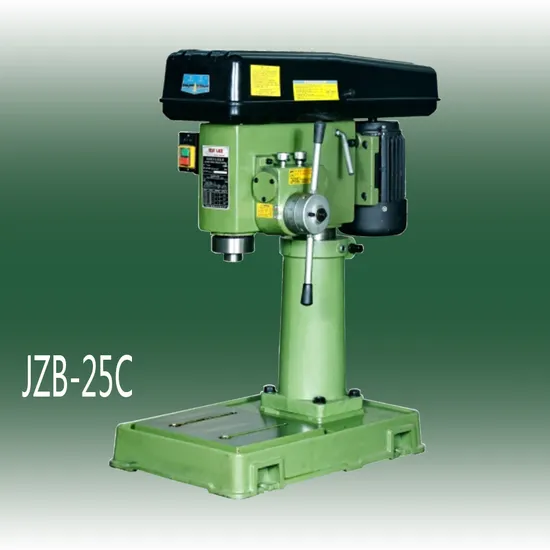

High Speed Automatic Feed Drilling Machine Jzb-25c Table Precision Drill Machine Maximum Diameter 25 mm
| US$1,619.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JZB-25C
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
1500W
Max Drilling Capacity
25 mm
Transport Package
Wooden Case
Specification
177x91x55cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | JZB-16/JZB-25(A) | JZB-25B/JZB-25C |
| Max Drilling capacity | 16/25mm | 25mm |
| Diameter of column | 85/102mm | 102mm |
| Spindle travel | 100/130mm | 130mm |
| Distance spindle axis to column surface | 180/230mm | 230mm |
| Max.distance spinde nose to worktable | 425/750mm | 740mm/- |
| Maxdistance spindle nose to base | 610/990mm | 1050/700mm |
| Spindle taper | MT.2/MT.3 | MT.3 |
| Spindle speeds range | 290-2000rpm/230-2160rpm | 230-2160rpm |
| Spindle speeds | 6 | 6 |
| Spindle power feeds | 0.1.0.14,0.17.0.25/0.1.0.16.0.25mm/r | 0.1.0.16.0.25mm/r |
| Dimension of worktable surface | 270x280mm/340x360(420mm) | 390x470mm/- |
| Dimension of base worktable surface | 245x245mm/260x260mm | 325x275mm |
| Overall height | 1050/1560mm | 1640mm |
| Motor | 750W/1500W | 1500W |
| G.W/N.W. | 140/125kg,215/188kg | 298/270kg,245/230 |
| Ship measurement | 115x78x45cm 169x90x49cm | 128x81x46cm 177x91x55cm |
| Model | ZB512 | ZB4020 |
| Max.Drillingcapacity | 12.7mm | 20mm |
| Diameter of column | 70mm | 85mm |
| Spindle travel | 80mm | 125mm/75mm |
| Distance spindie axis to column surface | 193mm | 240mm |
| Max.distance spindle nose to worktable | ||
| Max.distance spindle nose to base | 356mm | 480mm |
| Spindle taper | B16 | TM.2 |
| Spindle speedsrange | 480,800,1400,2200r/min | 370,610,1000,2000r/min |
| Spindle speeds | 4 | 4 |
| Spindle power feeds | 0.06,0.14/mm/r | 0.10,0.18/mm/r |
| Dimension of base worktable surface | 280x260mm | 315x335mm |
| Overall height | 666mm | 772mm |
| Motor | 550W | 1100W |
| G.W./N.W. | 105/90kg | 160/130kg |
| Ship measurement | 80x50x76cm |
