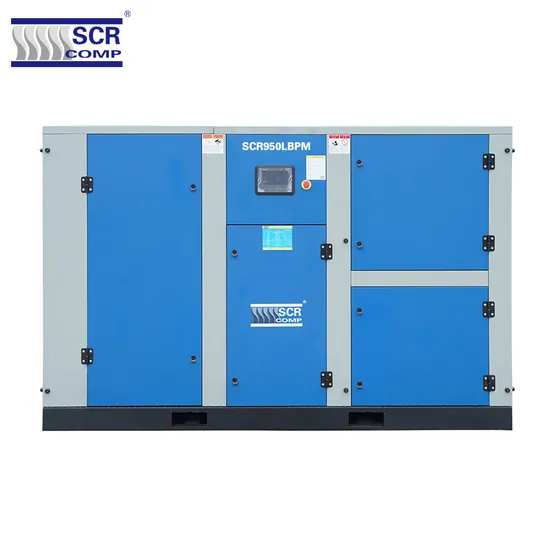

(SCR950LBPM Series) Low Pressure Screw Air Compressor Japanese Technology Specially Designed Pm Motor Enhanced Energry Savings

Product Description

Product Technical Description

Model :	Low Pressure Permanent Magnet Series (LB & LBPM)
Type:	Low Pressure Permanent Magnet Screw Air Compressor
Voltage:	380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure:	1.5~5bar
Installed Motor Power:	37~185 Kw
Color:	Blue
Driven Method:	Direct Driven
Trademark:	SCR
Transport Package:	Standard Wooden Packing
Available Certificate:	CE, ISO, UL, ASME, GHOST
Origin:	Shanghai, China
application:	Beverage , Biological Fermentation , Cement Transportation , Printing & Dyeing , Sewage Treatment , Textile

Product Features
1.Specially designed PM motor.
2.Enhanced energy savings.
3.Low Energy Consumption,Low running,maintenance cost.
4.Aptitude and intelligent Control, integrated touch-screen PLC displayer.
5.Unique safe units make whole compressor more safety, more stable,lest noise,lest energy Loss.
6.Easy to install,operate,maintain.
Specially designed PM motor:
The PM motor efficiency is even higher than IE3 premium efficiency motors. The motor uses high performance magnetic materials giving many advantages such as bearing free operation, grease free maintenance, direct 1:1 coupling without transmission losses, low noise and low vibration leading to a compact structure.
Enhanced Energy Savings:
When demand is low the PM low pressure compressor firstly reduces the speed to maintain the correct flow demand. If the air demand stops the compressor enters standby mode, saving further energy. The compressor automatically restarts and runs when the pressure drops below its setpoint.
The latest generation intelligent touchscreen controller:
SCR's latest touchscreen interface allows simple intelligent control for your compressor. Pressure and scheduling times can be easily programmed allowing you to automatically start and stop the compressor to match production times. Remote operation and real time monitoring are built in the controller as standard.
Specially designed oil pipe system:
The oil system has been specially designed to reduce maintenance downtime and extend the periods between maintenance visits.

Model		SCR950LB-3	SCR950LB-4	SCR950LB-5
Capacity/Pressure(m3/min,/BAR)		28.8/3	28.8/4	28.8/5
Motor	Power(KW)	90	110	110
	Speed(r/min)	450-1500
	Starting way	Star-Delta
	Volt(V)	380/400/415(220)
	Motor safety grade	IP54
	Motor isolation grade	F
Electrical Supply		380(400,415)V/50Hz/3Phase, 220(440)V/60HZ/3P
Outlet Temperature(ºC)		≤ Environment Temperature+10ºC
Driven way		Direct Driven
Noise level at 1 meter		75±3dB
Cooling method		Air cooling
Oil content		1.2~3.6
Outlet Connection		DN100
Dimension	Length(mm)	2900
	Width(mm)	1860
	Height(mm)	1900
Weight(KG)		3300
