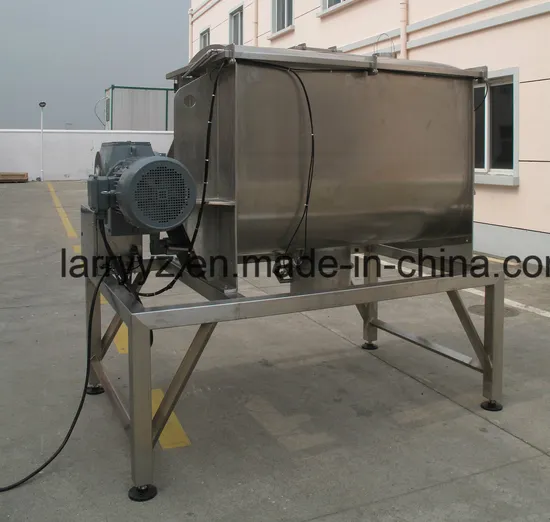

Sld1000 Double Ribbon Blender & Ribbon Blending Machine
Basic Info.
Model NO.
SLD1000
Application Area
Food
Certification
CCC, CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Spiral
Working
Convection Mixer
Size Range
200L-2000L
Mixer Type
Double Ribbon Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Veneer Case
Specification
ISO
Trademark
Develop Mc
Origin
China
HS Code
8479820090
Production Capacity
200 Units/Year
Product Description
SLD1000 Double Ribbon Blender & Ribbon Blending MachineMain Introduction:
The Horizontal Screw Belt Blender is a new type, high efficiency mixing equipment, are widely used in food and chemical industry.
Main features:
1. Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widely usage, with many kind of Blender structure, multiple function
2. Whole machine except for motor is made of stainless steel
3. With warm sheet, bearing great pressure, make easy-forming material into difficult forming after filling steam
4. For different mixing requirements, use different screw structure, rapid & thorough mixing
5. There is a split window in the body for cleaning
6. Load coefficient large, covering small surface
7. With safety screen inside cover
8. Pneumatic discharge door.
Technical parameters:
| Model | SLD200 | SLD300 | SLD500 | SLD1000 | SLD1500 | SLD2000 | |
| Effective Volume | liters | 213L | 303L | 519L | 965L | 1376L | 1856L |
| Cubic foot | 7.5 | 10.7 | 18.3 | 34 | 48.6 | 65.6 | |
| Total volume in cubic foot | 10 | 15 | 25 | 45 | 66 | 87.5 | |
| All Volume in liters | 284L | 404L | 692L | 1286L | 1835L | 2475L | |
| Rotate speed (RPM) | 46 | 46 | 46 | 46 | 46 | 46 | |
| Blend time | 0-30 min | 0-30 min | 0-30 min | 0-30 min | 0-30 min | 0-30 min | |
| Air pressure | 0.4-0.6 Mpa | ||||||
| Overall Dimension(m) | 1.37*0.83*1.65 | 1.55*0.97*1.66 | 1.77*1.1*1.86 | 2.39*1.32*2.18 | 2.72*1.4*2.31 | 3.08*1.63*2.45 | |
| N/w | 260kg | 350kg | 500kg | 700kg | 1000kg | 1300kg | |
| Total Power (1HP=0.735KW) | 4KW | 5.5 KW | 7.5 KW | 11 KW | 15 KW | 22KW | |
| Power in unit HP | 5.5HP | 7.5HP | 10HP | 15HP | 20.5HP | 30HP | |
| Voltage Supply | 3 Phase 208-415V 50/60Hz | ||||||
