Updated South New Galaxy G1 Receiver Imu-965 Channels Gnss GPS Rtk with Land Surveying Instrument Rover and Base Rtk
Basic Info.
Model NO.
G1
GPS
L1c/a, L1c, L2c, L2e, L5
Glonass
L1c/a, L1p, L2c/a, L2p, L3
Dimension
12.9cm *11.2cm
Weigh
970g(Includiing Installed Battery)
Waterproof/Dustproof
IP67
Power Consumption
2W
Initialization Time
<10s
Initialization Reliability
>99.99%
Positioning Output Rate
1Hz~50Hz
Rtk Initialization Time
2~8s
Material
Magnesium Aluminum Alloy Shell
Humidity
Non-Condensing
Operating
Withstand 40g 10milliseconds Sawtooth Wave Impact
Accuracy
2mm
Vertical Lines
4
Horizontal Line
4
After-sales Service
1 Year
Warranty
1 Year
Transport Package
Cartoon
Specification
12.9cm *11.2cm
Trademark
South
Origin
China
HS Code
8501109190
Production Capacity
50000 Pieces/Year
Product Description
Product Description Updated SOUTH New Galaxy G1 Receiver IMU-965 Channels GNSS GPS RTK with Land Surveying Instrument Rover and Base RTKPERFORMANCE SPECIFICATIONS
| SOUTH Galaxy G1 | |
| Surveying Performance | |
| Channel | 965 Channels |
| Signal Tracking | BDS B1, B2, B3, |
| GPS L1C/A, L1C, L2C, L2E, L5 | |
| GLONASS L1C/A, L1P, L2C/A,L2P, L3 | |
| SBAS L1C/A, L5( Just for the satellites supporting L5 ) | |
| Galileo GIOVE-A, GIOVE-B, E1, E5A, E5B | |
| QZSS,WAAS, MSAS, EGNOS, GAGAN, SBAS | |
| GNSS Feature | Positioning output rate: 1HZ~50HZ |
| Initialization time : <10s | |
| Initialization reliability : >99.99% | |
| Positioning Precision | |
| Code Differential GNSS Positioning | Horizontal: 0.25 m + 1 ppm |
| Vertical: 0.50 m + 1 ppm | |
| SBAS positioning accuracy: typically<5m 3DRMS | |
| Static GNSS Surveying | Horizontal: 2.5 mm + 0.5 ppm |
| Vertical: 5 mm + 0.5 ppm | |
| Real-Time Kinematic Surveying (Baseline<30km) | Horizontal: 8 mm + 1 ppm |
| Vertical: 15 mm + 1 ppm | |
| Horizontal: 8 mm + 0.5 ppm | |
| Vertical: 15 mm + 0.5 ppm | |
| Network RTK | RTK initialization time: 2~8s |
| Physical | |
| Dimension | 12.9cm × 11.2cm |
| Weigh | 970g(includiing installed battery) |
| Material | Magnesium aluminum alloy shell |
| Environmental | |
| Operating | -45ºC~+60ºC |
| Storage | -55ºC~+85ºC |
| Humidity | Non-condensing |
| Waterproof/Dustproof | IP67 standard,protected from long time immersion to depth of 1m |
| IP67 standard,fully protected against blowing dust | |
| Shock and Vibration | Not operating: Withstand 2 meters pole drop onto the cement ground naturally |
| operating : Withstand 40G 10milliseconds sawtooth wave impact test | |
| Electrical | |
| Power consumption | 2W |
| Battery | Rechargeable, removable Litium-ion battery |
| Battery Life | Single battery: 7h( static mode ) 5h( interual UHF base mode ) |
| 6h( rover mode ) | |
| Communications and Data storage | |
| I/O Port | 5PIN LEOM external power port + RS232 |
| 7PIN LEOM RS232 + USB | |
| 1 network/radio data link antenna port | |
| SIM card slot | |
| Wireless Modem | Integrated internal radio receiver and transmitter 0.5W/2W |
| External radio transmitter 5W/25W | |
| Working frequency | 410-470MHz |
| Communication protocol | TrimTalk450s, TrimMark3, PCC EOT, SOUTH |
| Cellular Mobile Network | WCDMA3.5G network communication module, GPRS/EDGE compatible, CDMA2000/EVDO |
| 3G optional | |
| Double Module Blue tooth | BLEBlue tooth 4.0 standard, support for android, ios cellphoon connection |
| Blue tooth + EDR standard | |
| NFC communication | Realizing close range ( shorter than 10cm ) automatic pair between Galxy G1 and controller |
| (controller equipped NFC wireless communication module needed) | |
| Data storage/Transmission | 4GB internal storage, more than 3 year raw observation data (1.4M/day) base on recording from 14 satelites Plug and play more of USB data transmission |
| Data Format | Differential data format: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 |
| GPS output data format: NMEA0813, PJK plan, cordinates binary code | |
| Network model support: various, FKP, MAC, supporting NTRIP protocol | |
| Intertial Sensing System | |
| Tilt survey | Built-in tilt compensator, correcting coordinates automaticlly according to the tilt direction and angle of the centering rod |
| Electornic Bubble | Conteroller software display electronic bubble, checking leveling status of the centering rod real time |
| User Interaction | |
| Buttons | One-button operation, Visual operation, convenient and effici |

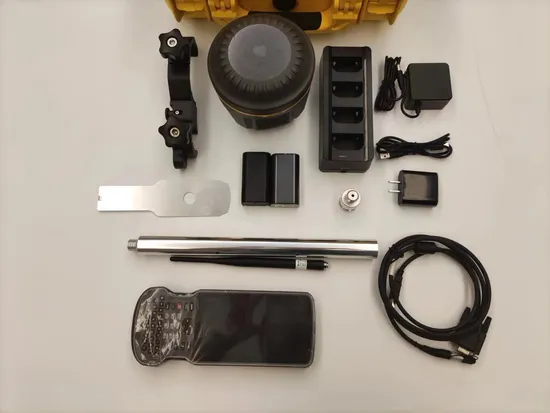

Standard package including carrying case and carton Company Profile
Jiangsu Bangjie Trading Co., Ltd. is a comprehensive trading company whose main business is surveying instruments, building materials and international trade. The company was registered in Nanjing, Jiangsu Province, the only megacity in the Yangtze River Delta. The company combined domestic sales with international trade earlier and was always guided by customer needs. The company currently has three departments: surveying instrument department, building materials department and international trade department. We have a group of professionals who have been engaged in related industries for many years. We can provide you with more authoritative and convenient pre-sale consultation, sales cooperation, after-sales coordination and guidance, and provide comprehensive services.
At present, the company's main surveying instruments are: total station, GPS RTK, UAV, theodolite,plummet,auto level,laser rangefinder and surveying accessories.
