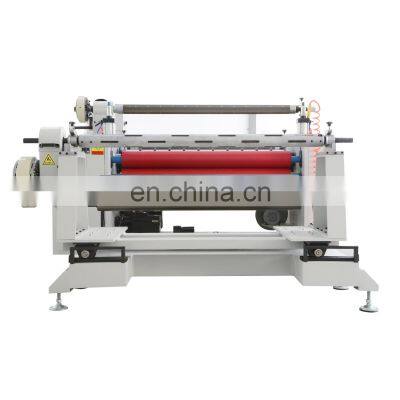

Oxford Fabric Slitter Roll To Roll Label Rewinder Machine Nonwoven PVC Flim Meltblown Paper Roll Rewinding Machine

Product Description

Product Description
Product OverviewPP PE PC PET PVC Plastic Film Foam Paper Label Sticker Roll to Roll Slitting and Rewinding Machine with Laminating FunctionThis machine can slit flexible materials,such as plastic,paper,foam,film.label,sticker.etc.With EPC system, and the magnetic powder controls the unwinding and rewinding tension. Main machine with frequency conversion speed.The slitting width can be adjusted as requested.Precise slitting,fast slitting speed,easy operation and maintenance.PRODUCT SPECIFICATIONSModelDP-650DP-1300DP-1600Max Feeding Width650mm1300mm1600mmPower2.2KW6KW6KWSlitting Speed80m/min80m/min80m/minMax. Unwinding Diameter600mm600mm800mmMax. Rewinding Diameter450mm450mm450mmSlitting Precision± 0.1mm± 0.1mm± 0.1mmMinimum slitting width25mm25mm25mmVoltage380V 50HZ380V 50HZ380V 50HZFEATURES AT A GLANCE1pcs 3inch inflatable unwind shaft.Magnetic powder brake 100N controls the unwinding tension.EPC Web Guiding Controller System to keep the material in line.Up 3inch inflatable unwind shaft for laminating function.Magnetic powder brake 50N controls the unwinding tension.Laminating and pulling roller: Upper and under PU rubber roller with Diameter 135mm.2 adjustable pressure cylinders adjust the rubber roller up and down.Aluminum guide roller with hard anode oxidation.Upper 65mm knife shaft with slitter Dia.110*75*1Under 65mm knife shaft with slitter Dia.90*65*10Manual fine-tuning lock device.8 rotary slitting blade can be adjustable,the minimum slitting width is 25mm. Air blower for trimming.2pcs 3inch inflatable rewind shaft.Magnetic powder clutch 50N control the rewinding tension.Double main motor.2 pneumatic arms to hold the rewinding shaft.The slitting speed and the tension can be set on this control panel.With meter counter.Click below picture to check our 650mm machine:
