Semi Automatic PET Bottle Blow Molding Machine / blowing equipment / blower mold machine

Product Description

Product Description

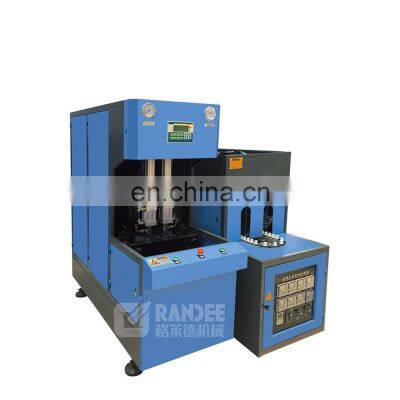

Semi Automatic PET Bottle Blow Molding Machine
Product Description
Specifications
GD-880 Semi-automatic water bottle blowing machine
CE approval
Speed: 700-800pcs/h for 500ml pet bottle
Volume:220-2000mL
Brief introduction of water bottle blow molding machine
PMG semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.01-25L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Main machine :
2 Cavity bottle blowing mold
Heating lamp in the heating oven
Operation panel
Bottle Preform Preheating datas setup interface
Main technical parameter:

TYPE	ITEM	UNIT	GD-880 semi automatic blow molding machine
Container	Product material	/	PET
	Number of cavities	L	2 cavity
	Theoretic output	BPH	800BPH
	Max bottle height	mm	450
	Max bottle diameter	mm	35-220
Molding	Clamping force	T	20
	Clamping stroke	mm	230
	Max. stretching stroke	mm	380
	Max. mould thickness	mm	300
Auxiliary system	High air compressor		1.2m³/30KG
	Air dryer		1.0m³/30KG
	Air filter		2.0m³/30KG
Main machine electricity	Voltage standard	V / Hz	380v/3PH/50Hz or special order
	Total power	KW	6
Machine size and weight	machine weight	T	0.82
	Blow molding machine Dimension	cm	148*60*213
	Perform oven	cm	137*61*134
