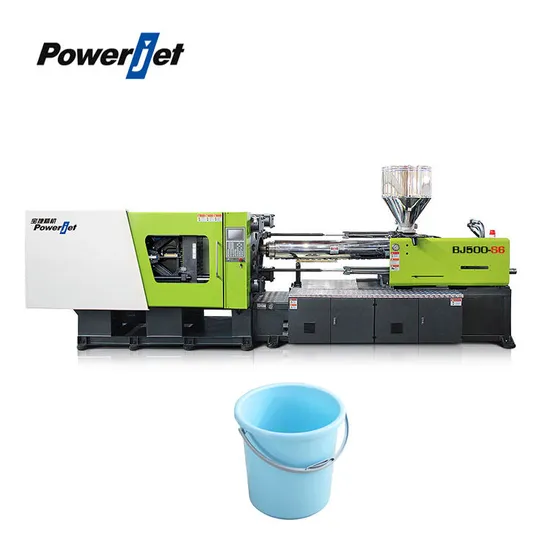

Powerjet Bj500 Cheap Price 500 Tons China Plastic Injection Molding Machine
Basic Info.
Model NO.
BJ500-S6
Structure
Horizontal
Plastic Type
Thermoplastic
Automation
Automatic
Certification
CE, ISO9001:2008
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Name
Plastic Making Injection Molding Machine
Key Selling Points
Flexible Manufacturing
Machinery Test Report
Provided
Condition
New
Machine Type
Hydraulic
Motor
Servo Energy Saving
Keyword
Plastic Dustbin Making Machine
Injection Weight (G)
2725 G
Color
Green
Showroom Location
Egypt, Turkey, United Kingdom, United States, Fran
Video Outgoing-Inspection
Provided
Plastic Processed
PP, PC, ABS, Pet, PVC, PPR, EVA, HDPE, PE, LDPE
Ejector Force(Kn)
135 Kn
Transport Package
Fixed in The Container with Wire Rope, Suitable Fo
Specification
CE standard
Trademark
Powerjet
Origin
China
HS Code
8477101090
Production Capacity
5000 Set/Sets Per
Product Description
Product DescriptionProduct Parameters
| Description | UNIT | BJ500-V6/S6 | ||||
| CLAMPING UNIT | Clamping force | KN | 5000 | |||
| Opening stroke | mm | 830 | ||||
| Max.datlight | mm | 1680 | ||||
| Platen size | mm | 1150x1120 | ||||
| Space between bars | mm | 820x780 | ||||
| Max.mold height | mm | 850 | ||||
| Min.mold height | mm | 300 | ||||
| Ejector stroke | mm | 220 | ||||
| Ejector force | KN | 135 | ||||
| INJECTION UNIT | Screw diameter | mm | 75 | 83 | 90 | 100 |
| Screw L/D Ratio | L/D | 21 | 21.8 | 20 | 19 | |
| Injection Pressure | MPa | 204 | 167 | 142 | 115 | |
| Shot volume | cm³ | 1722 | 2110 | 2481 | 3063 | |
| Shot weight (ps) | g | 1533 | 1878 | 2208 | 2725 | |
| oz | 54 | 66.3 | 77.9 | 96.1 | ||
| Injection rate | g/s | 346 | 428 | 480 | 592 | |
| Screw stroke | mm | 390 | ||||
| Screw speed | rpm | 120 | ||||
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 | |||
| Pump motor power | KW | 45/59.7 | ||||
| Heater power | KW | 28 | ||||
| GENERAL | Dry-cycle time | s | 5.8 | |||
| Oil tank capacity | L | 810 | ||||
| Machine weight | T | 18.5 | ||||
| Machine dimensions (L*W*H) | m | 8.7x2.1x2.3 | ||||
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
