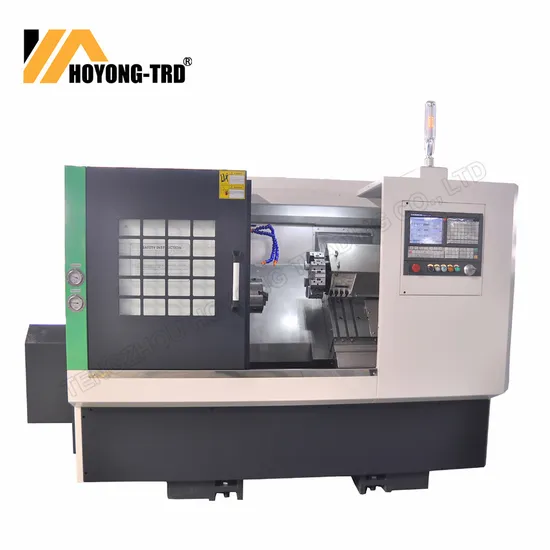

CNC Lathe Machine Horizontal Heavy Duty Metal Precision Tck6350 Tck6340 Tck6336
| US$10,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCK6350 TCK6340 TCK6336
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
390/420/520mm
Swing Over Cross Slide
120/130/220mm
Distance Between Centers
200/300/400mm
Spindel Bore
48/56/66mm
Max. Speed
3000/4000rpm
Machine Accuracy
0.016mm/0.02mm
Motor Power
3.7/5.5/7.5/11kw
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581100
Production Capacity
30
Product Description
SLANT BED LATHE MACHINE
This machine is suitable for automobile, motorcycle, electron. Aerospace, military, oil and other industries. For rotary parts of conical surface, circular arc surface, surface and various inch screw thread, volume, high, high precision automatic processing by 45 degrees high rigidity of the whole bed, large torque of the spindle, the Taiwan rail line, ensure that the machine is high rigidity, near the center of the spindle operator, work piece loading and unloading more convenient.
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
STANDARD ACCESSORIES
hydraulic 6" chuck
8 station tool turret
6" hydraulic cylinder
Taiwan Hiwin linear guideways
spindle unite 4500 rpm
SPECIFICATIONS:
| CNC MACHINERY | TCK6350 | TCK6340 | TCK6336(S) |
| Max. swing over bed | 520mm | 400mm | 390mm |
| max. swing over slide | 220mm | 120mm | 130mm |
| Max turning length | 330mm with turret, 410mm with gang tool | 300mm | 200(400)mm |
| X axis | 500mm | 380mm | 400mm |
| Z axis | 500mm | 350mm | 300(500)mm |
| Guideway | Taiwan Hiwin Linear | Taiwan Hiwin Linear | Taiwan Hiwin Linear |
| Spindle speed | 3000 rpm | 3500 rpm | 4000/3500 rpm |
| Spindle bore | 66 mm | 56 mm | 48/56 mm |
| Max. Bar capacity | 55 mm | 45 mm | 40/45 mm |
| Rapid traverse | 18m/min | 18m/min | 18m/min |
| Main motor | 7.5/11KW | 5.5KW | 3.7/5.5KW |
| Tools | Gang tool, 8-tool hydraulic turret | Gang tool, 8-tool hydraulic turret | Gang tool, 8-tool hydraulic turret |
| x/z position accuracy | 0.02mm | 0.016mm | 0.016mm |
| x/z re-positioning | 0.006 mm | 0.006 | 0.006mm |
| machine dimension | 2550*1400*1710mm | 2500*1340*1710mm | 2200*1340*1710mm 2500*1340*1710mm |
| Weight | 2900kg | 2500kg | 2200(2500)kg |
