Automatic Programmable Inductor Transformer Analyser Coil Turns Number Counter Tester Lcr Meter Winding Polarity Dcr Meter Leaking Inductance Transformer Tester

Product Description

Detailed Photos
Product Description

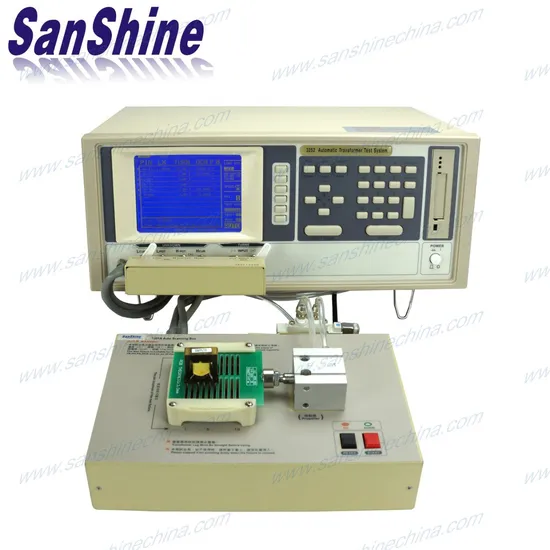

Description of SS3250/3252/3302 automatic transformer tester :
The SS3250/3252/3302 transformer test instrument is a precision test system, designed for transformer production line or incoming/outgoing inspection in quality control process, with high stability and high reliability. With the enhanced capability in turn ratio measurement, they can solve the measuring problems of low coupling coefficient, transformer's turn ratio and turn number with more precise measurement. In addition to transformer scanning test function, the 3302/3252 have LCR Meter function. Operator-friendly and value-added, they can help you reduce production cost greatly.
Feature of SS3250/3252/3302 automatic transformer tester :
1. Test frequency: 20Hz-200KHz/1MHz, 0.02% accuracy.
2. Basic accuracy: 0.1%
3. Output impedance modes, measurement results are compatible with other well-known LCR meters.
4. Enhanced Turn Ratio measurement accuracy for low permeability core
5. Fast Inductance/Turn Ratio measurement speed up to 80 meas. /sec
6. Fast DCR measurement speed up to 50 meas. /sec
7. Bias current source directly control capability (3252/3302)
8. 320x240 DOT-matrix LCD display
9. Support versatile standard and custom-design test jigs
10. Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements
11. Build-in comparator; 10 bin sorting with counter capability (3252/3302)
12. 2M SRAM memory card, for setup back-up between units
13. Standard RS-232, HANDLER, PRINTER interface
14. 50 internal instrument setups for store/recall capability
Order items of SS3250/3252/3302 automatic transformer tester :
A. SS3250/3252/3302
B. 3001A(scaning testing box)
C. Universal fixture
D. Custom-made fixture (optional)
E. Memory card (optional)

Model	3250		3252/3302
Main functions	transformer Auto. analyzer		transformer Auto. analyzer + LCR meter
Analyse parameter
Transformer Auto. Meas.	Turn ratio, Phase, Turn, L, Q, L. K, Balance, ACR, Cp, DCR, Pin short.
LCR Meas.	General L, C, R, DCR		L, C, R, Z, Y, DCR, Q, D, R, X, θ
Meas. Signal
Meas. Level	Turn	10mV~10V, ± 10%, 10mV/Step
	Other	10mV~2V, ± 10%, 10mV/Step
Meas. Frequency	Turn	3250, 3252: 1KHZ ~ 200KHZ, ± 0.02%
		3302: 1KHZ~1MHZ ± 0.02%, Min. display: 0.01HZ
	other	3250, 3252: 20HZ ~ 200KHZ, ± 0.02%
		3302: 20HZ~1MHZ ± 0.02%, Min. display: 0.01HZ
Out impendance	Turn	10Ω , Meas. level≤ 2V
		50Ω , Meas. level > 2V
	Other	Constant=OFF: according to resistance value range to be
		Constant=320X: 100Ω ± 0.5%
		Constant=107X: 25Ω ± 0.5%
		Constant=106X: 50Ω 100mA± 0.5%(setup 1V )
		inductance load < 10Ω , 10Ω ± 10%, impedance≥ 10Ω
Meas. Display range
L, L. K	0.00001uH ~ 9999.99H
C	0.00001pF ~ 999.999mF
Q, D	0.00001 ~ 99999
Z, X, R	0.00001Ω ~ 99.9999MΩ
Y	0.01nS ~ 99.9999S
θ	-90.00 ~ +90.00
DCR	0.01mΩ ~ 99.9999MΩ
Turn	0.01 ~ 99999.99T(S windings voltage < 100Vrms)
Pin - Short	11 windings, pin and pin
Base accuracy
L, L. K, C, Z, X, Y, R, DCR	0.1% (AC parameter 1KHZ )
Q, D	0.0005 (1KHZ )
θ	0.03° (1KHZ )
Turn	0.5% (1KHZ )
Meas. speed (fast )
L, L. K, C, Z, X, Y, R, Q, D, θ	80Meas. /S
DCR	50Meas. /S
Turn	10Meas. /S
Judgement way
Transformer Auto. Meas.	the judgement of all parameters of NG or good which be output by ordered processor.
LCR Meas.	parameters be displayed.		10 levels sorting and total No. be output by ordered processor. The judgement of parameter of good or NG be output by standard processor.
Displayer revising function	320*240 points LCD displayer
	Open / Short, load revising
Memory	50 groups setup, can be extended by memory card.
Equivalent circuit model	series, parallel
Trigger	inner, manual, external
Common Spec.
Environment	10º C ~ 40º C, 10% ~ 90%RH
Power consuming	Max. 140W
Power	90 ~ 125V AC or190~250V AC 48HZ~62HZ
Weight	8.5KG
Meas. (W× H× L )	430× 180× 320mm
