400kw Liming Hgt4265 Gyratory Crusher Cone Crusher Steel Slag Gyratory Rock Crusher Price for Sale

Product Description

Product Description 400kw LIMING HGT4265 Gyratory Crusher Cone Crusher Steel Slag Gyratory Rock Crusher Price For Sale

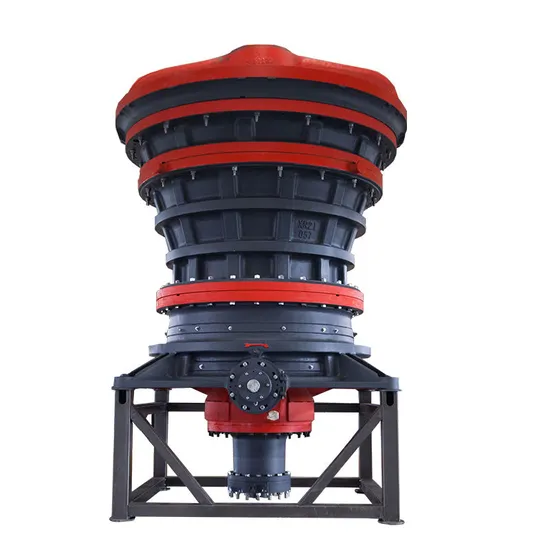

The HGT gyratory crusher is mainly composed of a cross beam part, an upper, middle and lower frame part, a moving cone part, an eccentric sleeve part, a transmission part and a hydraulic cylinder part.When the equipment is working, the horizontal shaft is driven by the motor to rotate, and the horizontal shaft is driven by the gear to rotate the eccentric sleeve, and then the eccentric sleeve drives the cone to do a circular swing, so as to realize continuous extrusion and crushing stones.The size of the discharge port can be changed by adjusting the hydraulic cylinder at the bottom of the moving cone, so that the particle size of the product can be easily adjusted; At the same time, the hydraulic cylinder also provides the function of iron protection, when there is an object that cannot be broken into the crushing chamber, the hydraulic cylinder can automatically make the moving cone fall and release the object to protect the crusher.

Model	Feed inlet(mm)	Maximum Feed (mm)	Discharge (mm)	Output (t/h)	Power(kw)	Dimensions(mm)
HGT4265	1065	900	140-175	2015-2875	400	3940×4170×6900
HGT5065	1270	1050	150-175	2400-2940	400	4460×4430×7610
HGT5475	1370	1150	150-200	2890-3490	450	4930×4925×8410
HGT6275	1575	1350	150-200	2895-4335	450	5580×5250×9090
HGT6089	1525	1300	165-230	4200-5810	630	5590×5445×10470
HGT60110	1525	1300	175-250	5540-8895	1250	6200×5940×11390
