Ready Mixed Cement Concrete Batching Plant with 60m3/H Capacity

Product Description

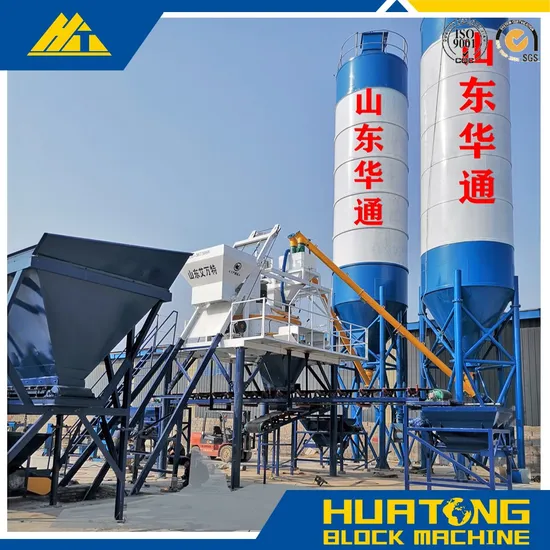

Product Description HZS50 Concrete Mixing PlantThe HZS series concrete mixing plant is a complete set of automatic concrete production equipment. It has the characteristics of low investment, small floor area, and convenient assembly-disassembly and transportation.
1. It is Suitable for small and medium-sized construction projects and commercial concrete production such as hydropower, airports, highways, bridges, buildings, pipe piles, cement pipes, brick machine supporting equipment, etc.
2. We use planetary mixing machine,which has the advantages of good mixing quality, short mixing cycle, and high efficiency. The control system is simple to operate, stable and reliable. It has many functions such as scale replenishment, scale deduction, continuous production, and intelligent alarm.
3. Various forms of design and installation can be carried out according to user needs.

Iterm	Unit	Model/Parameter	Model/Parameter	Model/Parameter	Model/Parameter
		HZN25	HZN35	HZN50	HZN75
Theoretical Productivity	m³/h	25	37.5	50	75
Discharging Height	m	3.8	3.8	3.8	3.8
Mixer Model		MPG500	MPG750	MPG1000	MPG1500
Mixing Power	KW	1*18.5	1*30	1*37	1*55
Cycle Time	s	≤72	≤72	≤80	≤80
Feed Capacity	L	800	1200	1600	2400
Discharging Capacity	L	500	750	1000	1500
Aggregate Diameter	mm	≤60	≤60	≤80	≤80
Aggregate Bin Capacity (Adjustable)	m3	2×2.5	3×3.5	3×5	3×11
Powder Bin Capacity (Adjustable)	t	2×50	2×50	2×100	2×100
Batching Machine Model	L/	800	1200	1600	2400
Skip Motor	KW	5.5	7.5	18.5	22
Screw Conveyor Capacity	t/h	17	40	40	40
Aggragate Scale Scope and Accuracy	Kg	(0-1100)±2%	(0-1700)±2%	(0-2200)±2%	(0-3300)±2%
Powder Scale Scope and Accuracy	Kg	(0-300)±1%	(0-500)±1%	(0-600)±1%	(0-900)±1%
Water Scale Scope and Accuracy	Kg	(0-120)±1%	(0-180)±1%	(0-250)±1%	(0-375)±1%
Liquid Admixture Scale Scope and Accuracy	Kg	(0-20)±1%	(0-20)±1%	(0-20)±1%	(0-30)±1%

Detailed Photos Planetary Mixer
The motor is siemens brand with great power in Transmission device.The reducer is made by Dalian Konic Group according to requirements of Huatong.The design and production adopts combination of Germany and Chinese Standard.The good components give mixer good loading capacity.The mixer has high torque,low noise and low consumption.Mixer movement is reliable and life is extended.

Transmission System Special designed gear box can spread motor power averagely into mixing shaft.The transmission device is installed outside.Mixing motor is Siemens brand..The reducer is made by Dalian Konic Group according to requirements of Aiwante.The design and production adopts combination of Germany and Chinese Standard.	Access Hole The access hole is large,it is convenient to clean and maintain.The key safety control device ensure machine do not work when access hole is open even power is on.	Mixing Device Mixing shafts rotate itself and revolution movement.Mixing of blades is crossed and do not have any blind angle and low mixing space.The mixing machine is high strength,but it do not damage materials.It do not change materials shape and do not crush materials.	Hydraulic Pump(Discharging Device) The hydraulic discharging system have manual open device.It can be opened when power is not available.Discharging door have limit switch,it can open door according to requirement.The discharging door have special designed seal device to ensure reliability.It is environmentally friendly.Switch of Discharging door have buffer device.

Specification of Planetary Mixer

Model	MPG330	MPG500	MPG750	MPG1000
Item
Input Capacity (L)	500	750	1125	1500
Output Capacity(L)	330	500	750	1000
Output Weight(KG)	800	1200	1800	2400
Mixing Power (KW)	15	18.5	30	37
Hydraulic Discharge Power (KW)	--	--	--	--
Planetary /Blade	1/2	1/2	1/2	2/4
Side Scraper	1	1	1	1
Discharging Paddle	1	1	1	1
Weight (KG)	2000	2400	3900	6200
Elevator Motor(KW)	4	4	7.5	18.5
Dimension (L*W*Hmm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220
Model	MPG1500	MPG2000	MPG2500	MPG3000
Item
Input Capacity (L)	2250	3000	3750	4500
Output Capacity(L)	1500	2000	2500	3000
Output Weight(KG)	3600	4800	6000	7200
Mixing Power (KW)	55	75	90	110
Hydraulic Discharge Power (KW)	3	4	4	4
Planetary /Blade	2/4	3/6	3/6	3/9
Side Scraper	1	1	1	1
Discharging Paddle	1	2	2	2
Weight (KG)	7700	8500	10500	11000
Elevator Motor(KW)	18.5	22	22	22
Dimension (L*W*Hmm)	3230*2902*2470	3424*3217*2790	3690*3528*2790	3690*3528*3070
