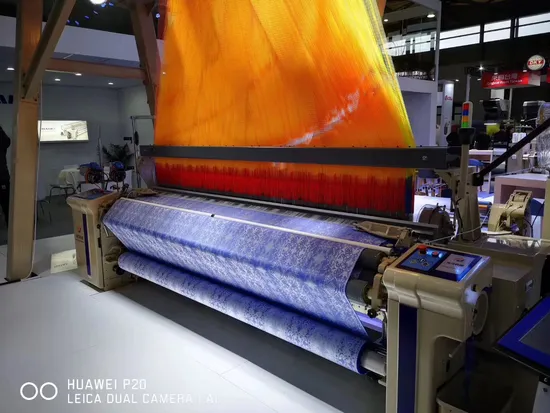

High Speed Air Jet Loom with Roj Feeder and WiFi Control

Product Description

Qingdao Haijia Machinery is the governing units of Chinese Textile Machinery!
1.SPECTIFICATION
SOME SPARE PARTS WE USED
2.OUR ADVANTAGE---WHY CHOOSE US?
1.Our company service as a whole and is the largest professional manufacturer of jet looms in China.
2. In recent years, our company has repeatedly won the contract and keeping promises units, high-tech enterprises, brand-name products and other honorary titles. Through the ISO9001:2000 quality management system certification and ISO14001, OHSAS18001 and other international standards certification.
3.Qingdao Haijia company has a strong processing hardware workshop
4.the service life is long,energy saving,high comprehensive output.
5.Qingdao Haijia company has a strong processing hardware workshop. Now has 38 sets advanced CNC machining center , more than 20 sets Nissan NC lathe , other equipment more than 100 sets,and more than 200 meters automatic paint lines
3.OUR FACTORY
WORKSHOP 1
WROKSHOP 2
CNC
HAIJIA ELECTROPHORESIS PROCESS
HA-N# Plain Shedding Device Specification

Haijia machinery HA-N main technical parameters
items	specifications	optional components
Weaving scope	Staple:100-5S/1 (Inch cotton counts)
	50~ 900D (55.6~1000dtex)
	Fabric gram weight: 500(denim)-30(gauze)g/Square meter
Weft insertion rate	1600~2200M/min
Weft selection	Single nozzle,double,quadruple,sextuple nozzle free weft choose
power	The location of parking is controlled directly by electromagnetic brake
	super stared motor:(cam shedding);(Dobby shedding);(jacquard shedding)
	button switch operated by both hands,double sides can be switched on
Weft insertion	adopt the main and auxiliary nozzles simultaneously	Extension nozzle
	use profile reed	ABS weft brake
	auxiliary main nozzle
shedding	crank connection rod shedding: heddle frame: 4pieces or six pieces.
	active cam shedding: utmost 10 pieces.
	dobby shedding: utmost 16 pieces
	jacquard shedding
let off	electric control continuous positive let off
	single warp beam.	Double warp beams
	(0~8mm)active loose warp device
	∮800mm warp side pan diameter	∮914∮1000mm
Take up	electronic take up	mechanical take up
	Range of weft density:18-204threads per inch.
	∮600mm(cam,dobby,jacquard shedding)∮520mm(crank shedding)
beating-up	crank type more sley beating-up system
	4 linkage beating(narrow) 6 linkage beating(wide)
weft measuring	vibrating weft feeder	(FDP)electric drum weft
Weft shelf	Floor type four yarn cones(2nozzle),floor type 8 yarn cones.
fabric edge	planetary gear type leno-selvage device	medium cutters
Yarn end processing	left side winding 3 drum types
Weft-cutting	mechanical cutters
lubrication	main transmission part is oil-bath type,one-time oil filling by hands	Auto one time-oil filling
Parking device	Weft:photoelectric weft feeder,double probe
	Warp:electrical contact 6 columns dropper
	Other:self-stop when yarn is broken
	Parking reason indication:message showing on man-machine interface, parking indication with four color lamps in multi-function
Automation	Control:multi-functional computer control system featuring parameter setting/control/monitor/self diagnosis/artificial intelligence interface.
	Broken weft finder device:automatically find shed
	Slowly motion available through AC Driver(forward and reverse)
	other:monitor output terminal
	memory system
	injection automatic control

Our company has always been adhering to the "quality to create value for customers"as business purposes.
We will try our best to serve our customers.
5.EXHIBITION

6.Our company
Founded in April 2001, Qingdao Haijia Machinery Co., Ltd. is located in Wangtai Town, a major textile machinery town in China, covering an area of about 40,000 square meters. It is a professional shuttleless looms manufacturing enterprise integrating R&D, manufacturing, sales, international trade and service. The main products include "Haijia" brand HW series water jet loom and HA series air jet loom. According to the official data of China Textile Machinery Association, the market share of water jet loom produced by Haijia Machinery has been leading the world for many years.
Company currently has more than 300 employees. The company has established a technology center since 2013, focusing on technological innovation and improvement of shuttleless looms. In 2018, it was recognized as the Shandong Enterprise Technology Center. At present, the center has 65 full-time R&D personnel, accounting for enterprises. The total number is 19.5%. The company attaches great importance to the management of independent intellectual property rights. It now has 52 independent intellectual property rights, including 17 inventions, 30 utility models and 5 appearance patents; it has 11 registered trademarks, including 5 international trademarks and 6 domestic registered trademarks. In the past three years, the company's operating income has grown at an average rate of 50.7%.
In recent years, the company has won many honorary titles such as contract-honoring and credit-keeping units, high-tech enterprises, Qingdao technology centers, brand-name products, A-level tax credit units, and outstanding private enterprises. It has passed ISO9001: 2000 quality management system certification and ISO14001, OHSAS18001 and other international standards certification.
