Air Leg Yt24 Portable Hand Held Rock Drill Machine
| US$350.00-650.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YT24
Controlling Mode
Artificial
Number of Shaft
No
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
No
Condition
New
Color
Blue/Green
Quality
High Quality
Feedback
Good
Brand Name
Bestlink
Drilling Depth
5m
Weight
24kg
Transport Package
Plywood
Specification
CE
Trademark
BESLINK
Origin
Xiamen, Fujian
HS Code
84671100
Production Capacity
300set /Month
Product Description

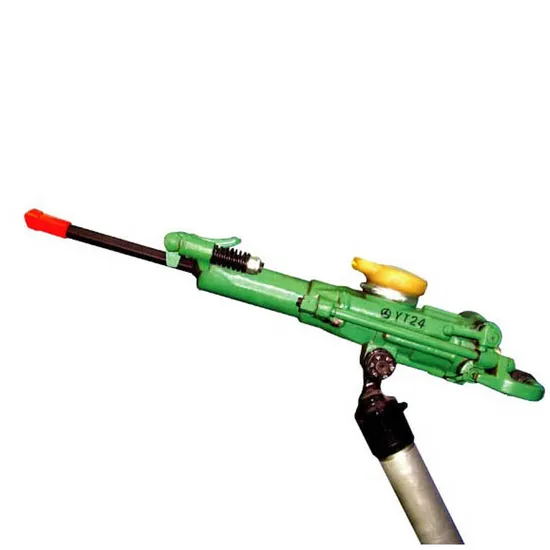

Portable YT24 Pneumatic Hand Held Rock Drill Machine Suitable for making horizontal and inclined blastholes, in medium-hard and hard rocks with a hardness of f=8-18.Among the various air-leg rock drills, these three are most versatile to different working conditions, this kind of rock drill is an important tool for rock drilling operations in mines,railway,communincation and water conservancy projects.
Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
| Specification | ||
| Weight | 24 | kg |
| Outside dimensions(L×W×H) | 605*485*158 | mm |
| Cylinder diameter | 82 | mm |
| Piston Stroke | 60 | mm |
| Working Pressure | 0.40-0.63 | mpa |
| Impact Energy | J | |
| ≥78(0.63Mpa) | ||
| ≥69(0.5Mpa) | ||
| ≥50(0.4Mpa) | ||
| Air Consumption | L/S | |
| ≤88(0.63Mpa) | ||
| ≤65(0.5Mpa) | ||
| ≤53(0.4Mpa) | ||
| Impact Frequency | HZ | |
| ≥39(0.63Mpa) | ||
| ≥37(0.5Mpa) | ||
| ≥26(0.4Mpa) | ||
| Torque | N.M | |
| ≥20(0.63Mpa) | ||
| ≥17(0.5Mpa) | ||
| ≥15(0.4Mpa) | ||
| Rotated speed | 300(0.5Mpa) | R/min |
| Working Water Pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | mm |
| Water pipe inner diameter | 13 | mm |
| Rock drill hole diameter | 34-42 | mm |
| Max drilling depth | 5 | m |
| Working temperature | 30~45 | ºC |
| Shank Size | H22*108 | mm |
| FY250 Oil Lubricator | ||
| Weight | 1.2 | kg |
| Oil Reserve | 0.25 | Litre |
| FT160A Air Leg | ||
| Length | 1668 | mm |
| Advance Length | 1338 | mm |
| Cylinder diameter | 65 | mm |
| Weight | 18 | kg |
