Haiqintop Brand (HQ60) with Japan Kubotaengine Jiahe Excavator

Product Description

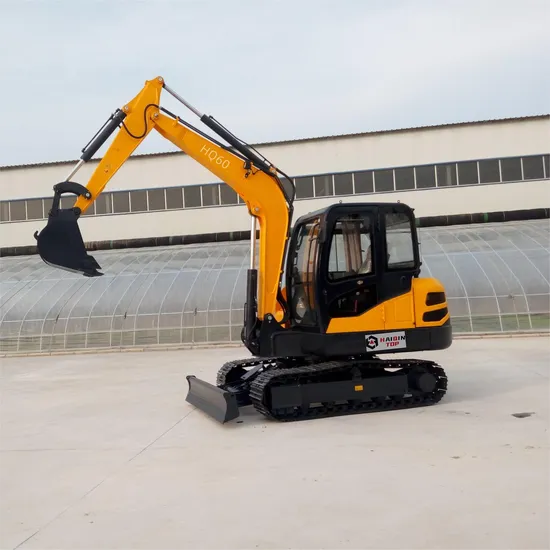

China HaiqinTop HQ60 Crawler Excavator with CE, KubotaEngine or Yanmar enigne
1,6.0ton Excavators Features:

The crawler excavator is an economic type excavator ,which matched KUBOTA-engine with strong power and low oil consumption and environment protection.
Fitted famous brand main pump and valves and driving motor and slewing motor.
Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency .
The professional structural parts and working mechanism , ensure the machine has reliability and durability .
The breaking pipeline equipped improve the working performance .
Installed luxury full seal cabin with A/C and LCD display etc.
The humanized design , ensure the machine can comfortable operation and convenient maintenance.
2, Mini Excavators More photos :
3.Specification:

ENGINE
Emission Standard	China Stage III
Make /Model	KUBOTA-ENGINE /V2607
Power /Rotation speed	42.4kw(58HP)@2000rpm
Number of cylinder	4
TRACK SYSTEM
Maximum Travel speed	2.4/4.3 km/h
Width of track shoe	400mm
Number of track shoe per side	40pcs
Number of upper roller per side	1
Number of bottom roller per side	5
PERFORMANCE PARAMETER
Standard Bucket capacity	0.21m³
Bucket width	700MM
Swing speed	11rpm
Maximum Grade ability	35°
Maximum Bucket digging force	48KN
Maximum Arm digging force	35KN
Hydraulic system pressure	28Mpa
Machine weight	6100kg
Fuel tank	87L
Hydraulic oil tank	100L
MACHINE SIZE
Overall dimension (L*W*H)	5940mm*1880mm*2570mm
Height of cabin	2600mm
Track length on ground(Axle base)	1990mm
Track gauge	1480mm
Minimum Ground clearance	353mm
Swing radius at tail	1689mm
WORKING RANGE
Maximum Digging height	5499mm
Maximum Dumping height	3845mm
Maximum Digging depth	3808mm
Maximum Vertical digging depth	2983mm
Maximum Digging radius	6128mm
Minimum swing radius	2607mm
Maximum Lifting height of blade	376mm
Maximum Cutting depth of blade	474mm

4.Working Case in the foreign countries of Haiqin Top Machinery
5.Certificate of HaiqinTop Machinery
6.MORE PRODUCT CATEGORIES OF HAIQIN-TOP MACHINERY
7.Warranty and Service.
HAIQIN-Top machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
