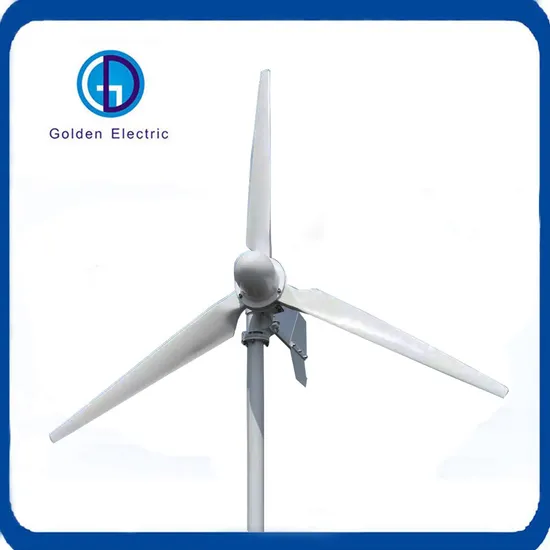

Home Use off Grid System 1000W AC 48V Wind Turbine Power Generator Horizontal Windmill Wind Turbine

Product Description

Product Description
1. A3 steel housing, makes small size, light weight, beautiful appearance and low working vibration.
2.flange connection ensures good strength, easy installation and maintenance.
3.enhanced fiberglass turbine blades with optimized aerodynamic shape design and structural design, can lower start wind speed and higher wind energy utilization.
The blade is coated by gel coat resin and painted to resist corrosion by air and water.
4. the automatic-yaw tail rudder empowers this horizontal swing-tail wind turbine (the tail automatically swings in high wind and automatically return in safe wind) a higher anti-typhoon capacity.
5. permanent magnet external rotor design, reduced the resistance torque and very good heat dissipation performance compared to inner rotor generators.
6. 42NSH magnetic steel piece has stronger magnetism and higher temperature resistance.
7. F-class enameled wire could stand 150 degrees temperature; coil operation safety is ensured.
8. the body shell is dacromet coated and twice anti-corrosion painted, to ensure rust free after a longtime operation

Product Features
1.low start up speed; high wind energy utilization; beautiful appearance; low vibration.
2.Human friendly design, easy installation, maintenance and repair.
3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.the generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease
resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability.

Product Parameters

Model	FK-1000	FK-2000	FK-3000	FK-3500	FK-4000	FK-5000	FK-8000
Rated Power	1000W	2000W	3000W	3500W	4000W	5000W	8000W
maximum power	1100W	2100W	3100W	3600W	4100W	5100W	8100W
Rated voltage	24V/48V	48V/96V	48V/96V	48V/96V/110V	48V-220V	48V/220V	48V/220V
Start up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	10m/s	10m/s	10m/s	10m/s	10m/s	10m/s	10m/s
Security wind speed	40m/s	40m/s	40m/s	40m/s	40m/s	40m/s	40m/s
Package Weight	28kg	28kg	28kg	60kg	90kg	100kg	110kg
wheel Diameter	2.3m	2.3m	2.8m	2.8m	3.2m	3.2m	3.9m
Packing size	0.92m*0.56*0.25m	0.92m*0.56*0.25m	0.92m*0.56*0.25m	1.66m*0.38m*0.42m	1.63m*0.42m*0.45m	1.63m*0.42m*0.45m	4*0.42*0.45m
Number of Blade	3
Blade material	Nylon Fiber
Generator	Three-phase permanent magnet AC synchronousGenerator
Control System	Electromagnet
Yaw mode	3,5KW Folding tail /10-20 Electronic yaw
Insulation	Insulation
Tower	Cable / Independent tower
Working Temperature	-40ºC-80ºC

Packing
