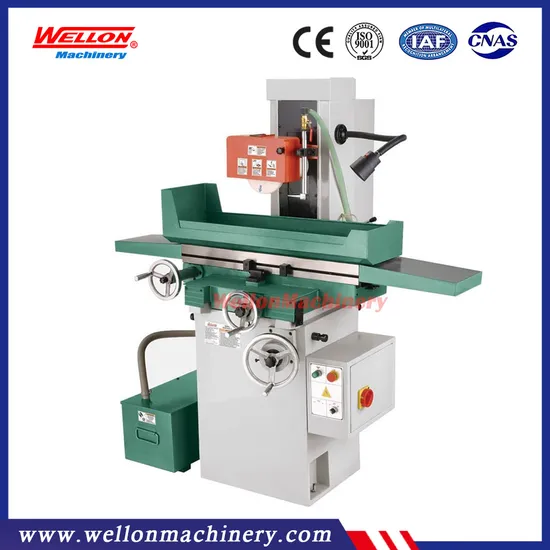

Manual Type Surface Grinder Machine M1022 Surface Grinding Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
1,Compact structure and easy operate.
2,Table longitudinal movement by hydraulic.
3,Table transverse feed by automation operate or by handle.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
Technical parameter:

Model	Unit	M1022
Max.workpiece to be Ground	mm	600x250x490
Max. Grinding Length	mm	600
Max. Grinding Width	mm	250
Distance From Table To Spindle Center	mm	490
Slide way		V-type rail with Steel-ball
V-type rail with Steel-ball	Kg	250
Table Size	mm	550x260
Number of T -Slot	Mm	12x1
Speed OF Working Table	m/min	3-23
Cross Feed On Handwheel	mm	0.02/Gra 2.5/rev
Vertical Feed On Handwheel	mm	0.01/Gra 1.25/rev
Wheel Size	mm	200x16x31.75
Spindle Speeds	rpm	2850
Spindle Motor	Kw	1.1
Coolant Pump	Kw	0.4
Machine Size	mm	1800x1400x1800
Packing Size	mm	1200x1340x1960
Gross,Net/weight	kg	900/850

Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Too box and tools
Balance stand
Leveling wedge and bolt
Wheel dresser stand
Optional accessories:
Electro magnetic chuck
Balancing stand
Cooling and dust collector
Parallel wheel dresser
Dust collector
2 axis DRO
