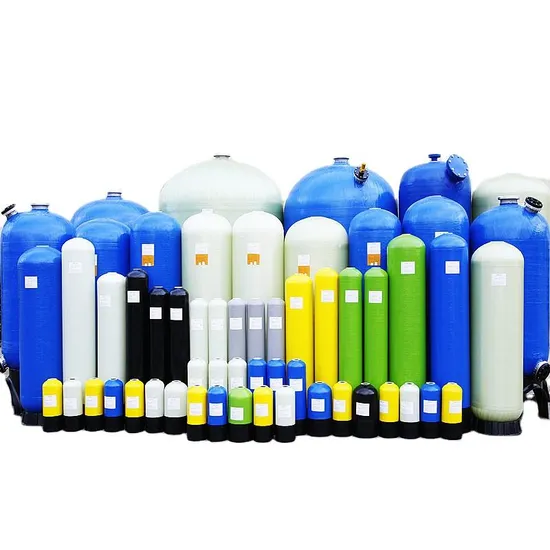

Industrial Water Treatment Sand Filter Resin Soften System Purified Water Pressure Vessel 125/150psi Customized Color Arclion FRP Pressure Tank

Product Description

Product Description A Frp Pressure Tank is a pressure vessel used to filter and soften water. It is made of food-grade PE liner, epoxy resin and fiberglass. The working pressure range of the water tank is 125PSI-150PSI, and each product will be subjected to 1.2 times more than 1.2 times of hydrostatic water pressure holding test before leaving the factory. The product has the characteristics of corrosion resistance, high strength and long service life. It provides a variety of colors and models to choose from, and can be customized according to the needs of customers. The product is widely used in petroleum, chemical industry, environmental protection, food, pharmaceutical, printing and dyeing and other industries. In addition, the product has passed the NSF certification of the United States, the ISO9001 quality system certification and the CE certification of the European Union.

Product Name	Arclion FRP Softener Water Tanks
Inner shell	Inner Liner with food grade HDPE
Outer shell	Epoxy resin + Glass fiber winding reinforcement
Certificate	NSF certification, ISO9001 ,CE certification
Fatigue cycle	100,000 fatigue tests
Bursting pressure	More than 4 times burstpressuretest
Color	The default blue and nature colors accept various color customizations
Operating pressure	8bar/125psi and 10bar/150psi
operating temperature range	1ºC--49ºC(34ºF--120ºF)
Application	Filtration, Softening, Sand filter, Carbon filter, Ion exchange, Ro system

Production process and equipment Our Advantages ARCLION® FRP Tank Flange
2.5"/4" threaded opening
Enhanced PPO modified plastic material, it conforms to the International Thread Pass Standard, high strength, good pressure-bearing, low thermal deformation rate.
6" flange opening
In the process of blow molding/rotoplastic, the built-in flange and the inner liner are formed together, and the anti-leakage effect is better; Each flange connection part has 24 standard size mounting ports, which can maximize the connection between the tank mouth and the water distributor and other accessories, so as to achieve no penetration.
Each opening surface is machined, flat, smooth, no blisters and air bubbles, so as to ensure no leakage after installing the valve.
Inner Liner With Food-Grade HDPE
5" - 40" Frp pressure tank Inner liner is suitable for blow molding without leakage.
High Quality Eopxy Resin + Glass Fiber Winding Reinforcement
ARCLION® Frp Pressure Tank is wound with high-quality epoxy resin, and is wound to the HDPE inner embryo by a tight process, which has a good pressure effect on the tank.
Frp Pressure Tank Base
Standard Base: Enhanced PE modified plastic material suitable for 5" - 16" tank;
Round Base: Enhanced PP modified plastic material suitable for 18" - 21" tank;
Tripod Base: Reinforced fiberglass material suitable for 24" - 80" tank.

All the base is produced by ourselves and is made of high quality first hand material,not used material, the damage rate and deformation rate of the base are 5%-9% lower than others.
OEM & Colors Available
Product Parameters 150PSI Frp softener tanks parameter
Pressure Test Frp pressure tank and Frp ro membrane housing laboratory
Recommended by seller

If you need anything, Please contact me!
What clents say?
Company Profile HeBei ChengDa Water Technology Co., Ltd. (Abbreviation: Chengda Water Technology), was found in 1976. It covers an area of 20 acres and has 200 employees, including 10 engineers. We are a high-tech enterprise engaged in water treatment products research and development, production and sales.
Products we produce include water treatment FRP RO membrane housing, desalination high pressure FRP membrane housing, ST/DTRO membrane housing, FRP high flow filter housing, filter housing, membrane housing for washing membranes, RO membrane,FRP composite tank for water treatment, FRP special-shaped (customized) tank, PE brine tank, water distributor, filter media, etc. We are a one-top water treatment product supplier.
The products have passed the CE certification, NSF certification, the international ISO9001 quality management system certification, and the domestic hygiene license approval documents and other standards and specifications. We also have a number of self-developed products and production equipment, and become a leader in the water treatment FRP pressure vessel manufacturing industry.
Exhibition
Packaging & Shipping
Certifications
FAQ
Q: Who are we? A: We are a professional manufacturer of frp tank, there are more than 200 employee,we established from 2017, we have exported to Oceania(30.00%),North America(20.00%),Eastern Europe(15.00%),South America(10.00%),Western Europe(10.00%),Mid East(10.00%),Northern Europe(5.00%).
Q: How can we guarantee quality?
A: Cyclic fatigue test: more than 100,000 times
Burst pressure: more than 4 times of the design pressure.
Q: What can you buy from us?
A: FRP Pressure Tank, FRP Pressure Vessels, Filter Housing, FRP Membrane housing, High Flow Cartridge Filter Housing.
Q: Why choose us?
A: Chengda found in 1976 is a manufacturer of FRP RO/DTRO/STRO membrane housing, FRP water tanks. Winder from the raw materials, production, processing, machining, accessories, assembly, quality inspection, packaging and other aspects of the strict control. Q: What services can we provide? A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:null Q: What is your terms of payment?
A: 30% T/T in advance ,70% balance before loading from factory. Q: Can you put our Logo on the product? A: Sure,we can offer logo customized service. More than 200pcs, logo printing is for free. Q: What about the lead time for mass production? A: Honestly, it depends on the order quantity and the season you place the order. But as a professional manufacturer, we can always achieve your deadline. Q: Can you offer sample before mass order?is it free or extra? A: Yes samples will be kindly arranged for quality check, we could offer the sample for free charge but do not pay the cost of freight.please contact us for more details.
