High-Performance Milling Machine with Robust Design and Lifting Table

Product Description

Introducing the extraordinary 4s Vertical Lifting Table Milling Machine, a masterpiece of engineering brilliance, meticulously manufactured in Taiwan. This cutting-edge marvel is designed to redefine standards in precision and efficiency within the metalworking industry, offering an unparalleled experience for those who demand superiority.
Product Description
Mechanical CharacteristicExpertly crafted from the finest Meehanna cast iron, this machine epitomizes exceptional rigidity and steadfast stability. It guarantees lasting performance without deformation, ensuring a robust and reliable operation that endures over time.The spindle, fortified with an advanced array of precision bearings, releases immense cutting power while delivering outstanding precision. This endows the machine with superior machining capabilities, transforming it into a true powerhouse of performance.Featuring a groundbreaking inverted hanging design, the end milling head excels in achieving extraordinary precision. Its user-friendly operation and convenient braking mechanism ensure effortless usage. For those seeking tailored features, customized solutions are readily available to meet specific requirements.The three-axis screw nuts are fashioned from high-grade phosphorus meter copper, celebrated for its remarkable wear resistance. This guarantees an extended operational lifespan, providing steadfast reliability and durability.The XY shaft slide undergoes advanced high-frequency annealing treatment, significantly bolstering wear resistance. This process extends the machine's operational lifespan, ensuring continuous superior performance.A seamlessly integrated lubrication system is meticulously engineered to ensure optimal sliding performance, maximizing machine efficiency and longevity.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a crucial factor, directly influencing processing efficiency and cutting force. An increased rotation speed amplifies cutting power, enhances surface quality, and reduces residual stress on components, resulting in exceptional machining outcomes.
Milling Machine Cutting Speed Cutting speed is pivotal in determining processing speed and quality. The optimal speed depends on factors such as material hardness, cutter material, and machine type, ensuring the best results for diverse applications. Milling Machine Processing Accuracy Processing accuracy is a fundamental performance metric, significantly impacting machining precision and part quality. It is influenced by factors such as cutting force, machine and tool rigidity, workpiece clamping accuracy, and inherent machine tool errors. Milling Machine Precision Stability Precision stability is essential for maintaining consistent machine accuracy during operation. It is affected by initial tool errors, machine tool deformation, and tool wear, all crucial for upholding quality standards.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

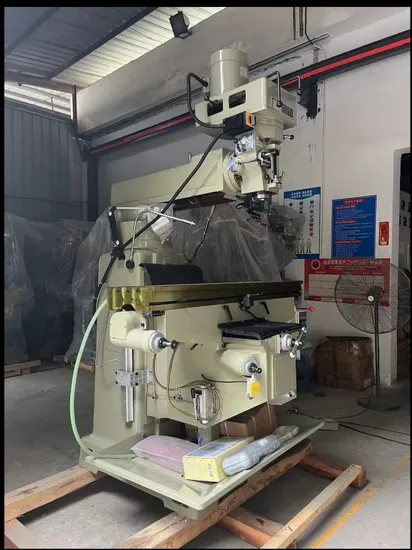

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
