Heavy Duty 24 Disc Harrow Price for Sale

Product Description

Product Description

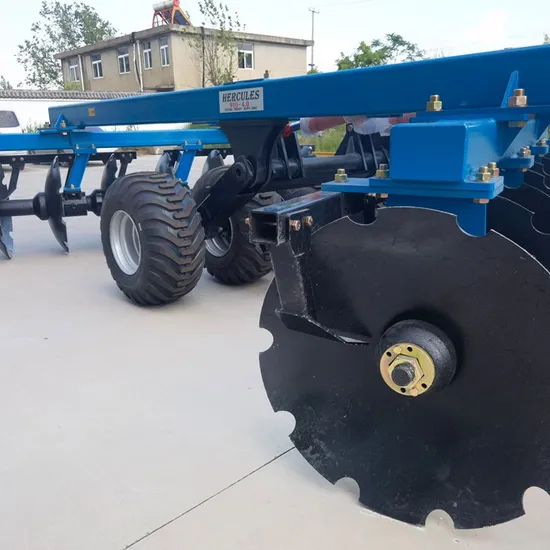

Lishi 910 Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 3m-5m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to 30cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 910mm, thickness of 12mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter

Item	unit
Mode		910-3.0	910-4.0	910-5.0
Disc No.	pcs	12	16	20
Working wideth	mm	3000	4000	5000
Space	mm	495	495	495
Disc Size	mm	36''χ12	36''χ12	36''χ12
Approx. net wetgth	kg	4760	5660	6750
Matched power	hp	185-240	240-280	>300

Company Profile

Xuzhou Zhongyang Agri Machinery Co., Ltd. Was founded in March 2018. It ia new company of Xuzhou
Kaicheng Machinery Co., Ltd. As a professional manufacturer and trading enterprise. We have about 70
employees, and our core industries include agricultural machinery disc harrows, disc ploughs, combined land
preparation machines, disc blades, trailers, planters and tractors. Agricultural machinery disc harrows working
wide include 1.8m to 7.5m heavy duty disc harrows, extra heavy duty disc harrow 710 series and 910 series,
middle duty disc harrows working width from 2.0m to 8m, light duty disc harrow from 3.6m to 7m, The matched
power from 30HP to 530HP. We also provide all kinds of implements for farms. We are located in Chinese
construction core industry base. Our products have the advantages of low cost and good quality, and are well
received by customers at home and abroad. More than 15 years of experiences, professional and constantly
innovation, professional producing line, every serious careful assembly workers, we ensure every product that
we produce has very reliable quality and stability. Now, you can see "Lishi brand agriculture working in Australia,
Africa, Europe, South America, central Asia more than 40 countries. Sincerely looking forward to provide you with
the most comprehensive field solutions and the most perfect products and services in the most crucial time.

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
