6kw Inverter 8000W 24V 48V Low Frequency Pure Sine Wave Inverter Charger
Basic Info.
Model NO.
UE Off Grid Inverter
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3-5kw
Certification
SAA, CE, ROHS, ISO9001, IEC
Brand
United Energy
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Weight
5-11kg
Rated Power
5000W
Output Voltage
220-230VAC
Input Voltage
90-280VAC
Frequency Range
50 Hz/60 Hz (Auto Sensing)
Maximum Efficiency
98-99%
AC Voltage
230VAC
Protection
Overload
Communication
RS485/WiFi (Optional)/GPRS (Optional)/DRM(Australi
Application
Solar Power System Home
Transport Package
Carton Box with Pallets
Specification
543*394*204mm/11kg
Trademark
UNITED ENERGY
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week
Product Description
Product DescriptionSpecifications

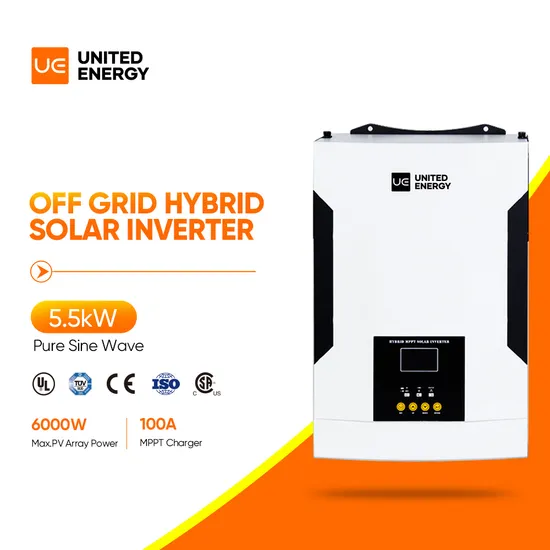

| Model | UE PRO 3.5K | UE PRO 5.5K |
| The rated power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280VAC(UPS), 90-280VAC(Appliances) | |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Model) | 230VAC + 5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency(Peak) | >90% | |
| Transfer Time | 10MS(UPS),20MS(Appliances) | |
| Wave form | Pure sine wave | |
| No load current | 1.0A | 1.1A |
| BATTERY | ||
| Battery voltage | 24VDC | 48VDC |
| Low battery alarming voltage | 22.0VDC | 44.0VDC |
| Low battery cut off protection voltage | 21VDC | 42VDC |
| Low battery recovery voltage | 23.0VDC | 46.0VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 23VDC | 64VDC |
| MPPT SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| MPPT Range at Operation Vol | 120-450VDC | |
| Maximum PV Array Open Circuit Vol. | 500VDC | |
| Number of MPPT trackers / Max output current | 100A | |
| Maximum AC Charge Current | 60A | |
| Maxmum Charge Current | 100A | |
| Maxmum Efficiency | 98% | |
| BEST PANEL CONFIGUTATION | ||
| Best Panel configuration | 300Wp*9pcs*36V(2700Wp)*2Parallel | 330Wp*9pcs*36V(2970Wp)*2Parallel |
| PHYSICAL | ||
| Products Dimension, D*W*H(mm) | 481mm*313mm*117mm | 481mm*313mm*117mm |
| Packing size, D*W*H(mm) | 543mm*394mm*204mm | 543mm*394mm*204mm |
| Net Weight (kgs) | 9.8KG | 10.5KG |
| G.W. kg | 11KG | 11.7KG |
Detailed Photos
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy's products have been widely applied in over 150 countries. UE Factory
