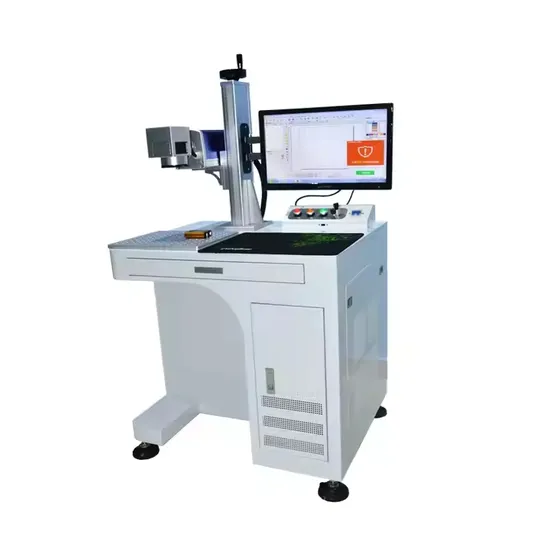

50W Nonmetal Laser Marking Machine with Three-Year Warranty Option

Product Description

Product Description

Laser parameters	Optical maser	Raycus laser
	Laser wavelength	1064nm
	Average output power	20W/30w/50w/70w/100w
	Whether or not to bring the light isolation	Bring
	Modulation frequency range	20kHz~80kHz
Galvo parameters	Maximum speed	7000mm/s
	Resolution	0.001mm
	Repositioning precision	±0.003mm
Optical output characteristics	Marking area	110*110mm,150*150mm,200*200mm,300*300mm
	Minimum line width	0.01mm
	Minimum height of characters	0.2mm
Cooling system	Cooling way	Air cooling
System properties	Laser power supply	0.5KW/AC220V/50Hz~60Hz (optional 110V)
	Manual working table stroke	Movements itinerary 285 mm (desktop type)
	Environmental requirements	0 ~ 35 ° C, 90% or humidity

Spare parts with machine:

	Equipment spare parts	Unit	Quantity
1	Remote control switch	Pcs	1
2	Dimmer piece	Pcs	1
3	Protective glasses	Pair	1

Technical documents:

	Material name	Quantity	Remarks
1	The instruction for use, maintenance instruction	2 Copies	Contain equipment operation, installation and maintenance of the content
2	Electronic archives material (CD)	1Pcs	Contains instructions, equipment components assembly decomposition, spare parts, wearing parts and map the component list, equipment program 1 set of software.

Main components:
1.1 Crafted to meet the rigorous European CE and USA FDA standards, ensuring exceptional production quality.
1.2 Customizable marking area options: 70*70mm, 110*110mm, 200*200mm, 300*300mm to suit diverse needs.
1.3 Versatile laser power options available: 20W, 30W, 50W, 60W, 70W, 80W, 100W to meet various requirements.
1.4 Equipped with the renowned Sino brand galvo head for precision.
1.5 Features the F-theta lens, celebrated for its Singaporean wavelength brand quality.
1.6 Powered by the advanced Beijing JCZ control system and EZCAD software for seamless operation.
1.7 Compatible with Photoshop, CorelDraw, and formats such as AI, PLT, DXF, BMP, DST, DWG, DXP, and more.
1.8 Includes protective glasses to ensure operator safety during operation.
Sample display
Company Profile
Company certificate

Packaging & Shipping
FAQ:
1.Q: Are you a factory or a trading company?
A: We are a factory with 13 years of expertise. We stand out as the only manufacturer in China that produces both laser machines and laser tubes.
2.Q: What is your Minimum Order Quantity (MOQ)?
A: We do not impose an MOQ requirement. Whether you order 1 set or 100 sets, we wholeheartedly support every order.
3.Q: How does your factory handle quality control?
A: Quality is our utmost priority. Every WMY laser machine undergoes a stringent testing process of 24 items. Once approved, our QA conducts an additional 48 to 72 hours of reliability testing.
Our laser machines have achieved CE and FDA certification, a testament to our commitment to excellence.
Our General Manager emphasizes, 'Producing unqualified products is tantamount to producing waste.' The WMY team is steadfast in maintaining a high standard of quality.
