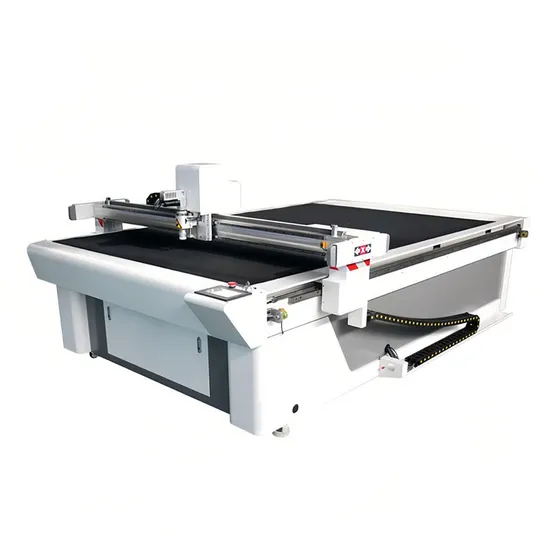

Oscillating Knife Natural Artificial Leather Cutter Automatic CNC Vibrating Blade Automatic Leather Cutting Machine

Product Description

Oscillating Knife Natural Artificial Leather Cutter Automatic CNC Vibrating Blade Automatic Leather Cutting Machine
Instruction:
A Vibration Knife Cutting Machine is a specialized cutting tool designed for precision cutting of a wide range of materials, including flexible fabrics, textiles, leather, rubber, foam, and composites. The machine utilizes high-frequency vibrations to cut through materials with minimal effort, making it suitable for both soft and rigid materials. This technology is particularly useful in industries such as garment manufacturing, automotive, upholstery, and signage.
Product Parameters
Main parameter:

Model	OM-V1625
Working Area	1600*2500mm
Positioning accuracy	0.01mm+0.1 (according to materials)
Blade	vibrating knife
Safety Device	Infrared induction, safe and reliable
Cutting Speed	100-1800mm/s
Cutting Thickness	≤50mm (according to materials)
Applicable Materials	Fiberglass cloth, carbon fiber cloth, prepreg, breathable felt, foam, plastic film, paper, honeycomb core
Graphic format support	AI,PLT,DXF,CDR, ect
Material Fixation Method	Vacuum Platform
Transport Port	Network Port
Rated Power	11KW
Control System	LCD Touch Screen
Working environment	0-40ºC,
Operating Humidity	5-95%
Power Supply	380V three phases or 220V single phase

Knife Details Information:
1. Round Knife:
Functional Features: The circular blade is driven by the motor and rotates at high speed to cut the material. The cutting speed is fast and the edge is smooth.
Applicable Materials: non-woven fabrics, protective clothing, textile fabrics, fur products, advertising materials, mesh cloth, canvas
Cutting Thickness: 10mm
Blade Diameter:16-40mm
2. Milling Cutter:
Functional Features: It can engrave, mill and hollow out non-metallic materials with high hardness above 60 degrees. It is suitable for advertising, packaging, molds, woodworking and other industries.
Applicable Materials: acrylic, aluminum-plastic board, density board, plywood, PTFE board, hard rubber, etc.
Cutting Thickness: 20mm
Blade diameter: 0-7.5mm
3. Pneumatic Vibrating Knife:
Functional Features: high-frequency vibration, can cut thicker materials and soft foam materials or materials with a hardness of less than 70 degrees
Applicable Materials: EPE, corrugated paper, honeycomb cardboard, silencer cotton, gasket
Cutting Thickness: 110mm
4. Electric Vibrating Knife:
Functional Features: high-frequency vibration, smooth cutting surface, fast cutting speed.
Applicable Materials: corrugated paper, silica gel, PVC, KT board, honeycomb board and other hard materials.
Cutting Thickness: 15mm.
Blade Angle: 16°, 26°, 39°
5. Half Cutter:
Functional Features: It can achieve half-cutting effect and can be used to cut small and fine graphics. The half-cutting effect is stable and can be precisely adjusted. The flatness of the machine is not required.
Applicable Materials: self-adhesive, reflective film, photo adhesive advertising paper, cardboard, Gaskets, etc.
Cutting Thickness: 2mm
6. V Groove Cutter:
Functional Features: Realize V-groove cutting, achieve the required cutting effect by equipping two large and small tool heads and adjusting the blade installation angle. The cutting angle can be customized.
Applicable Materials: gray card, corrugated paper, insulation board, silencer board, claw board, honeycomb panels, EPE, etc.:
Cutting Thickness: 30mm
Blade Angle: 30°, 45°, 60°, 75°, 90°
7. Drag Knife:
Functional Features: The speed is much faster than that of the vibrating knife, and the cutting edge is Smooth edge
Applicable Materials: PVC, PET, copper paper, gray card, floor leather, soft glass
Cutting Thickness: 5mm
Blade Angle: 16°, 26°, 39°
8. Pressure Wheel:
Functional Features: Indentation processing on the material surface to facilitate product molding. Different pressures in the X and Y directions can be set. Applicable materials: corrugated, cardboard, PVC, PET.
Cutting Thickness: 10mm.
Pressure Wheel Thickness: 0.5-5mm
Product Description
Key Features:
1. Vibration Cutting Technology: The knife is equipped with a vibrating blade that oscillates at a high frequency, allowing for smoother, more efficient cutting with less force required compared to traditional cutting methods.
2. Wide Material Compatibility: Suitable for cutting a variety of materials, including:
# Textiles: Fabrics, carpets, and upholstery.
# Leather: Ideal for the leather industry for high-quality cuts.
# Foam: Cutting of soft and rigid foam materials for mattresses, padding, etc.
# Rubber and Plastics: Ideal for cutting gaskets, seals, and plastic sheets.
# Composites and Laminates: Can handle multi-layer materials with precision. 3. High Precision: The vibration knife delivers precise cutting with minimal material distortion. This ensures clean, accurate edges even on complex shapes and tight curves.
4. Automatic Adjustment: The machine can automatically adjust the cutting depth and pressure, ensuring consistency and accuracy, even with varying material thicknesses.
5. Efficient and Fast: The vibrating action reduces friction, allowing the blade to move through materials quickly and smoothly. This leads to faster production times with high-quality results.
6. Minimal Material Damage: Since the blade vibrates at high frequency, there is little drag on the material, minimizing any damage to the surface. This is especially beneficial for delicate or soft materials like textiles and leather.
7. User-Friendly Interface: Equipped with a simple control system, the machine can be operated by individuals with minimal training. Many models also feature touchscreens for easy navigation and setting adjustments.
8. Customizable Blade Options: Depending on the material being cut, users can select from various blade types (such as straight blades, round blades, or serrated blades) for optimal results.
9. Dust-Free Operation: Many vibration knife cutting machines include an integrated vacuum system to collect dust and debris, maintaining a clean workspace and improving air quality.
10. Low Maintenance: The system is designed for durability with minimal wear on the cutting components, making it cost-effective and requiring less frequent maintenance.
Applications: Garment and Apparel Industry: Cutting fabrics for clothing and textile products. Automotive: Cutting foam, leather, and other materials used in upholstery and automotive interiors. Signage: Precision cutting of vinyl, plastics, and foam for signs, advertisements, and displays. Packaging: Cutting of materials like foam, rubber, and cardboard for packaging solutions. Aerospace & Aviation: Cutting composites and specialized materials used in aviation components. Package and Delivery:
Anti-Collision Protection: All machine components are securely covered with soft materials like pearl wool, offering protection against damage during transit.
Full Film Wrapping: The entire machine is wrapped in protective film to guard against dust, moisture, and minor impacts.
Fumigated Wooden Box: The machine is packed in a fumigated wooden crate, complying with international shipping standards for safety and security.
Reinforced Base: The crate is equipped with a solid iron base socket, ensuring stable handling and easy lifting during delivery.
Warranty and After-Sales Service:
We provide comprehensive services to ensure customer satisfaction. Our commitments include:
1. 1-Year Warranty: Enjoy a 1-year warranty on the entire machine, covering defects not caused by human error.
2. Online After-Sales Support: Our dedicated support team is available from Monday to Sunday, 9 AM to 10 PM, via WhatsApp, Skype, WeChat, and email.
3. Lifetime Maintenance Services: We offer lifetime maintenance services even after the warranty period expires.
4. Hardware and Software Support: Customers will receive a wide range of hardware and software support after the warranty ends, including free upgrades.
5. Door-to-Door Service: Local service options are available to provide you with personalized support.
Customer Feedback:
Certifications
Certifications:
FAQ
Additional Order Information: 1. Lead Time: Typically, orders ship within 10-12 days if in stock. For custom orders, lead times range from 20 to 30 days.
2. Minimum Order Quantity (MOQ): Our MOQ is 1 piece, except for customized orders.
3. Tax Information: To help reduce or avoid taxes, we can declare a lower value on shipping documents upon request.
Our company:

Jinan Omai CNC Machinery Co., Ltd. stands as a leading manufacturer, specializing in a diverse range of laser technologies, including laser cleaning machines, welding machines, fiber laser cutting, and marking machines. With a decade of industry expertise, our proficient engineers, skilled assembly and testing teams, and dedicated after-sales support ensure superior quality products and services. We accommodate small batch orders, offer OEM and ODM services, and provide bespoke solutions crafted to your unique specifications. Our esteemed global clientele spans across the USA, UK, Taiwan, South Korea, Malaysia, Thailand, Australia, Brazil, Russia, South Africa, and beyond.
