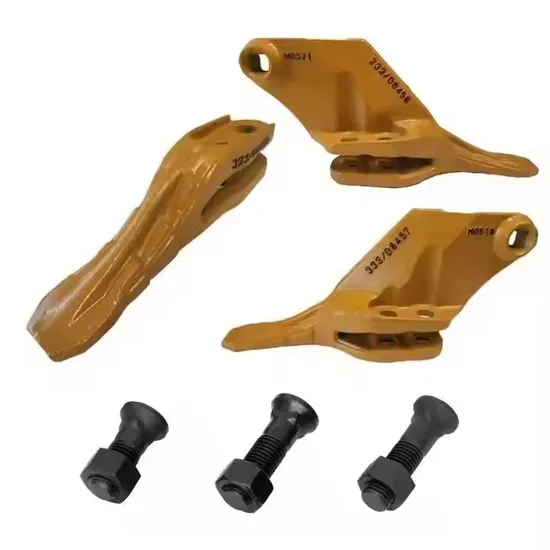

53103205/208/209excavator Bucket Tooth Jcb Loader Side Cutters Bucket Teeth Types
| US$10.00 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
205/208/209
Condition
New
Hardnss
HRC 47-52
Impact Value
17-21j
Unit Weight
2.7/5.6
Transport Package
Plywood Case
Trademark
Customer′s Request
Origin
China
HS Code
8431499900
Production Capacity
60000PCS/Year
Product Description
Product DescriptionMechanical Property
| Material | Hardness | V-Norch | Tensile | Elongation | Yeild |
| T1 | 47-52HRC | akv>=16J | >=1499Mpa | >=3% | >=1040N/mm2 |
| T2 | 48-52HRC | akv>=20J | >=1500Mpa | >=4% | >=1100N/mm2 |
| T3 | 48-52HRC | akv>=20J | >=1550Mpa | >=5% | >=1100N/mm2 |
Bucket Teeth Catalogue
| PART NO. | WEIGHT (KG) | DESCIPTION | FAMILY/MODEL |
| 135-9300/4T2203RP | 9 | TIP HEAVY DUTY | J300 |
| 135-9400/7T3403RP | 17 | TIP HEAVY DUTY | J400 |
| 135-9600 | 54 | TIP HEAVY DUTY | J600 |
| 135-9800 | 94.6 | TIP HEAVY DUTY | J800 |
| 138-6451/9W1453RP | 23 | TIP HEAVY DUTY | J460 |
| 168-1451 | 11 | TIP HEAVY DUTY | J460 |
| 144-1358/4T2353RP | 10.3 | TIP HEAVY DUTY | J350 |
| 144-1358 | 11 | TIP HEAVY DUTY | J350 |
| 138-6552/9W1553RP | 29 | TIP HEAVY DUTY | J550 |
| 138-6552 | 30.5 | TIP HEAVY DUTY | J550 |
| 1U0257 | 7.7 | BOLT-ON ADAPTER | J250 |
| 1U0307 | 11 | BOLT-ON ADAPTER | J300 |
| 1U1254 | 5.3 | WELD-ON ADAPTER | J250 |
| 1U1304 | 7.6 | WELD-ON ADAPTER | J300 |
| 1U1350 | 9.8 | WELD-ON ADAPTER | J350 |
| 1U1354 | 15 | WELD-ON ADAPTER | J350 |
| 1U1357 | 17.8 | WELD-ON ADAPTER | J350 |
| 1U1454 | 17.3 | WELD-ON ADAPTER | J450 |
| 1U1857 | 10 | UNIT TOOTH BOLT ON | J250 |
| 1U1858 | 15.1 | UNIT TOOTH BOLT ON | J300 |
| 1U1859 | 15.1 | UNIT TOOTH BOLT ON | J300 |
| 1U1877 | 12.4 | UNIT TOOTH BOLT ON | J300 |
| 1U1878 | 23 | UNIT TOOTH BOLT ON | J300 |
| 1U1879 | 23 | UNIT TOOTH BOLT ON | J300 |
| 1U1888 | 29.5 | UNIT TOOTH BOLT ON | J350 |
| 1U1889 | 29.5 | UNIT TOOTH BOLT ON | J350 |
| 1U2208 | 3.8 | CORNER ADAPTER LH | J200 |
| 1U2209 | 3.8 | CORNER ADAPTER RH | J200 |
| 1U3201 | 1.45 | TEETH SHORT | J200 |
| 1U3202 | 1.35 | TEETH STANDARD LONG | J200 |
| 1U3202P | 1.4 | TEETH ROCK | J200 |
| 1U3202TL/9W8209 | 1.35 | TEETH TIGER | J200 |
| 1U3202WTL/135-8208 | 1.35 | TEETH TWIN TIGER | J200 |
| 1U3209 | 1.25 | TEETH PENETRATION | J200 |
| 1U3251 | 2.7 | TEETH ROCK | J250 |
| 1U3252 | 2.9 | TEETH STANDARD LONG | J250 |
| 1U3252TL/9W8259 | 2.7 | TEETH TIGER | J250 |
| 1U3252WTL/135-8258 | 3.5 | TEETH TWIN TIGER | J250 |
| 1U3252RC | 3.5 | TEETH ROCK CHISEL | J250 |
| 1U3301 | 4 | TEETH SHORT | J300 |
| 1U3302 | 4.3 | TEETH STANDARD LONG | J300 |
| 1U3302 | 4.7 | TEETH STANDARD LONG | J300 |
| 1U3302TL/9W8309 | 4.3 | TEETH TIGER | J300 |
| 1U3302WTL/135-9308 | 4.8 | TEETH TWIN TIGER | J300 |
| 1U3302RC | 4.9 | TEETH ROCK | J300 |
| 1U3302RC-2 | 4.8 | TEETH ROCK | J300 |
| 1U3302RCL | 4.95 | TEETH FISH SCALE | J300 |
| 1U3302R/9J4302 | 4.5 | TEETH ROCK | J300 |
| 1U3302SYL | 5.2 | TEETH SYL | J300 |
| 1U3351 | 5.5 | TEETH SHORT | J350 |
| 1U3352 | 5.6 | TEETH STANDARD LONG | J350 |
| 1U3352 | 5.8 | TEETH STANDARD LONG | J350 |
| 1U3352 | 6 | TEETH STANDARD LONG | J350 |
| 1U3352R/9J4352 | 6 | TEETH ROCK | J350 |
| 1U3352TL/9W2359 | 6 | TEETH TIGER | J350 |
| 1U3352WTL | 7 | TEETH TWIN TIGER | J350 |
| 1U3352RC | 7 | TEETH ROCK CHISEL | J350 |
| 1U3352RC | 8.2 | TEETH ROCK | J350 |
| 1U3352RCK | 6.5 | TEETH ROCK | J350 |
| 1U3352SYL | 7.8 | TEETH SYL | J350 |
| 1U3452 | 12.65 | TEETH STANDARD LONG | J460 |
| 1U3452SYL | 11.1 | TEETH SYL | J460 |
| 1U3452TL/9W8452TL/7T8459 | 13.5 | TEETH TIGER | J460 |
| 1U3452C | 15 | TEETH ROCK TEETH | J460 |
| 1U3452RC | 13.4 | TEETH ROCK | J460 |
| 1U3452RC | 15 | TEETH ROCK | J460 |
| 1U3552TL | 22.5 | TEETH | J550 |
| 1U3552RCL | 22.7 | TEETH FISH SCALE | J550 |
| 1U3552WT/9W8552WTL/138-6558 | 18 | TEETH TWIN TIGER | J550 |
| 2D5572/6Y5230 | 1.3 | SCARIFIER TEETH | |
| 2V7053 | 3.46 | COMPACTOR | |
| 3G0169 | 4 | ADAPTER | J250 |
| 3G3357 | 18 | BOLT-ON ADAPTER | J350 |
| 3G4258 | 10 | CORNER ADAPTER | J250 |
| 3G4259 | 10 | CORNER ADAPTER | J250 |
| 3G4307/4T4307 | 12.7 | ADAPTER | J350 |
| 3G4308 | 15.5 | CORNER ADAPTER | J300 |
| 3G4309 | 15.5 | CORNER ADAPTER | J300 |
| 3G5307 | 14 | BOLT-ON ADAPTER | J300 |
| 3G5358 | 24.3 | CORNER ADAPTER | J350 |
| 3G5359 | 24.3 | CORNER ADAPTER | J350 |
| 9W1304/3G6304 | 7.8 | WELD-ON ADAPTER | J300 |
| 3G6305 | 7.5 | WELD-ON LEFT ADAPTER | J300 |
| 3G6306 | 7.5 | WELD-ON RIGHT ADAPTER | J300 |
| 3G9307 | 14 | BOLT-ON ADAPTER | J300 |
| 3G8308 | 17 | CORNER ADAPTER | J300 |
| 3G8309 | 17 | CORNER ADAPTER | J300 |
| 3G8319 | 14.3 | END BIT | |
| 3G8320 | 14.3 | END BIT | |
| 3G8354 | 9 | WELD-ON ADAPTER | J350 |
| 3G8354/8J4310 | 9 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | J350 |
| 3G8355/6I6355 | 9.1 | WELD-ON ADAPTER | J350 |
| 3G8356/6I6356 | 9.1 | WELD-ON ADAPTER | J350 |
| 4T1204 | 2.08 | WELD-ON ADAPTER | J200 |
| 9J4203/4T2203 | 1.8 | TEETH ABRASION | J200 |
| 4T2253 | 3.5 | TEETH ABRASION | J250 |
| 4T2303 | 5.3 | TEETH ABRASION | J300 |
| 4T4307 | 12.7 | BOLT-ON ADAPTER | J300 |
| 4T4501/4T5501 | 25 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T5503 | 29.3 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T5502/4T4502 | 28 | RIPPER TEETH | D9L,D10,D10N,D11,D11N |
| 4T6694 | 10.2 | SEGMENT | |
| 4T4702RC | 50 | TEETH ROCK | J700 |
| 4T4704 | 72 | WELD-ON ADAPTER | J700 |
| 4K6936 | 1.6 | TEETH | 23 |
| 5B6251 | 5.5 | RIPPER SHANK | |
| 5V4311 | 9.5 | RIPPER SHANK | |
| 6I6354 | 9.2 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9 | WELD-ON ADAPTER | J350 |
| 6I6354 | 9.3 | WELD-ON ADAPTER | J350 |
| 6I6404 | 12.8 | WELD-ON ADAPTER | J400 |
| 6I6404 | 13 | WELD-ON ADAPTER | J400 |
| 6I6405 | 12.3 | WELD-ON ADAPTER | J400 |
| 6I6406 | 12.3 | WELD-ON ADAPTER | J400 |
| 6I6464/8E6464 | 20.5 | WELD-ON ADAPTER | J460 |
| 6I6464 | 20.3 | WELD-ON ADAPTER | J460 |
| 6I6464 | 21 | WELD-ON ADAPTER | J460 |
| 6I6554/1U1553 | 34 | WELD-ON ADAPTER | J550 |
| 6I6554 | 34 | WELD-ON ADAPTER | J550 |
| 6I6602 | 34 | TEETH STANDARD LONG | J600 |
| 6I6602RC | 39 | TEETH ROCK | J600 |
| 6I6604 | 54 | WELD-ON ADAPTER | J600 |
| 6Y0309 | 5.2 | RIPPER TEETH | D4, 941, 951,955, 963,12, 14, 130, 140,143H, 160H |
| 6Y0359/6Y0352 | 11 | RIPPER TEETH | 16,973, 977,D5, D6,D7,983, |
| 6Y0469/1U1567 | 23.5 | BOLT-ON MONOBLOCK TEETH | J350 |
| 6Y2553 | 34 | TEETH HEAVY DUTY ABRASION | J550 |
| 6Y3222 | 3.4 | TEETH STANDARD LONG | J225 |
| 6Y3222RC | 2.8 | TEETH ROCK | J225 |
| 6Y3224 | 3 | WELD-ON ADAPTER | J225 |
| 6Y3254 | 3.8 | WELD-ON ADAPTER | J250 |
| 6Y5230 | 1.3 | SCARIFIER TEETH | 12, 14, 112,130, 140 |
| 6Y7409 | 8.8 | TEETH PENETRATION | J400 |
| 6Y8229 | 2 | TEETH PENETRATION | J225 |
| 6Y6335/9W1879/135-8203 | 3.3 | BOLT-ON MONOBLOCK TEETH | J200 |
| 7I7609 | 30 | TEETH PENETRATION | J600 |
| 7K6908 | 6.7 | ||
| 7T3401 | 8.2 | TEETH SHORT | J400 |
| 7T3402 | 9 | TEETH STANDARD LONG | J400 |
| 7T3402 | 10.5 | TEETH STANDARD LONG | J400 |
| 7T3409TL/6Y5409 | 9.5 | TEETH TIGER | J400 |
| 7T3402WTL/135-9408 | 10.4 | TEETH TWIN TIGER | J400 |
| 7T3402RC | 9.5 | TEETH ROCK CHISEL | J400 |
| 7T3402RC | 9.88 | TEETH ROCK CHISEL | J400 |
| 7T3403 | 13.5 | TEETH ABRASION PENETRATION | J400 |
| 227-3665 | 5 | SIDE CUTTER | D424 . |
| 227-3666 | 5 | SIDE CUTTER | D424 . |
| 112-2487/096-4747 | 11.2 | SIDE CUTTER | E200/E320 |
| 112-2488/096-4748 | 11.2 | SIDE CUTTER | E200/E320 |
| 7Y0358 | 18.9 | SIDE CUTTER | E330 |
| 7Y0359 | 18.9 | SIDE CUTTER | E330 |
| 8E1637 | 16 | UNIT TOOTH BOLT ON | J300 |
| 8E4222 | 3.1 | TEETH HEAVY DUTY LONG | J225 |
| 8E0464 | 23.5 | ADAPTER | J460 |
| 8E4402 | 11.5 | TEETH HEAVY DUTY LONG | J400 |
| 8E6464/6I6464 | 20.6 | WELD-ON ADAPTER | J460 |
| 8E5308 | 17.6 | CORNER ADAPTER | J300 |
| 8E5309 | 17.6 | CORNER ADAPTER | J300 |
| 8E5358 | 23 | CORNER ADAPTER | J350 |
| 8E5359 | 23 | CORNER ADAPTER | J350 |
| 8E8418 | 76 | RIPPER SHANK | D8,D9 |
| 8J7525 | 1.4 | WELD-ON ADAPTER | J200 |
| 8J7525 | 1.5 | WELD-ON ADAPTER | J200 |
| 9F5124 | 5.4 | SCARIFIER SHANK | 12, 14, 112,130, 140 |
| 9J4207 | 3.2 | BOLT-ON ADAPTER | J200 |
| 9J4259 | 2.5 | TEETH PENETRATION | J250 |
| 9J4309 | 3.6 | TEETH PENETRATION | J300 |
| 9J4359 | 5.5 | TEETH PENETRATION | J350 |
| 9J6586 | 24 | RIPPER SHANK-STRAIGHT | D4, 941, 951,955, 963,12, 14, |
| 9J8910/6Y0309 | 5.2 | RIPPER TEETH | D4, 941, 951,955, 963,12, 14, |
| 9J8920/6Y0359 | 11 | RIPPER TEETH PENETRATION LONG | 16,973, 977,D5, D6,D7,983, |
| 9J8929 | 8 | WELD-ON ADAPTER | J300 |
| 9N4252 | 4.2 | TEETH HEAVY DUTY LONG | J250 |
| 9N4253 | 4.55 | TEETH HEAVY DUTY ABRASION | J250 |
| 9N4302 | 5.5 | TEETH HEAVY DUTY LONG | J300 |
| 9N4303 | 7.2 | TEETH HEAVY DUTY ABRASION | J300 |
| 9N4352 | 8.6 | TEETH HEAVY DUTY ABRASION | J350 |
| 9N4353 | 11 | TEETH HEAVY DUTY ABRASION | J350 |
| 9N4452 | 17.5 | TEETH HEAVY DUTY LONG | J460 |
| 9N4453 | 21.4 | TEETH HEAVY DUTY ABRASION | J460 |
| 9N4552 | 26 | TEETH HEAVY DUTY LONG | J550 |
| 9W2451 | 13.8 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W2451 | 15.7 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W2452 | 17 | RIPPER TEETH | D8K,D8L,D8N,D9H,D9N |
| 9W4551 | 46.5 | RIPPER TEETH | D11SS D11DR |
| 9W8451 | 11.5 | TEETH SHORT | J460 |
| 9W8452 | 12.4 | TEETH STANDARD LONG | J460 |
| 9W8452R/9J4452 | 11.5 | TEETH ROCK | J460 |
| 9W8452RC/1U3452RC | 15 | TEETH ROCK CHISEL | J460 |
| 9W8452T/1U3452TL/7T8459 | 13.5 | TEETH TIGER | J460 |
| 9W8452WTL/138-6458 | 15 | TEETH TWIN TIGER | J460 |
| 9W8459 | 10 | TEETH PENETRATION | J460 |
| 9W8551 | 15.5 | TEETH SHORT | J550 |
| 9W8552 | 19.5 | TEETH STANDARD LONG | J550 |
| 9W8552RC | 23 | TEETH ROCK | J550 |
| 9W8552RCL | 22.7 | TEETH FISH SCALE | J550 |
| 9W8552T/1U3552TL/9W6559 | 22.5 | TEETH TIGER | J550 |
Company Profile
Ningbo Yinzhou Gonuo Hardware Co.,LTD is a professional stamping parts manufacturer which integrating molds development, mold and product manufacturing.
We provide customers with various types of precision casting parts stamping parts, box sheet metal parts, and large cold parts based on customer's drawing or samples. We support OEM&ODM, like processing methods, materials, surface treatment, package, customer logo and so on.
Now our products are exported to many countries, we win the client's trust through the spirit of honesty and respect.
WORK SHOP
CASTING EQUIPMENT
MACHINING EQUIPMENT
INSPECTION
Packaging & Shipping
FAQ
1. How long is ur delivery time?
Mostly depending on ur QTY. Generally 45 workdays after payment received!
2. What is ur minimum qty of products?
MOQ is 500 piece.
3. What is ur surface treatment?
We can do galvanized, Yellow Zinc Plated, black and HDG and others as request.
4. What is ur material?
We can provide alloy steel, stainless steel, carbon steel, brass and aluminum.
5. Do u provide samples?
Yes! FREE SAMPLE!!!
6. Where is the port of shipment?
Ningbo and Shanghai.
7. What is ur payment term?
30% T/T in advance, 70% against copy of B/L!
>> Concrete Crack Depth Testing Gauge
>> Promotional Good Price Vacuum LNG Marine Fuel Tank
>> MAICTOP AUTO PARTS Black Rear View LED Side Mirror FOR CAMRY USA 2012-2017
>> Thermal Insulated Custom Large Pizza Hot Waterproof Order Made Food Delivery Bag
>> Automatic Closed-Loop Control Coating Slot Die Coating Mould Head for Lithium Battery Coating
>> LINGKE new product analog type 20kHz 2600W high quality ultrasonic welding machine fabric
>> Cheapest Metal Aluminum Stylus Ballpoint Pen with Soft Rubber Touch Screens Personalized Custom Logo for Mobile Phone Ballpen
>> Zy8800ND High Speed Direct Drive Lockstitch Industrial Sewing Machine
>> Kc259-225 Initial Yarn Twisting Machine Price for Yarn
>> Diesel Mobile Hydraulic Cement Mixer Rdcm350
>> EVA Sole Lady Sandal Colorfull Shoes
>> Modified Proctor Moulds and Rammers For Soil
>> Brazilian Human Hair Weaves Peruvian Virgin Hair Weft 100% Natural Human Hair
>> Bench Grinder with Dust Removal Device M3320
>> Taijia High Precision Ultrasonic Thickness Gauge measuring instrument Thickness Meter
>> Rectangular Ultra Slim Matte Black Metal Frame Edge Lit Illumiated Bathroom Mirror
>> High Precision CNC Centerless Grinding Machine Cylindrical Grinder for Long Bars, Bearings
>> Automatic Fabric Slitter Cutter Non Woven Fabric Strip Die Slitting Cutting Machine
>> Stainless Steel A2/A4 Hex Machine Screws Inox AISI 304/316 Hexagon Head Bolts
>> Advanced Industrial Metal Plate Hot Air Drying System
>> Powdered Pharmaceuticals Medicine Industrial Circular Vibrating Sieves and Screens
>> European Style UPVC Sliding Door with Decorative Grill
>> Hot Sale Auto Weather Strip Door Rubber Seal For Toyota Hilux Vigo 2004 - 2015
>> T3 Series Sandwich Insertion Ultrasonic Water Meters Industrial Dual Channel Ultrasonic Water Meter Powered By Battery
>> canton fair recommend hydraulic plastic baling machine
>> Italy Technology 3200*2000mm Cement Terrazzo Tile Production Line / Artificial Stone Production Line
>> Best Price 50Ohm Coaxial Cable LMR400 LMR600 CCA Conductor LMR-400 Coax Cable
>> 100% Blue Red Beige White Restaurant Party Wedding Cover Custom Embroidered Printed Fabric Linen Round Table Cloth
>> Water Pipe Fitting PVC Injection Molding Machine
>> Electric Boat Engine Outboard Motor Marine Motor for Variety of Boats
