Fiber Laser Metal Cutting Machine with Rotary to Cut Square Round Pipe

Product Description

Product Description
High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running ; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within + / - 0.05 mm.
Independent, professional smoke dust, smoke dust effect is good, good working environment of the factory. 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine
Main Configuration

Thick steel welded bed structure
Raytools brand laser head, can be optional OSPRI brand laser head
water chiller YEYU or HANLI brand
Rotary attachment for square and round pipe cutting
Japanese FUJI servo motor, also can be optional inovance or DELTA control system
Control system, can bbe optional weihong, cypcut, jiaqiang, etc
Auto focus laser head
Auto oil lubricating system
knife table with dust cover
Laser source , can be optional MAX, RAYCUS, etc brand
exchangable table with rotary attachment
DSP
torch height controller
Application

Applicable materials: professional used to cut thin sheet metal, in a variety of high-quality cutting 0.5 ~ 10mm carbon steel sheet, 0.5 ~ 4mm stainless steel plate, can also be cutting aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials. CNC 1kw 2kw 3kw Fiber Metal Laser Cutting Machine For Sale CNC pipe Fiber Laser Cutting Machine for Metal Sheet&Tube Pipe Cutting 800W 1000W 2000W Stainless Steel Metal Tube Pipe Fiber Laser Cutting Machine Price Cnc Fiber Laser Metal Pipe / Tube Cutting Machine For Fire Control Industry square pipe fiber laser cutting machine for stainless steel tube
Product introduction
1, photoelectric conversion efficiency can reach 30%, two times that of CO2;
2, less consumption of power source, CO2 is 20% ~ 30%;
3, no laser working gas, can save a lot of laser maintenance cost;
4, optical fiber transmission, without reflection lens, do not need to adjust the light path.
Product features:
1,Gantry double drive structure, smooth and reliable movement;
2,Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;
3,Precision gear rack drive, with high response and high precision servo motor;
4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;
5,High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect;
6,A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable;
7,CNC system is concise and easy operation, low requirements for the operator;
8,Cutting graphic input multiple formats, powerful draw and edit graphics function;
9,Special cutting software, cutting technology experts, data call functions; Product Parameters

Model	ZK1530F fiber laser cutting machine
Working area	1500*3000mm
Control System	Cypcut2000E EtherCAT Bus controller
Laser head	Raytools brand laser cutting head
Guide rail	Taiwan Hiwin linear guide rail
Transmission	Z axis Taiwan TBI Balls Screw transmission,X,Y axis YYC gear and rack
Electronic Components	French MOTOVARIO reducer
Motor	Japan FUJI servo motor and driver Y 1.3kw*2, X 850w, Z axis 400W with brake
Max Cutting Speed	35m/min
X axis max speed	65m/min
Y axis max speed	70m/min
Z axis max speed	30m/min
X axis max acceleration	1G
Y axis max acceleration	1G
Cooling Way	Water Cooling
Min line width	0.1mm
Power Requirements	380v/220V, 50/60Hz, 3phase
Continuous Working Time	24Hours

Packaging & Shipping
This machine can be shipped by LCL or FCL, if by LCL, need a plywood box to protect it

FAQ

Q1.Before send me an inquiry of the fiber laser cutter , it is better for you to provide me the following information:what is the working area you need? And what metal and thickness you need cut, so we can recommend you suitable laser power.Q2. If we don't know how to use the machine, can you teach us?Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.Q3. How long is the delivery time?For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.Q4. Quality Control:The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.Q5. Do you arrange shipment for the machines?Yes. we can do FOB or CIF or DAP price,we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves.Q6. Do you have certificate of the laser machineYes,we have CE and FDAQ7.How to place order?1. After confirming order details, we will make Proforma Invoice2. After receiving 30% deposit will start test machine . Ensure the excellent performance.3. After tested the machine, will pack and send out.4. When you received the machine, there have user manual and video guide you install,operate and maintain.At the same time our engineer will provide online service online.
Sample photos

We are a professional manufacture of cnc machine , we produce and export machines by our own international trading department.
We also have other models fiber laser cutting machine designs, you can choose the one you like, of course, if you are distributors, and you have your own outlook design, also please send me, we can customize them for you
This is 3015 model fiber laser cutting machine for metal plate cutting
This is 6025 model bigger size fiber laser cutting machine with exchangable table , with big closed cover
This is 3015 model fiber laser cutting machine with exchangable table and big closed cover

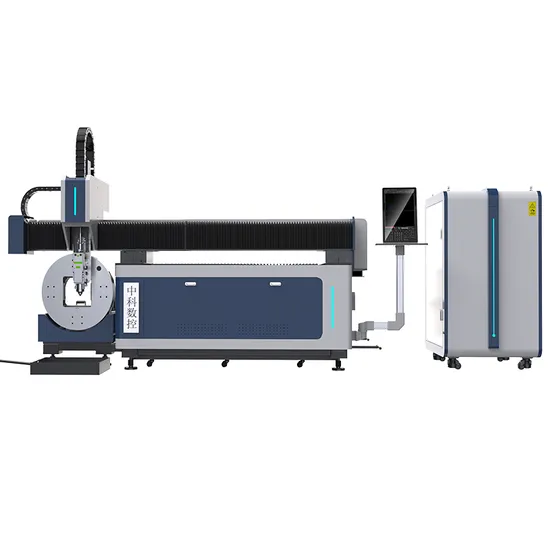

Rotary attachment model fiber laser cutting machine, this machine has double function, can be used for cutting steel plate sheet and steel pipe
Welcome to visit our factory and machines
