Micro-OLED 0.71 Inch Original Night Vision Sight Telescope Display

Product Description

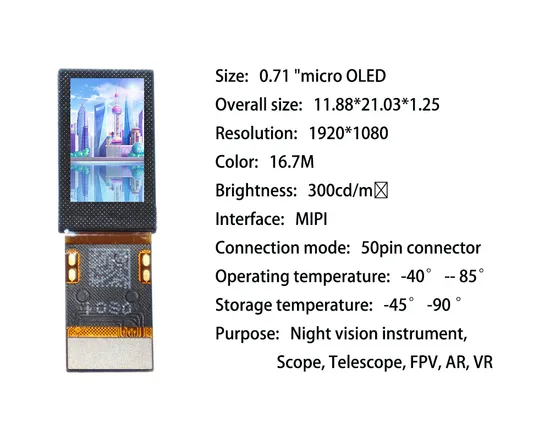

0.71 inch diagonal, FHD resolution (1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption..

item	Specification data
Small-size	high resolution 0.71" FHD Display
Potential applications	Virtual Reality application(AR/VR), Head mounted displays, Near-Eye Displays etc.
AP Operated Resolution	1920 x 1080 up to 90Hz
Full color mode	16.7M colors
MIPI Differential Input	CLKP,CLKN DATAP0,DATAN0 DATAP1,DATAN1 DATAP2,DATAN2 DATAP3,DATAN3

When Reset happens in Sleep-out mode, the driver IC will enter blanking sequence with the maximum time 120 msec. Then driver IC will remain in blanking state and return IC's default state. During reset complete time (tRT), data in OTP will be re-loaded and latched to internal registers. This data re-load is done every time when there is an H/W reset and completes within 20 msec after the rising edge of RESX. Therefore, it is necessary to wait at least 20 msec after releasing the RESX before sending commands. Moreover, the Sleep-out command cannot be sent in 120 msec. Spike (less than 20ns width) Rejection can also be applied during a valid reset pulse. Reset time @ VDDI=1.65V to 1.95V, AVSS=VSS=MVSS=0V, Ta=-40°C to 85°C
