Mc1200 1270mm Vinyl Radium Sticker Print and Autocontour Cutting Plotter 1828mm Machine
Basic Info.
Model NO.
DSA-MC1200
Usage
Cut Vinyl Sticker
Max Cutting Width
1270mm
Size
1590*330*400mm
Cutter Pressure
0-500g/0-1000g (Optional Configuration)
Paper Feed Width
1370mm
Cutting Speed
800mm/S
Max Cutting Speed
800mm/S
Mechanical Precision 0.05mm
0.05mm
Product Name
Plotter Printer
Voltage
110/220V
Cutting Width
1270mm
Model
Mc1200(48′′)
Key Words
Vinyl Cutter Machine
Max Paper Feed Width
1370mm
Repeatable Precision
< +-0.1mm
Transport Package
Export Wooden Box Packaging
Specification
custom
Trademark
custom
Origin
Guangdong, China
Production Capacity
100 Set/Sets Per Month
Product Description

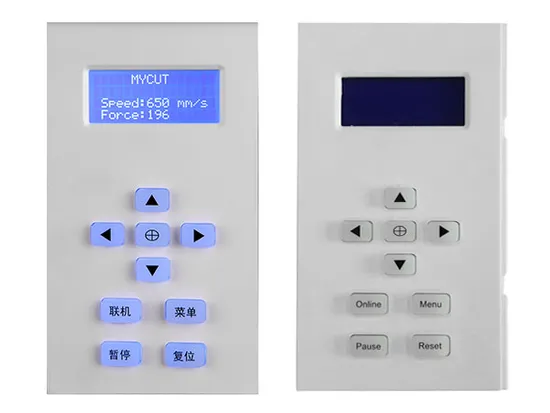

Product Description Strong Integrated Carriage wider range of applications Three Interfaces U Disc Port(MH,MG,MS Series only),work without Computer Big LCD Display easy-touch silicone keypad with highlight Strong Pinch Roller attractive and durable Integrated Grit Roller High precision Standard Blade Each machine with 1 blade holder,3 blades Specification| Model | MC330(12'') | MC630(24'') | MC1200(48'') | MC1500(59'') |
| Media Way | Desk cutter | Floor Stand | Floor Stand | Floor Stand |
| Main Board | High-performance & intelligent ARM 32 CPU; 128MB memory | |||
| Driver | High speed stepping motor, micro-step driver | |||
| Max Paper Feed Width | 430mm | 730mm | 1370mm | 1600mm |
| Max Cutting Width | 330mm | 630mm | 1270mm | 1500mm |
| Max Cutting Speed | 800mm/s | |||
| Cutting Force | 0-500g/0-1000g (optional configuration) | |||
| Mechanical Precision | 0.05mm | |||
| Repeatable Precision | < +-0.1mm | |||
| Plotter Instruction | DM-PL/HP-GL Automatic Identification | |||
| Interfaces | USB /Ethernet port / U-Disc port | |||
| Power Supply | AC110V /220V±10%, 50Hz/60Hz | |||
| Software | Contour cutting function; software signmaster included | |||
| Noise at Work | ≤45 DB | |||
| External Dimension | 750*330*400mm | 1045*330*400mm | 1590*330*400mm | 1890*330*400mm |
| Shipping Weight | 15kgs | 23kgs | 33kgs | 50kgs |
MC Series vinyl cutter can work without computer.Just output you file to U-Disc.More convinient! Also support internet port.
Another function is repeat function.
1.With CCD camera (automatic contour cut function)
2.High force to cut reflective film/retro film 3M (optional )
3.Real high speed 128MB memory
4.High precision steel roller: guaranteed 5m without deviation of paper feeding
5.Low noise:ultra quiet design
6.High performance 32-bit processor with ARM Cortex-M3
7.Work with U disc directlly Common materials wholesale Metal Vinyl Film Laser Vinyl Film Flock Vinyl Film Reflectice Vinyl Film Glitter Vinyl Film PVC Matte Vinyl Film PVC Vinyl Film PU Vinyl Film PVC Heat Transfer Vinyl Film Luminous Vinyl Film PU lattice Vinyl Film Eco Solvent Vinyl Film Cutting Plotter Knife Cutting Plotter Software Effect Display Enterprise Show
