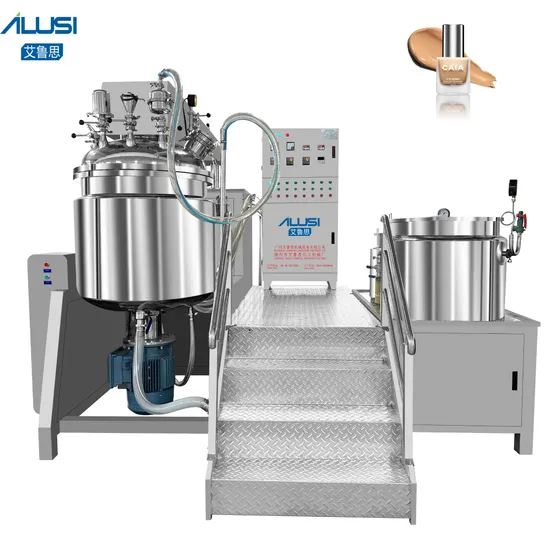

Cosmetic Machine Production Line High Shear Homogenizer Mixer Cosmetic Cream Lotion Making Equipment Foundation Making Machine

Product Description

PProduct Description:The equipment is mainly used in daily chemical care products, biomedicine, food industry, coating ink, nano materials, petrochemical industry, printing and dyeing auxiliaries, paper industry, pesticide and chemical fertilizer, plastic rubber, power electronics, other fine chemicals, etc., especially for material emulsification configuration with high matrix viscosity and solid content.

No	Model	AVE-300
1	Working capacity	300L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scrape mixer
4	Mixing motor power	4KW
5	Mixing frequency	4KW
6	Mixing Speed	0-65rpm
7	Homogenizer	Bottom homogenizer with frequency inverter
8	Bottom Homogenizer power	7.5KW
9	Speed	0-2800rpm (60Hz)
10	Hydraulic lift system	Dual Hydraulic , power: 1.5KW
11	Vacuum pump	Water cycle vacuum pump, power: 1.5KW
12	Control method	Button control/ HMI
13	Frequency converter	Delta/Panasonic/Mitsubishi
14	Electrical components	Schneider/Delixi
15	Jacket	Double jacket,3 layers
16	Tank materials	Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304

Main features: the company produces various types of vacuum emulsification, in which the homogenization system is divided into upper homogenization, lower homogenization, internal and external circulation, and the mixing system is divided into single-phase mixing, two-way mixing and spiral mixing; and it can customize various qualified and high-quality products according to customer requirements; ★ frequency converter is used for speed regulation of mixing, which can meet the production requirements of different processes; ★ homogeneous structure of German technology, with imported double face mechanical seal effect ★ vacuum defoaming makes the materials meet the aseptic requirements, and vacuum suction is used, especially for powder materials to avoid dust flying; ★ the lifting device can be selected for the main pot cover, which is convenient for cleaning and has more significant cleaning effect. The pot body can be selected for dumping; ★ the pot body is composed of three layers of stainless steel imported plate welding, and the tank body and pipeline are mirror polished, fully in line with GMP requirements; ★ according to the process requirements, the tank body can heat and cool the materials, and the heating methods mainly include steam and electric heating; ★ in order to ensure the requirements of the whole customer, the electrical appliances can be imported configuration, which can completely meet the international standards.
Details pictures:
Vacuum emulsifier main pot
Main pot hydraulic lifting, three layers of stainless steel structure, can be manually tipped out. Equipped with material inlet, vacuum gauge, vacuum valve, view mirror, air filter, perfume hopper and so on.Blender
Type: frame oar scrape blender,single way or double way rotating
Material: SUS316L
Speed:0-65rpmElectric control system
Electric control cabinet buttons control or PLC touch screen controller design.
adopt SUS304 Stainless steel plate, thickness:1.5mm
Frequency inverter Delta
Indicator light SchneiderWater & Oil heating
Water pot Working volume: 270L
Oil pot Working volume: 120
Mixing speed: 1440rpm
Pre heating and mixing
