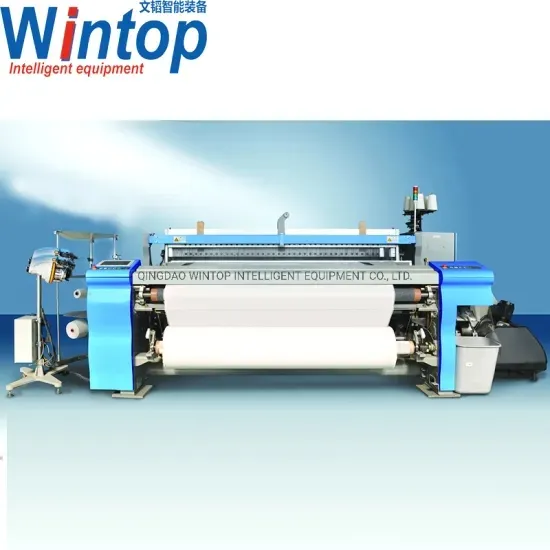

190cm 2nozzle Staubli Cam Shedding Motion Viscose Cloth Making Machine Air Jet Loom Textile Machine

Product Description

190cm 2nozzle staubli cam shedding motion viscose cloth making machine air jet loom textile machine
TOYOTA type air jet loom is widely export to Brazil,India,Indonesia,Uzbekistan,etc. countries with 1000rpm high speed.
WTA810 series high speed air jet loom crystallizes Japanese air jet loom, mechatronic and industrial design concepts, combing and perfecting all details including appearance, frame structure, shedding, beating, filling insertion, let off and take up, to further satisfy customers on the synthetic fiber, cotton, and wool etc.
High speed optimized frame structure achieves even lower vibration during high speed operation well-balanced new beating motion advanced high speed control system with multi CPU Remarkable energy savings the new completely weft insertion system features main nozzle,subnozzle,reed and more Air pressure is reduced and a reduction in Air consumption is achieved Intelligent& user friendly a large function panels improves visibility and operability Internet function and new communications technology realize highly intelligence easily operate by workers due to ergonomics Adopting by beating-up device, new-type wallboard structure, high speed with CPU processing, the running speed can reach 1250RPM
electronic take up and electronic let off
Using four rod or six rod beating-up mechanisms to ensure enough beating time for weaving ,so as to give excellent weaving performance for WTA810 air jet loom
The main nozzle, nozzle combined with high performance solenoid valves ensure excellent weft insertion performance
Warp stop device can quickly find out the broken warp position, thereby improving the weaving efficiency
Optional parts:Computerized control refueling device;Tuck in Device;Weft sensor; Middle cutter

Standard Specifications of Air Jet Loom
1	General:
	Model:	WTA810 high speed air jet loom
		800-1000 Rpm depend on different yarn.
	Nominal reed space:	190cm-360cm
	Reduction reed space:	Reduction reed space from nominal 0 to - 60cm
	Yarn range:	Spun Ne 120 ~ Ne 30
	Weft selection:	2-8 color pick at will
2	Frame:	Lower built, heavy duty frame. Main gears run in oil bath.
		Loom raise-up by inclined base liner for larger loom beam diameter.
3	Driving :	Direct drive with high torque quick start motor.
		Push button operation for Run in one side, Stop, Forward inching, and reverse inching from both sides.
		(Run bottom operatable only by both hands operation)
		One step reverse revolution by one push button.
		Fitted with quick start motor kw 410V 50Hz
		One set of V-belt.
		One pce. of motor pulley.
		quote separately inverter cost.
4	Shedding:	Crank shedding, cam shedding, dobby shedding or Jacquard
5	Let-off:	ROJ
		Fully automatic positive electric let-off system (ELO) with programmed kick-back function.
		Peak tension compensation by positive easing motion with double roll system.
6	Take-up:	ROJ
		Fully automatic positive electric take-up system.
		Programmable pick density setting through touch screen.
		On loom take up and maximum roll diameter 600mm.

our factory and CNC workshop
Our textile exhibition in Indonesia, in shanghai,china,In india and our Suzhou china office for your further perusal.
our certificates and delivery
FAQ :
1)Are you manufacturer:
Yes, we are manufacturer of water jet loom, air jet loom, rapier looms,twisting machine,etc. textile weaving looms. And at present we also increased the mask making machines series lines.
2)Do you attend the exhibition every year?
Yes, we attend the india, indonesia,Parkistan,shanghai china,Uzbekistan,Turkey etc.textile exhibition every year. 3) Do you have office in foreign market?Yes,we have office in suzhou,china; in india, in indonesia, welcome to visit us.
4)What is the delivery time?
We can deliver the looms within one month 300 sets.
5)Do you already register in India government?
Yes, already become the member of ATUFS india.
6)Do you have aftersales team?
Yes, we will arrange the after sales teams on the door when delivered the looms on your side. Any problems of prompt time is within in 2 hours.
