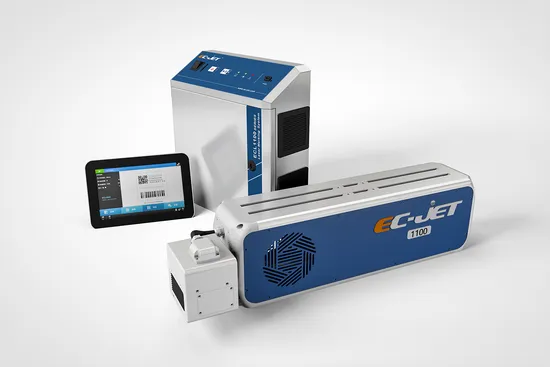

Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
| US$8,500.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ECL6000
Type
Laser Marking System
Usage
Daily Industrial, Chemical Products, Drug, Food, Ceramics, Building Materials
Automatic Grade
Automatic
Principle of Classification
Fiber Laser Marking
Application of Classification
Laser Jet Printer
Working Patterns
On-Line
Supplies
Fiber Laser
Packaging
Box
Laser Type
Fiber
Coding Type
Dynamic Coding/Static Coding
Power Supply
100~240V AC50/60Hz
Operating System
Ec-Jet ′seq′ Operating System
Character Height
0.8mm-300mm
Coding Range
From 70mm to 300mm
Coding Line
as Request Within The Marking Area
Controller Installation
portable or Desktop
Protection Grade
IP55
Language Support
Multi-Language
Transport Package
Carton
Specification
CE
Trademark
EC-JET
Origin
Guangzhou China
HS Code
84433250
Production Capacity
50000/Year
Product Description
Embroidery steel marking charger machineLaser marking is a non-contact printing method that offers advantages over other technologies including mark quality, permanence and fewer consumables. EC-JET's line of laser marking systems includes CO2, Fiber and UV laser sources in different power outputs to address a range of substrates and applications. In addition, EC-JET offers a comprehensive portfolio of laser accessories including lenses and beam turning units to simplify integration into your production lines and maximize the laser's performance.
Schematic diagram
Parameter
| Model | ECL6010 | ECL6020 | ECL6050 | |||
| Laser type | Fiber | |||||
| Coding type | Dynamic coding/static coding | |||||
| Laser power | 10W | 20W | 50W | |||
| Coding line | Setting freely within marking area | |||||
| Character height | 0.8mm-300mm | |||||
| Barcode | A variety of 1D and 2D barcode types | |||||
| Graphics format | BMP/DXF/HPG/JPEG and many other graphics formats | |||||
| Text type | Fixed text, serial number, date, counter, shift code, random code | |||||
| Coding range | Choosing from 70mm to 300mm | |||||
| Interface | 10.4-inch industrial touch screen with high precision | |||||
| Operating system | EC-JET "SEQ" operating system | |||||
| Standard port | Synchronous port, the product detector port, external alarm port, standard USB port, Ethernet port, RS232 port | |||||
| Appearance | Industrial-grade stainless steel casing and industrial-grade aluminum shell | |||||
| Controller installation | Portable or desktop | |||||
| Operating temperature | 5~40ºC | |||||
| Relative humidity (no condensation) | 10~90% | |||||
| Protection grade | IP55 | |||||
| Power supply | 100~240V AC50/60Hz | |||||
| Dimensions | Fiber | |||||
| Laser head:441*97*108 | ||||||
| Controller:510*460*150 | ||||||
| Handheld Touch Screen:272*21*218 | ||||||
Printing samples
CE certificate
Our sales team
Our Factory
If any enquiry ,Please contact us ASAP.
