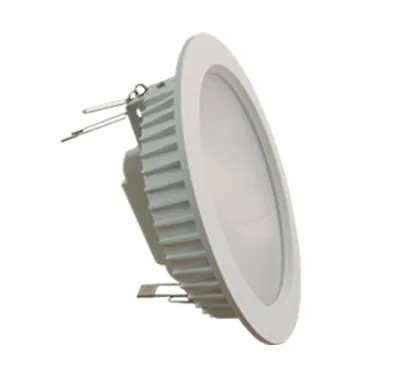

6W/8W/10W/12W/15W/20W/25W/30W Dimmable Epistar COB LED Ceiling Downlight
| US$8.90-9.20 | 1 Piece (MOQ) |
Basic Info.
Model NO.
8W
Power
10W
Color Temperature
Warm White
Lamp Body Material
Chrome
Source Number
Single Plug
Installation
Recessed
Lamp Installation
Screw Holder
Switch Type
Touch On/Off Switch
Warranty
3 Years
Application
Engineering, Home Furnishing, Office Lighting
IP Rating
IP44
Certification
CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Size
3.5′′/4′′/5′′/6′′/8′′inches
CCT
3000K-3500K 4000K-4500K 5500K-6500K
Hole Cut-out Diameter
90mm/120mm/150mm/170mm/200mm
Light Efficiency
120lm/W
CRI
80
PF
90
Working Voltage
AC100-240V AC100-277V 50/60Hz
Beaming Angle
24/38/60
Light Source
SMD COB High Power LED
Housing Material
Aluminum Alloy
Transport Package
White Box and K=K Carton
Specification
6W/8W/10W/12W/15W/20W/25W/30W
Trademark
ATA
Origin
Shenzhen China
HS Code
9405409000
Production Capacity
300, 000/Pieces/Month
Product Description
Product Features1, Compact design with Antiglare ring
2, LM80 approved LED light source and CRI 83Ra
3, TUV, SAA, UL approved power supply
4, CE, RoHS approved
5, 3 years' warranty
Technical Specifications
| Part No. | Power | Dimension(mm) | Input Voltage | CCT | Luminous flux | Hole Cut-out Diameter |
| 3.5'' inches | ||||||
| 3.5'' inches | 6W | φ125*H60 | AC100-240V 50/60Hz | 3000k-3500k | 600LM±100lm | φ90mm |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 4'' inches | ||||||
| 4'' inches | 10W | φ140*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1000LM ± 10% | φ120mm |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 12W | φ140*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1200LM ± 10% | φ120mm | |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 5''inches | ||||||
| 5''inches | 15W | φ180*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1500LM ± 10% | φ150mm |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 6''inches | ||||||
| 6''inches | 20W | φ190*H80 | AC100-240V 50/60Hz | 3000k-3500k | 2000LM ± 10% | φ170mm |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 8''inches | ||||||
| 8''inches | 25W | φ230*H88 | AC100-240V 50/60Hz | 3000k-3500k | 2500LM ± 10% | φ200mm |
| 4000k-4500k | ||||||
| 5500k-6500k | ||||||
| 30W | φ230*H88 | AC100-240V 50/61Hz | 3000k-3501k | 3000LM ± 10% | φ200mm | |
| 4000k-4501k | ||||||
| 5500k-6501k |
Project Case:
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
